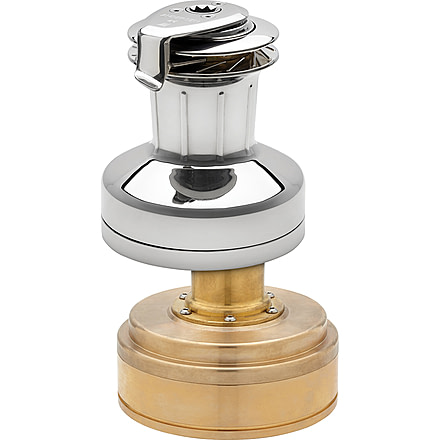

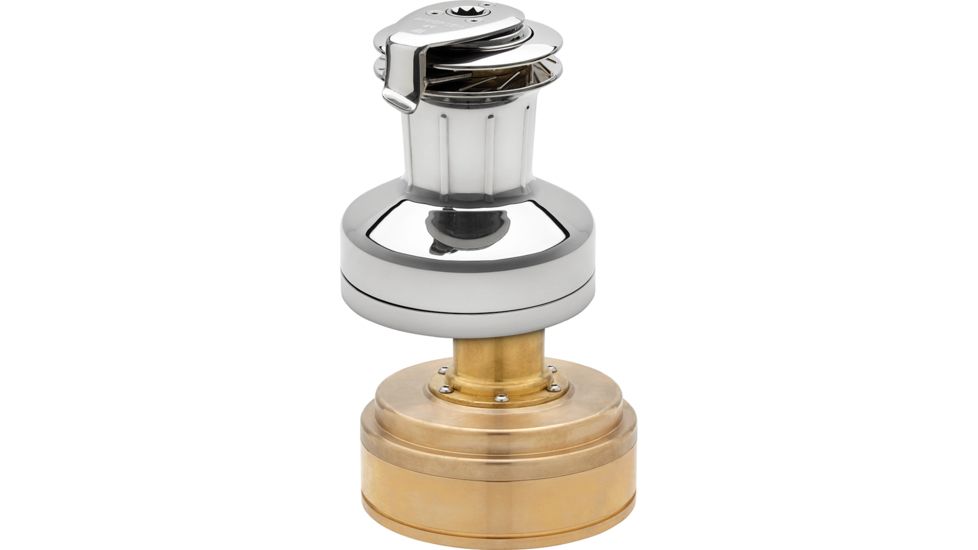

ANDERSEN 46ST Compact Below Deck Electric FS Winch Variable Speed w/ Free S&H — 2 models

Andersen Compact Motor electric winches allow you to hoist and trim sails at the push of a button regardless of physical strength, so any crew member can easily and safely trim sails and control lines

The Andersen Compact Motor electric winch is available in two formats for either Above Deck or Below Deck motor placement. Motor gearbox and controller are integrated into one compact unit with no extra control box necessary. Simplified electrical installation requires just the connection of positive and negative power cables to the motor terminals and the connection of the push button using the included output cable.

The Andersen Compact Motor is a brushless DC motor carefully matched to a low profile planetary gearbox which requires less space for installation, and draws considerably less current than traditional motor/gearbox configurations. Compact Motor electric winches operate at variable speed in proportion to the pressure applied to the push button, for smooth and quiet operation.

Compact Motor winches are supplied with a push button with integrated LED which illuminates when power to the winch system is on. The push button incorporates a hinged safety cover to prevent inadvertent winch operation and is water resistant rated to IP67. The push button also acts with the controller to flash status codes that assist with trouble shooting in the event of overload or where other system protection intervention occurs. A cable for connection of the push button is included for convenient installation.

Specifications for ANDERSEN 46ST Compact Below Deck Electric FS Winch Variable Speed:

Features of ANDERSEN 46ST Compact Below Deck Electric FS Winch Variable Speed

• Highly efficient winch motor.
• Impressive line speed and first rate maximum load.
• Easy to install.
• Winch mounted directly on the motor for deck.

Package Contents:

• ANDERSEN 46ST Compact Below Deck Electric FS Winch Variable Speed
