ANDERSEN Above Deck Variable Speed Compact Motor Electric Conversion Kit w/ Free Shipping — 10 models

The Andersen Compact Motor Above Deck Conversion Kit comes with everything required to convert a manual Andersen to an electric winch. If your Andersen Winch is less than 20 years old, there's a great chance it is already designed to incorporate an electric conversion kit and installation will be very simple. If you are not sure how old your Andersen Winch is, check the base stamp which will indicate the version number and date of manufacture. Click here for more information about where the base stamp is located and how to interpret it. They strongly recommend providing the base stamp when ordering an electric conversion kit to ensure compatibility.

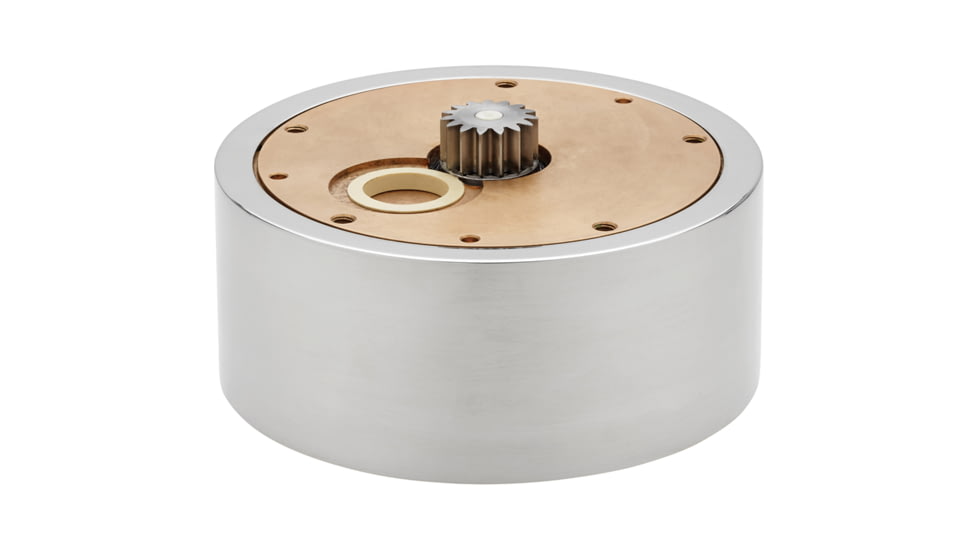

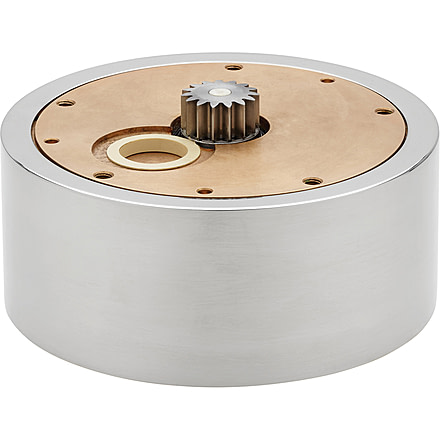

The Andersen Compact Motor is a brushless DC motor carefully matched to a low profile planetary gearbox which requires less space for installation and draws considerably less current than traditional motor/gearbox configurations. Compact Motor electric winches operate at variable speed in proportion to the pressure applied to the push button for smooth and quiet operation.

Specifications for ANDERSEN Above Deck Variable Speed Compact Motor Electric Conversion Kit:

Features of ANDERSEN Above Deck Variable Speed Compact Motor Electric Conversion Kit

• Includes everything required to convert manual Andersen winch to electric.
• Highly efficient brushless motor, 30-50% less power consumption than standard electric motors.
• Variable speed, relative to pressure on button.
• Simplified electrical installation.
• Motor gearbox and controller are integrated into one compact unit, no extra control box necessary.
• Built-in protections including overload and thermal overload protection.

Package Contents:

• ANDERSEN Above Deck Variable Speed Compact Motor Electric Conversion Kit
• Compact Motor Unit with 140mm (5 1/2") control cable.
• RA86600 push button with 190mm (7 1/2") control cable.
• RD877610 control cable 1m (39").
• 877800 Terminal Extension Kit.
• Andersen Compact Motor Circuit Breaker with integrated controller.
• Drain tube.
• Lip seal service kit.
