Armasight Sidekick 640 1x19mm Thermal Monocular TAVT66MN9SIDE101, Magnification: 1 x, Color: Black, Resolution: 640x480 pixels, w/ Free S&H
Tap Tap to Zoom
Code: 0A-THM-SSDK2-TAVT66MN9SIDE101
MPN: TAVT66MN9SIDE101
UPC: 810081911672

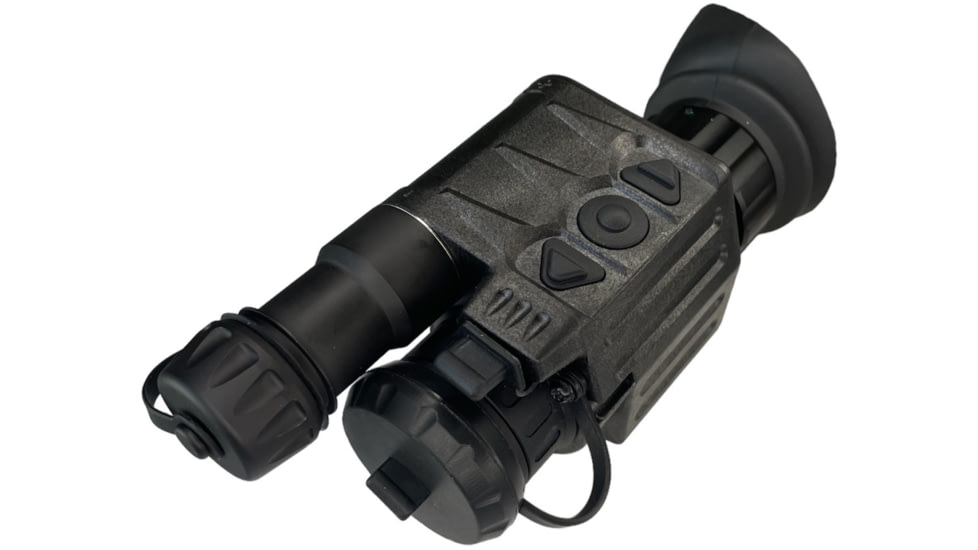

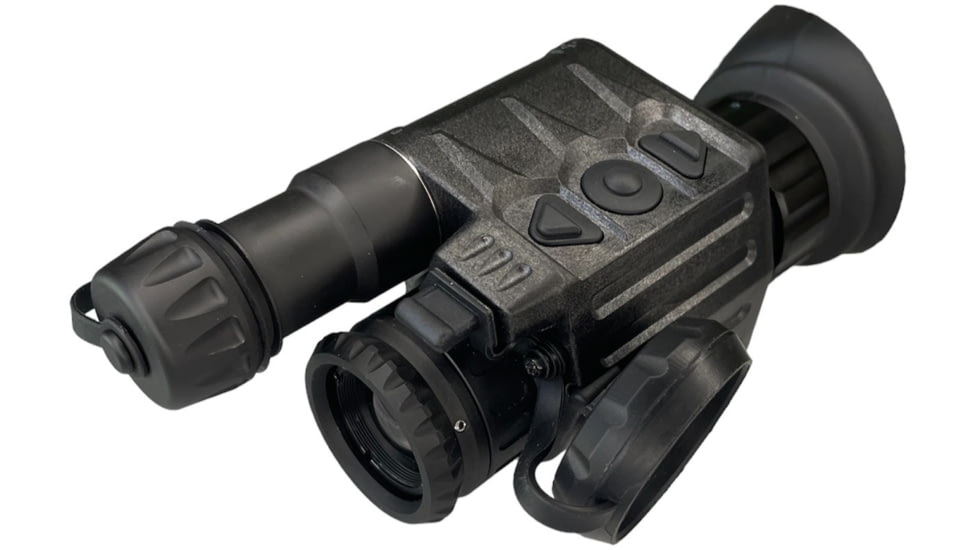

Product Info for Armasight Sidekick 640 1x19mm Thermal Monocular
The Armasight Sidekick 640 mini thermal monocular is the smallest 12-micron thermal optic on the market, boasting a lightning-fast 60Hz frame rate for smooth operation and superb image sharpness. Based on Armasight’s Iron Wolf thermal technology platform, the Armasight 640 features an HD 1024x768 OLED display with icons that display key information like battery status and direction. With multiple color palettes and ergonomic 3-button control, Sidekick 640 thermal is built to simplify your observation and scouting efforts.
Weighing under 250 grams, these lightweight Optics can be used as a handheld device or mounted to a helmet utilizing the integrated Dovetail mini rail for hands-free operation. Built-in one-touch image and video recording, you can capture every moment in a flash. Upgrade your optical setup with the Armasight Sidekick 640 thermal monocular today to experience crisp, clear views 24/7 in even the thickest forestry.
Specifications for Armasight Sidekick 640 1x19mm Thermal Monocular:
| Manufacturer: | Armasight |
| Magnification: | 1 x |
| Color: | Black |
| Resolution: | 640x480 pixels |
| Field of View, Angle: | 24.16-17.37 degrees |
| Objective Lens Diameter: | 19 mm |
| Width: | 2.6 in |
| Length: | 5.7 in |
| Height: | 1.9 in |
| Eye Relief: | 15 mm |
| Battery Type: | 16650, CR123A |
| Weight: | 0.53 lb |
| Water Resistance Level: | IP67 |
| Refresh Rate: | 60 Hz |
| Finish: | Black |
| Condition: | New |
| Lens Material: | Germanium |
| Operating Temperature: | -40 - 122 Fahrenheit, 40 - 50 Celsius |
| Range of Detection: | 709 m on human sized target |
| Noise Equivalent Temperature Difference: | 40 mK NETD |
| Included Accessories: | Lens Cloth, Product Manual, Soft Case, 2 x CR123A Battery, USB-C Cable |
| Battery Quantity: | 1 |
| Diopter Adjustment Range: | -5 - 5 dpt |
| Active On-Screen Graphics and Iconology: | Active On-Screen Graphics and Iconology |
| Zoom Range: | 1x - 4x |
| Dimensions: | 5.7X1.9X2.6 in |
| Memory: | 4 Hours of Video |
| Volume Range: | 111m on a Human Sized Target |
| Display Resolution: | 1024x768 pixels |
Features of Armasight Sidekick 640 1x19mm Thermal Monocular
- Multiple color palettes
- Intuitive 3-button control
- 1 hour runtime on 1 CR123A battery at 20 degrees C
- Image Detail Enhancement
- Dovetail Mini-Rail Included for Helmet Mounting (with optional mount)
- Video Recording and Image Capture
- USB Video Stream
- USB-C Interface for External Devices
- Compass
- Battery Status Indicator
- ULTEM Composite Body and Ergonomic Design
- Designed and Assembled in the USA from U.S. and global components
Package Contents:
- Armasight Sidekick 640 1x19mm Thermal Monocular
- 2 CR123A Battery
- USB-C Cable
- Product Manual
- Lens Cloth
- Soft Case
- Warranty - 3 years w/ registration
Armasight Warranty
The Armasight Warranty is built on trust when it matters most. Every Armasight product is designed for performance and durability, and we stand behind it. If your unit shows defects in materials or workmanship, we’ll repair or replace it—no charge. If we can’t, we’ll provide a product of equal or greater value.
Register your product within 60 days to extend coverage, gain access to updates, and ensure you’re mission-ready at all times.
Coverage:
- Night Vision Devices: 1 Year Standard / 3 Years Extended
- Thermal Imaging Devices: 1 Year Standard / 3 Years Extended
- Laser & Illumination Devices: 1 Year Standard / 3 Years Extended
- Accessories & Components: 6 Months Standard / 1 Year Extended
Your warranty applies to the original owner with proof of purchase. While it does not cover loss, theft, misuse, or cosmetic wear that doesn’t affect performance, you can count on Armasight to stand behind our commitment to quality and mission-ready reliability.
Armasight gear is built to perform—our warranty ensures it stays that way.
