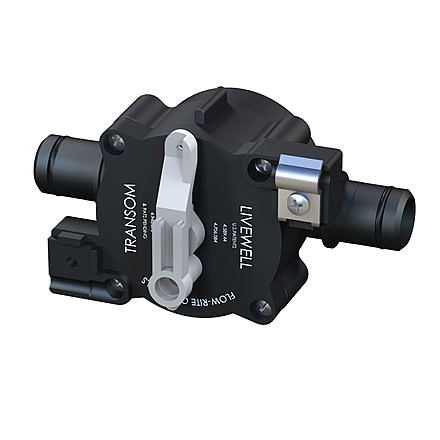

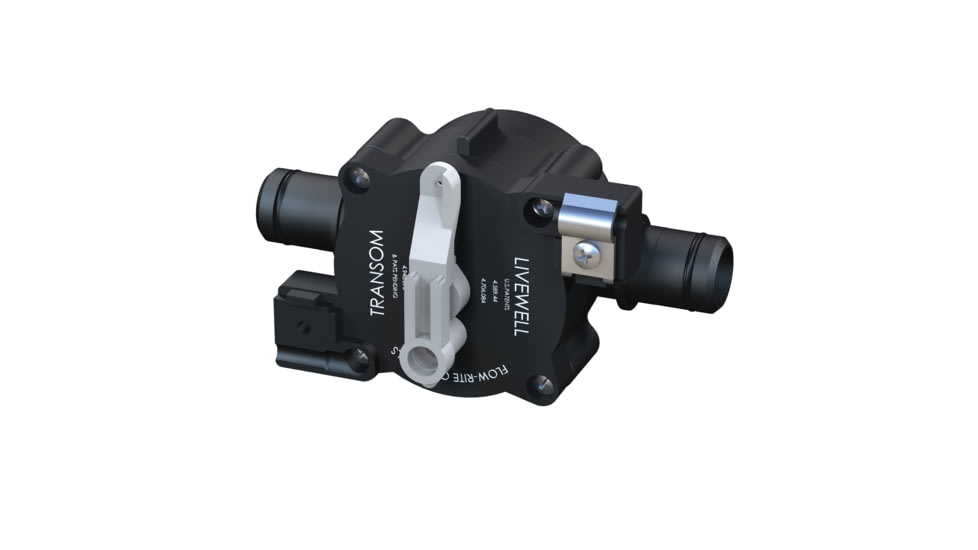

Flow-Rite MV-02-RN01 Flow Rite V2 Two Position Automatic Valve EMPTy/Auto Barbed Rear Non Pef ,

The V2 is our reversible check valve that allows a single pump to not only perform the basic livewell functions necessary to keep your catch alive, but does it in a passive or automatic manner. By mounting the pump to the valve body, the operator only has to decide whether he wants his livewell functioning or empty. When the first fish is caught, place the valve in the AUTO position and turn on the pump. When the boat is off plane the pump will recirculate and aerate the livewell water and simultaneously blend in a portion of fresh lake water. Used livewell water is expelled out the overflow as fresh water enters to prevent any ammonia build up. When the boat is put on plane, the valves check flapper will prevent water loss out the drain, and allow the pump to continue its recirculation duties. Any water lost out the overflow while running on plane is automatically made up when the boat is brought off plane at the next fishing location. All this is accomplished without any operator assistance. To empty, simply turn off the pump and move the valve to the EMPTY position for gravity draining. The barbed version includes a hose clamp and molded bump. The V2 valve has two cable approach options. The cable can approach the valve from either the front/livewell or the rear/transom side of the boat. Operates with the MC-1-02-100 actuator.

Features of Flow-Rite MV-02-RN01 Flow Rite V2 Two Position Automatic Valve EMPTy/Auto Barbed Rear Non Pef

• Ideally used in bassboats, flat boats, and other low profile boats for automatic drain control and livewell management, Accepts mounting of one standard aerator pump for both filling and recirculation, Provides EMPTY / AUTO modes, Operates with the MC-1-02-100 actuator, Cable approach from the rear/transom side of the boat

Package Contents:

• Flow-Rite MV-02-RN01 Flow Rite V2 Two Position Automatic Valve EMPTy/Auto Barbed Rear Non Pef
