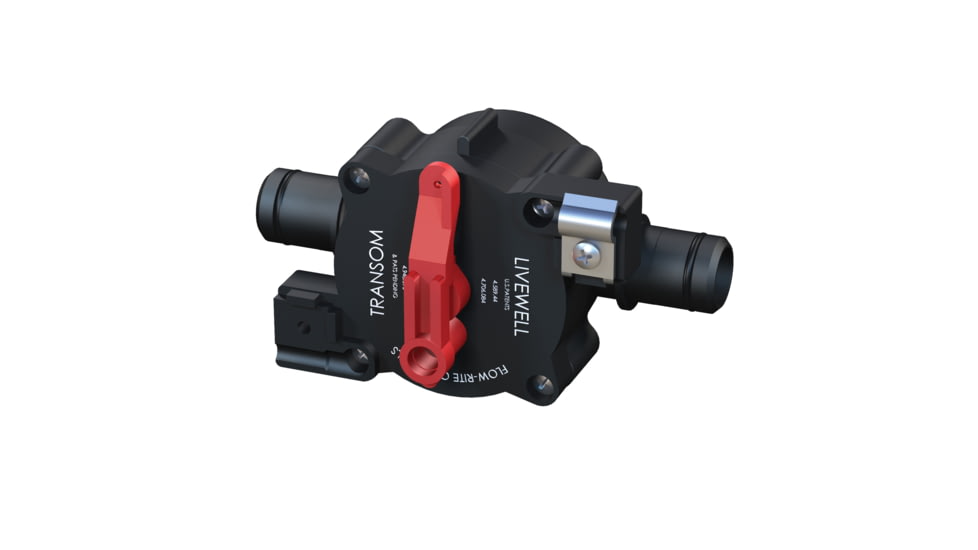

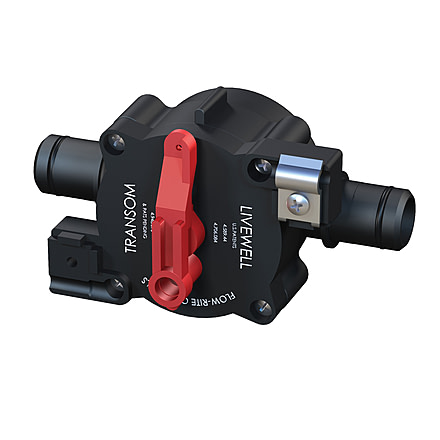

Flow-Rite MV-04-FN01 Flow Rite V4 Three Position Select Valve Fill/EMPTy/Recirc Barbed Front Non Pef ,

The V4 valve allows a standard aerator pump to be mounted directly to the valve body for both filling and recirculation duties, thus eliminating the need for 2 separate pumps and additional plumbing. When in the FILL position, the valve will close the livewell drain side of the valve so the pump has free access to fresh outside water. Once the livewell is full, the valve is placed in the RECIRC position to close the drain and allow full recirculation of the livewell water. Occasionally returning to the FILL position will keep the livewell topped off and freshened. The EMPTY position allows gravity draining with the pump off. Any additional fill or recirculation pump is optional and only becomes a true back-up to the main system pump. Once the system is put into the AUTO position and the pump turned on, all livewell functions are handled so the angler can concentrate on fishing. The barbed version includes a hose clamp and molded bump. The V4 valve has two cable approach options. The cable can approach the valve from either the front/livewell or the rear/transom side of the boat.

Features of Flow-Rite MV-04-FN01 Flow Rite V4 Three Position Select Valve Fill/EMPTy/Recirc Barbed Front Non Pef

• Ideally used in bassboats, flat boats, and other low profile boats for automatic drain control and livewell management, Accepts mounting of one standard aerator pump for both filling and recirculation, Includes closed recirculation mode which allows addition of optional pump-out system, Provides FILL / EMPTY / RECIRC modes; Operates with the MC-1-04-100 actuator, Cable approach from the front/livewell side of the boat

Package Contents:

• Flow-Rite MV-04-FN01 Flow Rite V4 Three Position Select Valve Fill/EMPTy/Recirc Barbed Front Non Pef
