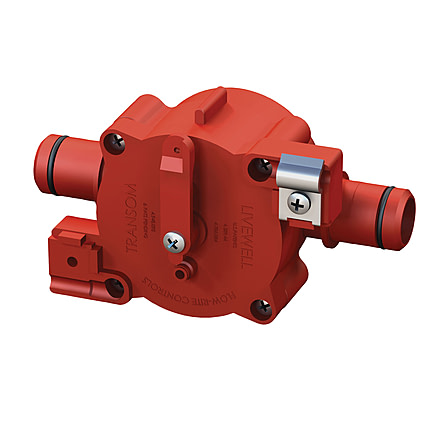

Flow-Rite MV-11-FN01 Flow Rite V1 Two Position Shut Off Valve Open/Closed Qwik Lok Front 3/4" ,

The V1 valve provides remote drain control and eliminates the need for drain plugs and standpipes. A short 60 cable throw provides more support, strength, and smoothness than long 90 throws used with conventional valves. Features dual seals for positive shut-off in the "CLOSED" position and a straight unrestricted flow path in the "OPEN" position. This valve is non-directional. The Qwik-Lok version features O-ring seals for use with Qwik-Lok quick connect sockets (MA-014). Qwik-Lok enables the valve or complete valve pump assembly to be removed for service with two fingers. No tools are required. Operates with the MC-1-01-100 actuator.

Features of Flow-Rite MV-11-FN01 Flow Rite V1 Two Position Shut Off Valve Open/Closed Qwik Lok Front 3/4"

• Provides remote drain control and eliminates the need for drain plugs and standpipes, A short 60 cable throw provides more support, strength, and smoothness than long 90 throws used with conventional valves, Features dual seals for positive shut-off in the "CLOSED" position, Features straight unrestricted flow path in the "OPEN" position, The V1 valve is unidirectional and, although the ports are marked TRANSOM and LIVEWELL, they can be installed in either position

Package Contents:

• Flow-Rite MV-11-FN01 Flow Rite V1 Two Position Shut Off Valve Open/Closed Qwik Lok Front 3/4"
