Garmin Airmar CM599LHW 1-3kW Pocket Mounted Transducer, 28-60 & 150-250kHz 010-12188-20, Color: Black, Frequency Band: 150 kHz, Cable Length: 70 ft, w/ Free Shipping

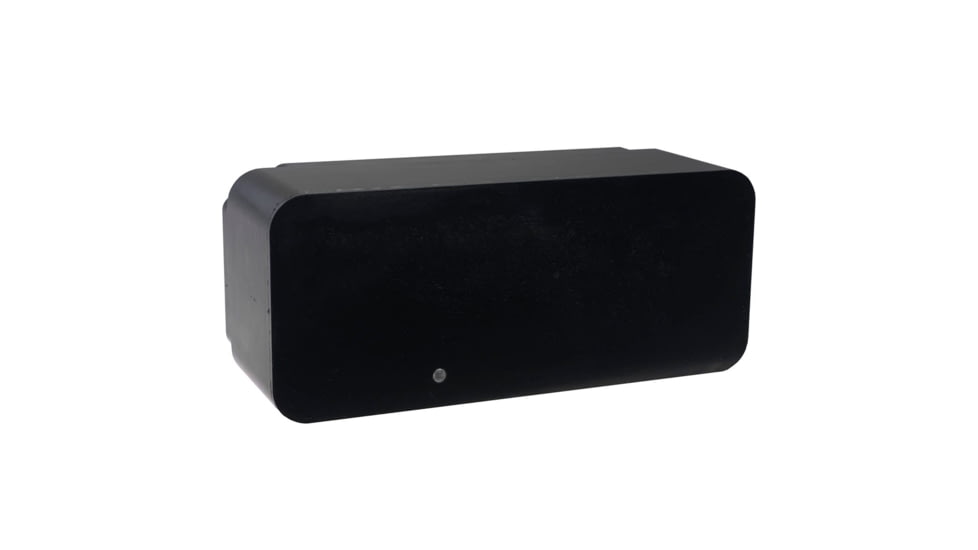

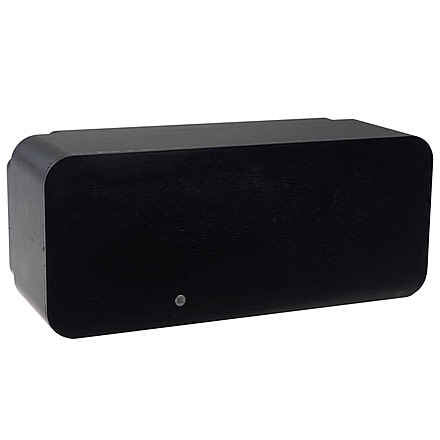

Airmar CM599LHW 1-3kW Pocket Mounted Transducer 28-60 & 150-250kHz

This pocket mounted transducer uses very narrow beams and low frequencies and wide beams for high frequencies to send depth and temperature to your Garmin Marine Network.

A pocket version of the R599LH this 1 to 3 kW bare wire plastic transducer has a maximum depth of 10000 feet; an operating frequency of 28 to 60 kHz and 150 to 250 kHz; and a beamwidth of 9x23 degrees or a constant 25 degrees. The pocket mount is installation dependent.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

Specifications for Garmin Airmar CM599LHW 1-3kW Pocket Mounted Transducer, 28-60 & 150-250kHz:

Features of Garmin Airmar CM599LHW 1-3kW Pocket Mounted Transducer, 28-60 & 150-250kHz

• Supported Deadrise/Transom Angles: Installtion Dependent
• Frequency: CHIRP Low (28-60 kHz) & CHIRP High Wide (150-250 kHz)
• Pins: Bare Wire
• Fairing Block Included: No
• Chirp: Low/High Wide
• Cable Length (Feet): 70'
• Imagining: Standard
• Mounting Style: Pocket
• Speed Included: No
• Temperature: Yes
• Power: 1/3 kW

Package Contents:

• Garmin Airmar CM599LHW 1-3kW Pocket Mounted Transducer, 28-60 & 150-250kHz
