Garmin B265LM Bronze Thru-Hull Mount Transducer w/Depth & Temperature 010-11647-20, Color: Bronze, Frequency Band: 65 kHz, Cable Length: 39 ft, w/ Free Shipping

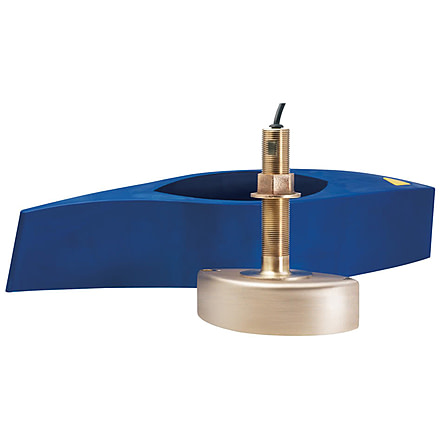

B265LM Bronze Thru-Hull Mount Transducer with Depth & Temperature

Garmin's best performing 1 kW thru-hull transducer this bare wire mount performs well in deep water and has exceptional bottom and water column detail.

This transducer has a depth of 3000 ft; an operating frequency of 42 to 65 kHz and 85 to 135 kHz; a beamwidth of 16 to 25 degrees and 11 to 16 degrees; and a 0 to 20 degree deadrise.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

Compatible Devices:

GSD 26 CHIRP Professional Sonar Module

Specifications for Garmin B265LM Bronze Thru-Hull Mount Transducer w/Depth & Temperature:

Features of Garmin B265LM Bronze Thru-Hull Mount Transducer w/Depth & Temperature

• Cable Length (Feet): 39'
• Chirp: Low/Medium
• Fairing Block Included: No
• Frequency: CHIRP Low (42-65 kHz) & CHIRP Mid (85-135 kHz)
• Imagining: Standard
• Mounting Style: Thru-Hull
• Pins: Bare Wire
• Power: 1 kW
• Speed Included: No
• Supported Deadrise/Transom Angles: 0 - 20
• Temperature: Yes

Package Contents:

• Garmin B265LM Bronze Thru-Hull Mount Transducer w/Depth & Temperature
