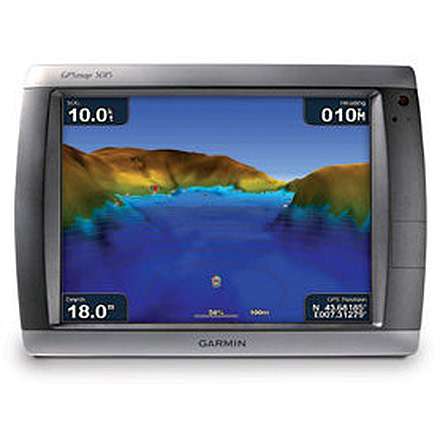

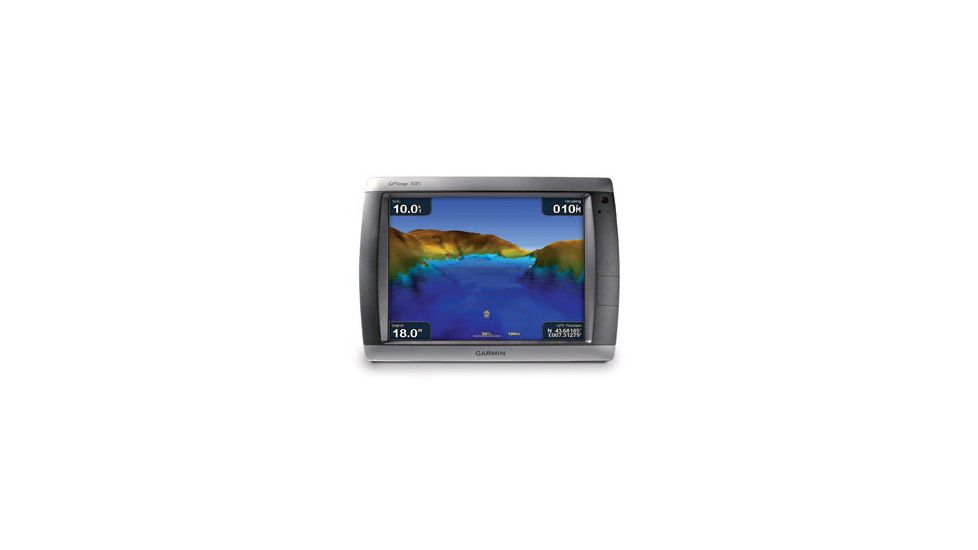

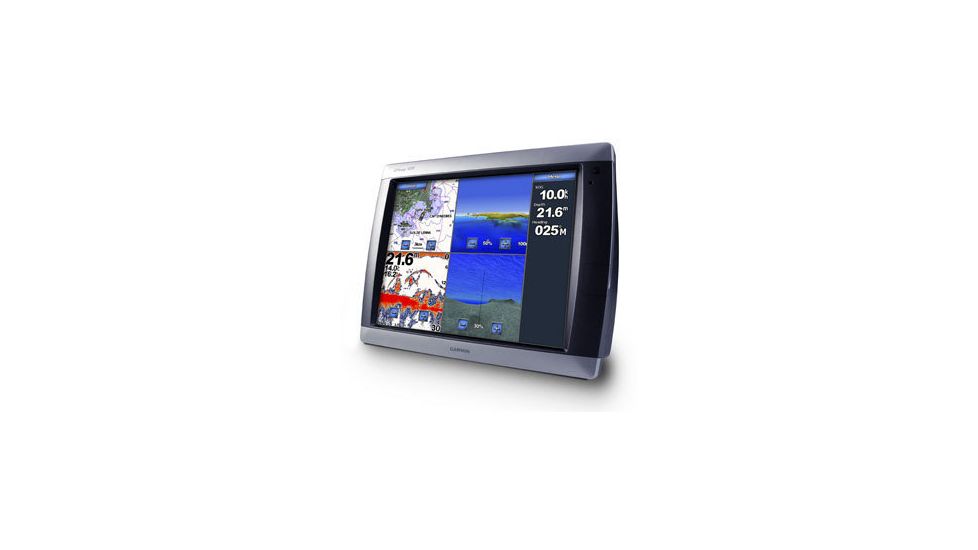

Garmin Chartplotters GPSMAP5015,with GPS17x sensor, worldwide satellite imagery, g2 Vision compatible 010-00692-10 ,

The Garmin GPSMAP 5015 010-00692-10 sold by us is an 100% Genuine Garmin Fishfinders product that comes with a Garmin manufacturer's warranty. Garmin GPSMAP 5015 010-00692-10 will fulfill all of your specific needs as Garmin products are trusted and considered to be the best Fishfinders navigation systems all around the world. Buying a Garmin GPSMAP 5015 010-00692-10 from us means getting the best price and purchasing from a trusted source - we're an Authorized Garmin Dealer for all Garmin as well as running and cycling Fishfinders, Fishfinders, radios, and hundreds of Garmin GPS Accessories, software and maps.

The largest network plotter display in the Garmin marine line, the GPSMAP 5015 offers true “big picture” navigation.

This chartplotter features the same menu-driven touchscreen found on its 5000-series counterparts. A satellite-enhanced worldwide basemap and a whopping 15" screen make navigation as easy as pointing your finger. By connecting to the Garmin Marine Network, you can add sonar, radar and weather. And for even more advanced features, you can add the optional BlueChart g2 Vision card.

View Detailed Graphics and Video

The GPSMAP 5015 features a worldwide basemap with high-quality satellite images in place of more traditional maps. For even more detail, you can add maps easily with the SD card slot without having to connect to a computer.

The 5015’s huge XGA screen displays graphics with crisp, video-quality resolution. To keep tabs on your engine room or another area of your boat, you can also connect a live video feed with the 5015's video input option.

Add Extras with BlueChart g2 Vision

With optional BlueChart g2 Vision SD cards, you can add a whole new dimension of exceptional features to your chartplotter.

• Choose to view 3D map information at "mariner's eye view" above the waterline or "fish eye view" below the water.
• High-resolution satellite images and aerial photographs help you orient yourself in unfamiliar areas.
• Auto Guidance technology searches through all relevant charts to create a route you can actually follow — one that avoids obstacles, shallow water, buoys and other obstructions.

Connect to the Garmin Marine Network

The 5015 connects easily to the high-speed Garmin Marine Network, so you can interface with additional MFDs and add remote sensors. Once connected, you can share information between the 5015 and other chartplotters on your boat. You can also add high-powered radar, sonar, and XM satellite weather and radio to your system.

Specifications for Garmin Chartplotters GPSMAP5015,with GPS17x sensor, worldwide satellite imagery, g2 Vision compatible 010-00692-10:

Physical & Performance
Unit dimensions, WxHxD:		15.5" x 11.7" x 5.7" (39.4 x 29.7 x 14.5 cm)
Display size, WxH:		9" x 12", 15" diagonal (22.9 x 30.5 cm, 30.7 cm diagonal)
Display resolution, WxH:		1024 x 768 pixels
Display type:		Touchscreen XGA display
Weight:		11.9 lb (5.4 kg)
Battery:		none
Battery life:		none
Waterproof:		yes (IPX7)
Antenna:		external
NMEA input/output:		NMEA 0183, NMEA 2000
Maps & Memory
Basemap:		yes
Preloaded maps:		no
Ability to add maps:		yes
Built-in memory:		none (cannot load maps to internal memory)
Accepts data cards:		SD card slot (BlueChart g2 Vision cards sold separately)
Waypoints/favorites/locations:		1,500
Routes:		20
Track log:		10,000 points; 20 saved tracks
Features
Garmin radar compatible:		yes
Garmin sonar compatible:		yes
CANet compatible:		no
Garmin Marine Network compatible:		yes
Touchscreen:		yes
Supports AIS (tracks target ships' position):		yes
Supports DSC (displays position data from DSC capable VHF radio):		yes
Audible alarms:		yes
Tide tables:		yes
Hunt/fish calendar:		no
Sun and moon information:		yes
3-D map view:		yes (with optional BlueChart g2 Vision card)
Auto Guidance:		yes (with optional BlueChart g2 Vision card)
Automatic routing (turn by turn routing on roads):		no
XM WX Weather & Radio for U.S. compatible:		yes
Voice prompts (e.g. "Turn right in 500 ft."):		no
Speaks street names (e.g. "Turn right ON ELM STREET in 500 ft."):		no
Remote control:		yes (optional)
Headphone jack/audio line-out:		no
Audio/video input/output:		yes
Portable:		no
Automotive/motorcycle-friendly:		no
Additional:		Interface Inputs/Outputs 3 built-in network ports, 4 NMEA 0183 inputs, 2 NMEA 0183 outputs, and NMEA 2000; 2 video inputs for onboard cameras, 1 XGA PC monitor video output

Garmin Chartplotters GPSMAP5015,with GPS17x sensor, worldwide satellite imagery, g2 Vision compatible 010-00692-10 Package Contents:

• GPSMAP 5015
• GPS 17x antenna
• Protective front cover
• Top & bottom snap covers
• Video cable assembly
• Power cable assembly
• NMEA 0183 cable
• NMEA 2000 drop cable
• NMEA 2000 power cable
• NMEA 2000 T-connector & terminator kit
• Flush mount hardware
• Flush mount gasket
• Marine grommet kit
• Manual case with owner's manual on disk
• Quick reference guide
• Installation instructions
