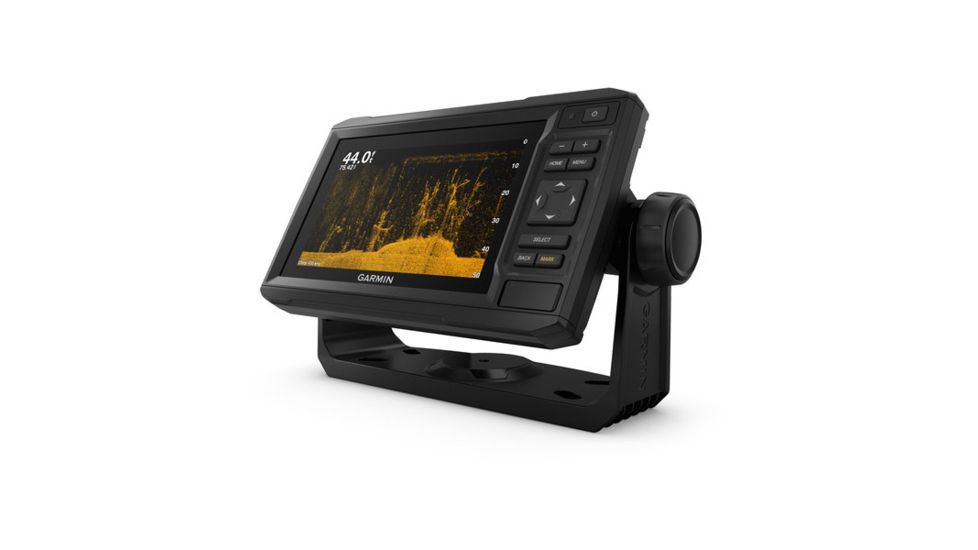

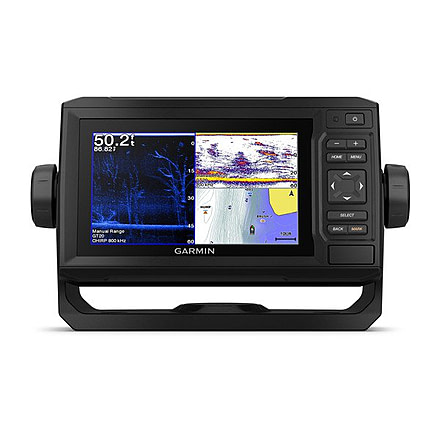

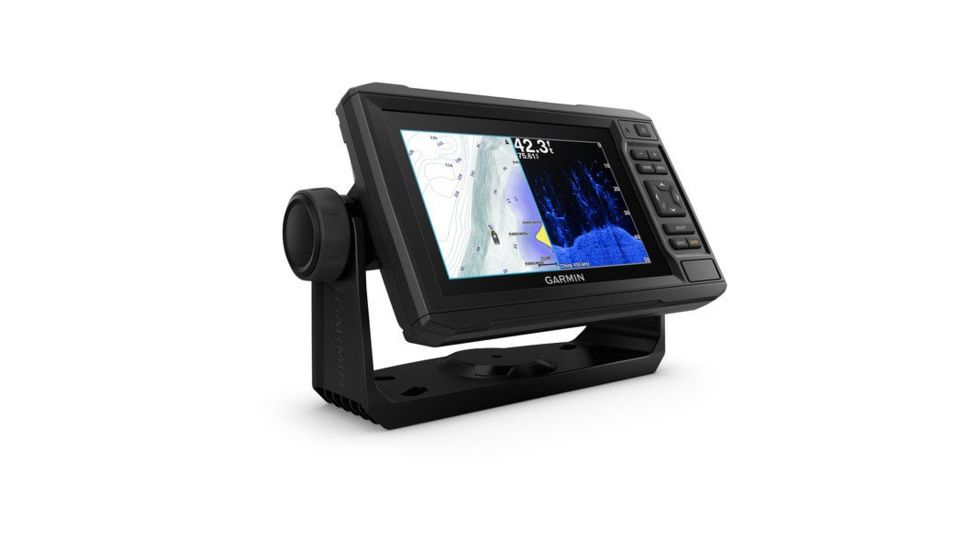

Garmin ECHOMAP Plus 63cv, US LakeVu g3, w/GT20 xdcr 010-01889-05,

The Combo with Connections

Bright, sunlight-readable 6 combo

Includes GT20 transducer for Garmin CHIRP traditional sonar plus CHIRP ClearVu scanning sonar with transom and trolling motor mounts

Preloaded LakeVu g3 maps with integrated Navionics data cover more than 17,000 lakes with up to 1 contours

Built-in Quickdraw Contours mapping software instantly creates personalized fishing maps on-screen with 1 contours as you fish

Use built-in Wi-Fi to pair with the free ActiveCaptain app for access to OneChart, smart notifications, Garmin Quickdraw Community data and more

Share waypoints and routes with other ECHOMAP or STRIKER units

Features of Garmin ECHOMAP Plus 63cv, US LakeVu g3, w/GT20 xdcr

• General
• Physical dimensions:8.6" x 5.1" x 2.6" (21.8 x 13.0 x 6.2cm)
• Display size:5.4" x 3.1"; 6.2" diagonal (13.7 x 7.7 cm; 15.2 cm diagonal)
• Display resolution:480 x 800 pixels
• Display type:WVGA display
• Weight:1.6 lbs (0.7 kg)
• Water rating:IPX7
• Power consumption:12W
• Antenna:Internal or external over NMEA 0183
• Mounting options:Bail or flush
• Receiver:5 Hz
• Garmin Marine Network ports:None
• Maps & Memory
• Preloaded maps:LakeVu g3 (inland maps)
• Accepts data cards:1 microSD card; 32 GB maximum card size
• Waypoints:5,000
• Routes:100
• Track log:50,000 points; 50 saved tracks

Package Contents:

• Garmin ECHOMAP Plus 63cv, US LakeVu g3, w/GT20 xdcr
• ECHOMAP Plus 63cv with LakeV g3 for U.S.
• GT20-TM transducer
• Power/data cable
• NMEA 2000 4-pin to 5-pin adapter cable
• Tilt/swivel mount with quick release cradle
• Flush mount
• Protective cover
• Hardware
• Documentation
