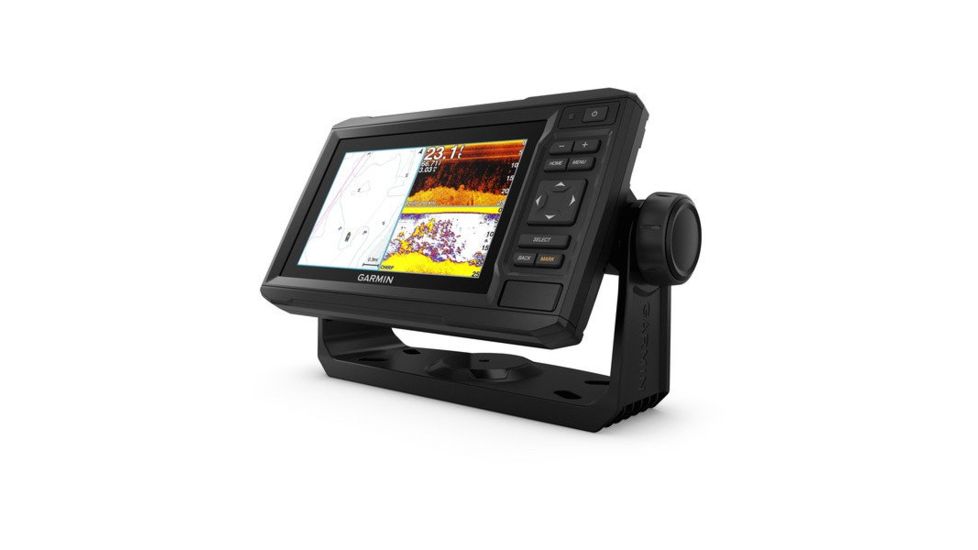

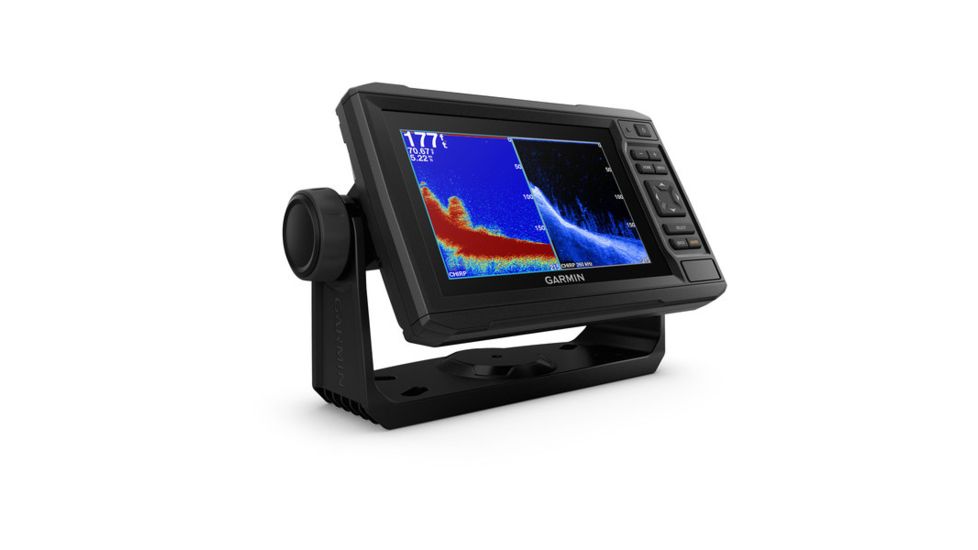

Garmin ECHOMAP Plus 64cv, US Offshore g3, w/GT23 xdcr 010-01890-05,

The Combo with Connections

Bright, sunlight-readable 6 combo

Includes GT23 transducer for Garmin CHIRP traditional sonar plus CHIRP ClearVu scanning sonar with transom and trolling motor mounts

Preloaded BlueChart g3 charts with integrated Navionics data for the coastal U.S.

Built-in Garmin Quickdraw Contours mapping software instantly creates personalized fishing maps on-screen with 1 contours as you fish

Use built-in Wi-Fi to pair with the free ActiveCaptain for access to OneChart, smart notifications, Garmin Quickdraw Community data and more

Share waypoints and routes with other ECHOMAP or STRIKER units

Features of Garmin ECHOMAP Plus 64cv, US Offshore g3, w/GT23 xdcr

• General
• Physical dimensions:8.6" x 5.1" x 2.6" (21.8 x 13.0 x 6.2cm)
• Display size:5.4" x 3.1"; 6.2" diagonal (13.7 x 7.7 cm; 15.2 cm diagonal)
• Display resolution:480 x 800 pixels
• Display type:WVGA display
• Weight:1.6 lbs (0.7 kg)
• Water rating:IPX7
• Power consumption:12W
• Antenna:Internal or external over NMEA 2000
• Mounting options:Bail or flush
• Receiver:5 Hz
• Garmin Marine Network ports:None
• Maps & Memory
• Preloaded maps:BlueChart g3 (coastal maps)
• Accepts data cards:1 microSD card; 32 GB maximum card size
• Waypoints:5,000
• Routes:100
• Track log:50,000 points; 50 saved tracks

Package Contents:

• Garmin ECHOMAP Plus 64cv, US Offshore g3, w/GT23 xdcr
• ECHOMAP Plus 64cv with BlueChart g3 for U.S.
• GT23M-TM transducer
• Power/data cable
• Tilt/swivel mount with quick release cradle
• Flush mount
• Protective cover
• Hardware
• Documentation
