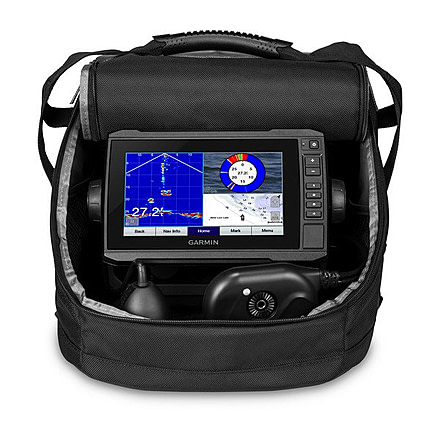

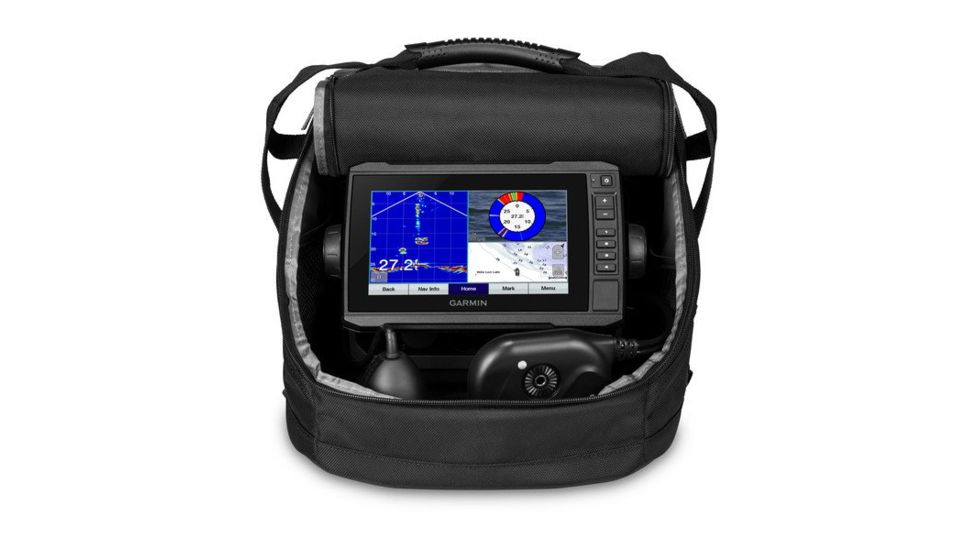

Garmin ECHOMAP Plus 73cv Panoptix PS22 Ice Bundle w/ GT10, NA 010-01893-20,

Our Premium Ice Fishing Bundle

Includes ECHOMAP Plus 73cv combo with 3 types of sonar: narrow beam Garmin CHIRP traditional and a Panoptix PS22 transducer with LiveVu Forward and LiveVu Down

GT10HN-IF ice fishing transducer with Garmin CHIRP traditional sonar and narrow beam angle (8 to 16 degrees) for precise fish and jig detection

Preloaded LakeVu HD maps provide industry-leading detail on more than 17,000 lakes

Ability to create custom combination screen to include flasher, map and Panoptix views

Rugged, portable carrying case fits all included parts and is perfect for ice fishing

Features of Garmin ECHOMAP Plus 73cv Panoptix PS22 Ice Bundle w/ GT10, NA

• General
• Physical dimensions:9.8"x5.5"x2" (25cmx13.9cmx5.1cm)
• Display size:6.0"x3.6"; 7.0" diagonal(15.2 x 9.1 cm; 17.8cm diagonal)
• Display resolution:800 x 480 pixels
• Display type:WVGA display
• Weight:1.7 lbs. (0.77kg)
• Water rating:IPX7
• Power consumption:6.2W
• Antenna:Internal or external over NMEA 2000
• Receiver:5 Hz
• Garmin Marine Network ports:1 Panoptix port
• Maps & Memory
• Preloaded maps:LakeV HD (inland maps)
• Accepts data cards:1 microSD card; 32 GB maximum card size
• Waypoints:5,000
• Routes:100
• Track log:50,000 points; 50 saved tracks

Package Contents:

• Garmin ECHOMAP Plus 73cv Panoptix PS22 Ice Bundle w/ GT10, NA
• ECHOMAP Plus 73cv
• Panoptix PS22-TR transducer
• Panoptix ice fishing mount
• GT10HN-IF transducer
• Tilt/swivel mount
• Power cable
• Documentation
• Portable fishing kit
• Bag with handle
• Foam float
• Transducer adapter cable
• Cable grommet
• Rechargeable battery
• Battery charger
