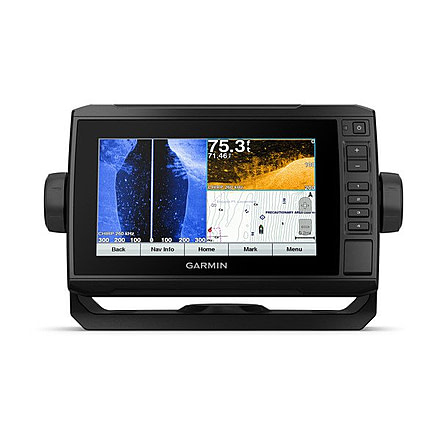

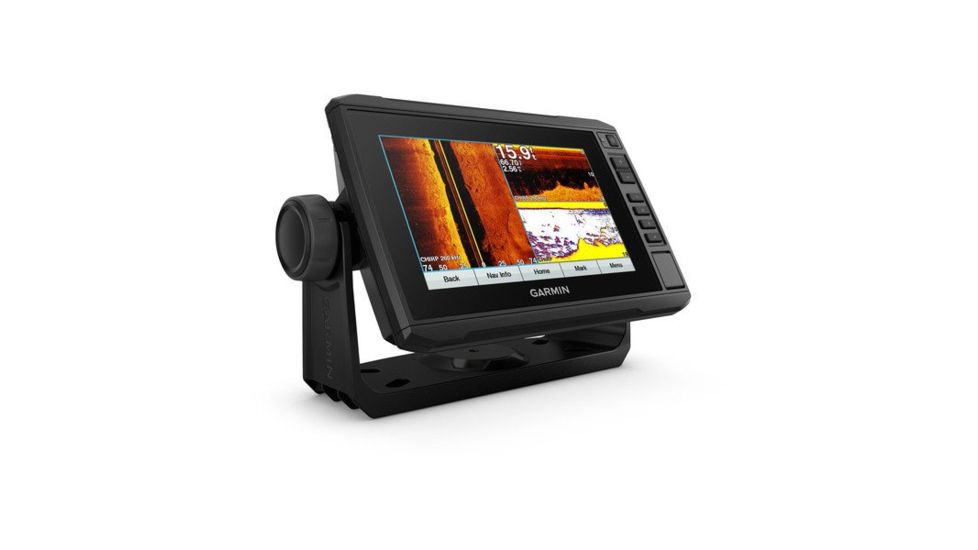

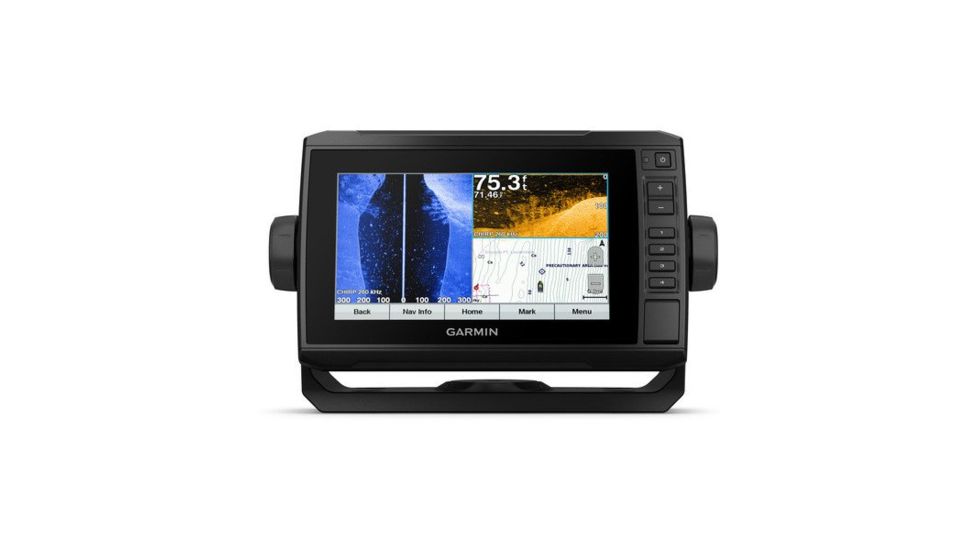

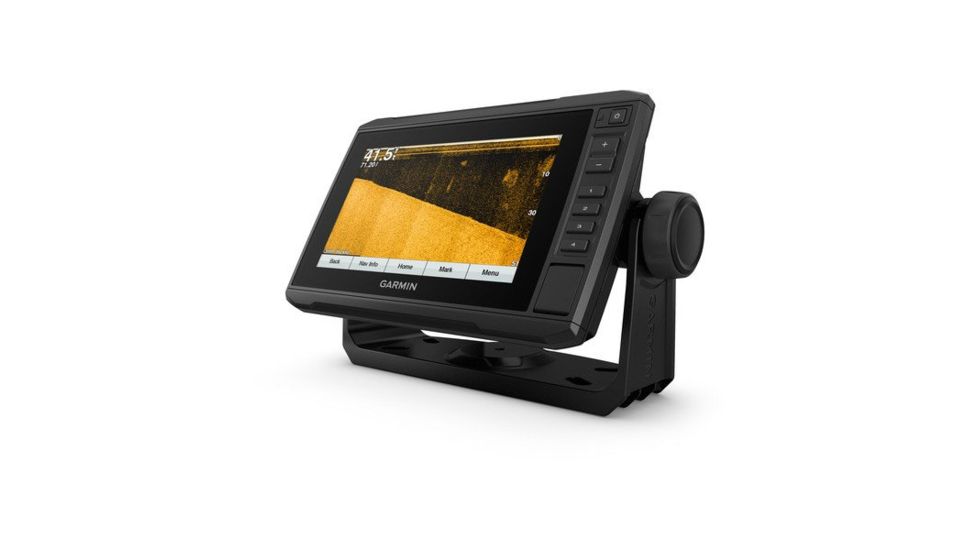

Garmin ECHOMAP Plus 74sv, US Offshore g3, w/o XDCR 010-01898-00,

The Combo with Connections

Bright, sunlight-readable 7 keyed-assist touchscreen combo

Built-in support for Garmin CHIRP traditional sonar plus CHIRP ClearVu and CHIRP SideVu scanning sonars and compatible with Panoptix all-seeing sonar (transducers sold separately)

Preloaded BlueChart g3 charts with integrated Navionics data for the coastal U.S.

Built-in Garmin Quickdraw Contours mapping software instantly creates personalized fishing maps on-screen with 1 contours as you fish

Use built-in Wi-Fi to pair with the free ActiveCaptain app for access to OneChart, smart notifications, Garmin Quickdraw Community data and more

Share waypoints and routes with other ECHOMAP or STRIKER units

Features of Garmin ECHOMAP Plus 74sv, US Offshore g3, w/o XDCR

• General
• Physical dimensions:9.8" x 5.5" x 2.0" (25 x 13.9 x 5.1 cm)
• Display size:6.1" x 3.4"; 7.0" diagonal (15.5 x 8.6 cm; 17.8 cm diagonal)
• Display resolution:400 x 800 pixels
• Display type:WVGA display
• Weight:1.7 lbs.(0.77kg)
• Water rating:IPX7
• Power consumption:15W
• Antenna:Internal or external over NMEA 2000
• Mounting options:Bail or flush
• Receiver:5 Hz
• Garmin Marine Network ports:1 Panoptix port
• Maps & Memory
• Preloaded maps:BlueChart g3 (coastal maps)
• Accepts data cards:1 microSD card; 32 GB maximum card size
• Waypoints:5,000
• Routes:100
• Track log:50,000 points; 50 saved tracks

Package Contents:

• Garmin ECHOMAP Plus 74sv, US Offshore g3, w/o XDCR
• ECHOMAP Plus 74sv with BlueChart g2 for U.S.
• Power/data cable
• Tilt/swivel mount with quick release cradle
• Flush mount
• Protective cover
• Hardware
• Documentation
