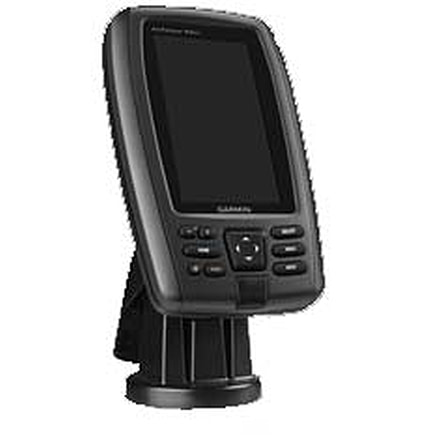

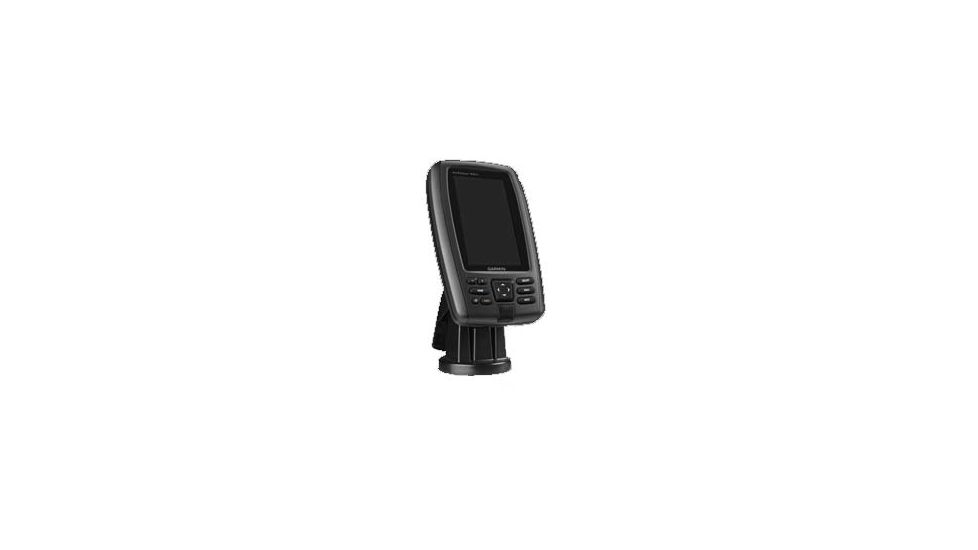

Garmin echoMAP Sonar 45DV with Transducer 010-01282-20,
Tap Tap to Zoom
Product No Longer Available
Unfortunately Garmin echoMAP Sonar 45DV with Transducer is not listed by CampSaver.You can also explore other items in the Fishing, Boating & Marine, Fishing Marine Electronics, Fishfinders yourself to try and find the perfect replacement for you!
Product Info for Garmin echoMAP Sonar 45DV with Transducer
Explore the lakes of Canada and expand your sonar capabilities by viewing your favorite freshwater spots using the Garmin echoMAP Sonar 45DV with Transducer. Fitted with DownVu technology, this Sonar System from the technology specialists at Garmin allows you a clear view of up to 750-feet beneath your boat, showing you precisely where the fish are hiding. The 5 Hz Internal GPS in the Garmin echoMAP Lake Sonar 45DV with Transducer offers a consistent view of your location by updating five times every second. Sonar recording and history rewind keeps track of your sonar experience, and the Garmin echoMAP Canadian Sonar 45DV with Transducer even allows you to share data between devices, ensuring that on your next fishing trip, the fish come to you.
Specifications for Garmin echoMAP Boating Sonar 45DV with Transducer:
| Dimensions: | 4.0" x 6.6" x 1.8" (10.2 x 16.8 x 4.6 cm) |
| Weight: | 0.9 lbs (0.4 kg) |
| Water Rating: | IPX7 |
| Power Supply Range: | 10V - 20V DC |
| Typical Power Consumption: | 5 W |
| Digital Size (diagonal): | 4.3" |
| Display Resolution: | 480 x 272 WQVGA |
| Preloaded Maps: | Canada LakeVu HD |
| Internal 5 Hz GPS Receiver: | Y |
| Dual Frequency (50/200 kHz) capable: | Y |
| Dual Beam (77/200 kHz) capable: | Y |
| DownVu capable: | Y |
| SideVu capable: | N |
| Trasmit Power: | Y, 500 W (RMS) / 4,000 W (peak to peak) |
| Frequencies Supported (kHz): | Traditional - 50/77/200; DownVu - 260 or 455 |
| Maximum Depth Capabilities: | Y, 2,300 ft. at 77 kHz, freshwater |
| Accepts MicroSD Card: | Y, for optional mapping and user data storage |
| NMEA 0183 Compatible: | Y, 1 input port/1 output port |
| AIS and DSC support: | Y, with NMEA 0183 |
| User Data Sharing Cable Compatible: | Y |
| Sonar History Rewind: | Y |
| Sonar Recording: | Y |
| Bottom Lock: | Y |
| Water Temperature Log/Graph: | Y |
| Tide Tables: | Y |
| Mounting Options: | Bail/Flush |
| Gift Box Dimensions: | 10.2" x 8.2" x 5.4" (259 x 209 x 136 mm) |
Features of Garmin echoMAP GPS Sonar 45DV with Transducer:
- Easy to install and easy to use
- Sunlight readable screen with auto-dimming display and backlit keypad
- Preloaded Canada LakeVu HD
- Built-in 500 W (RMS) traditional HD-ID sonar and DownVu scanning sonar capabilities that allows you to see up to 750 feet below your boat
- Quick release mount allows for quick install and removal
- 5 Hz Internal GPS that updates 5x a second
- Sonar recording can be saved and returned to on your home computer
- Sonar history rewind
- Ability to share user data between devices
- Additional maps and charts available
Package Contents:
- Garmin echoMAP Mountable Sonar 45DV with Transducer
- echoMAP 45dv with Canada LakeVu HD
- Power/data cable
- Quick-release mount
- GT20-TM transducer (77/200kHz/DownVu, 4-pin)
- Trolling motor mount
- Hardware
- Documentation
Be the first to review this product
Garmin echoMAP Sonar 45DV with Transducer Unavailable & Discontinued Models
List of Unorderable Models
- Garmin echoMAP 45dv with transducer 010-01282-20 , MPN: 010-01282-20 , UPC: 753759124496 , Code: GA-FH-010-1282-20
