Product No Longer Available
Unfortunately Garmin echoMAP Sonar 52DV is not listed by CampSaver.You can also explore other items in the Camp & Hike, Fishing, Boating & Marine, Camping Essentials, Electronics & Power, Fishing Marine Electronics, GPS yourself to try and find the perfect replacement for you!

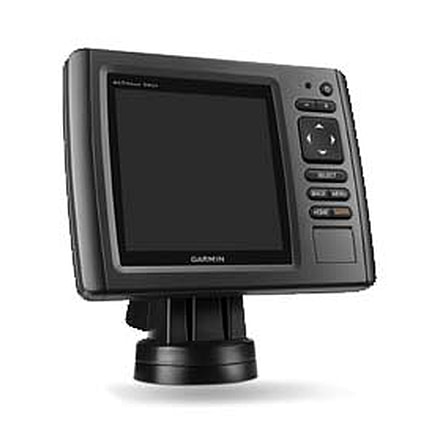

Product Info for Garmin echoMAP Sonar 52DV
Examine the water around you and feel well-informed on your next fishing trip when you use the Garmin echoMAP Sonar 52DV with your favorite boat. Perfect for fishing with friends, this Sonar System from Garmin includes a variety of ways to keep track of your sonar activity, including sonar recording, sonar history rewind, and the ability to share user data between Garmin devices. Easy to see even on the sunniest days, the Garmin echoMAP Boating Sonar 52DV offers auto-dimming and a sunlight readable display, ensuring that you can read a variety of charts and clearly see your sonar outputs with the sonar device. With a quick release mount for easy use, the Garmin echoMAP Fishing Sonar 52DV can easily be moved from your boat to your home without disconnecting any cables, ensuring that you are always prepared for your next trip.
Specifications for Garmin echoMAP GPS Sonar 52DV:
| Physical dimensions: | 6.8" x 5.4" x 1.7" (17.3 x 13.6 x 4.4 cm) |
| Display size, WxH: | 5.0" diagonal |
| Display resolution, WxH: | 480 x 480 pixels |
| Display type: | Square |
| Weight: | 1.3 lbs (0.6 kg) |
| Water rating: | IPX7 |
| Antenna: | Internal only |
| NMEA 0183 compatible: | Y |
| Power consumption: | 7.1W |
| Mounting options: | Bail or flush |
| Garmin Marine Network ports: | N |
| Preloaded maps: | Worldwide basemap |
| Accepts data cards: | 1 microSD card |
| Waypoints: | 3,000 |
| Routes: | 100 |
| Track log: | 20,000 points; 50 saved tracks |
| Garmin Sonar compatible: | Y |
| Supports AIS (tracks target ships position): | Y |
| Supports DSC (displays position data from DSC-capable VHF radio): | Y |
| Tide tables: | Y |
| BlueChart Mobile (planning) compatible: | N |
| Dual-frequency (50/200 kHz) sonar capable: | Y |
| Dual-beam (77/200 kHz) sonar capable: | Y |
| Transmit power: | 500 W (RMS) / 4,000 W (peak to peak) |
| DownVu: | Y (built-in) |
| SideVu: | N |
| Maximum depth: | 2,300 ft @ 77 kHz, freshwater; 1,100 ft @ 77 kHz, saltwater (depth capacity is dependent on water bottom type and other water conditions) |
| Bottom lock (shows return from the bottom up): | Y |
| Water temperature log and graph: | Y |
| Sonar recording: | Y |
| Sonar history rewind: | Y |
| NMEA 0183 input ports: | 1 |
| NMEA 0183 output ports: | 1 |
| Video input ports: | N |
| Video output ports: | N |
| Wireless connectivity: | N |
Features of Garmin echoMAP High Contrast Sonar 52DV:
- High-contrast color display with keypad control with preloaded Worldwide basemap
- Built-in DownVu scanning sonar with the clearest images on the water
- Built-in 500 W (RMS) HD-ID sonar (4,000 W peak-to-peak)
- 5 Hz Internal GPS updates position and heading 5 times per second
- Tilting, quick-disconnect mount
- Easy to use and easy to install
- Sunlight readable, auto dimming display and backlit keypad
- Sonar recording that saves digital information for playback on your computer
- Sonar history rewind allows you to check your sonar history while on the water
- Trolling motor transducer support
- Share user data with other Garmin devices
Package Contents:
- Garmin echoMAP Fishing Sonar 52DV
- echoMAP 52dv with Worldwide Basemap
- Power/data cable
- Y-cable adapter (12-pin to double 4-pin)
- Quick release mount
- Flush mount
- Protective cover
- Transducer adapter cable (4-pin to 8-pin)
- Hardware
- Documentation
Be the first to review this product
Garmin echoMAP Sonar 52DV Unavailable & Discontinued Models
List of Unorderable Models
- Garmin echoMAP 52dv without transducer 010-01382-00 , MPN: 010-01382-00 , UPC: 753759126520 , Code: GA-F81-SD52-010-01382-00
- Garmin echoMAP 52dv with transducer 010-01382-01 , MPN: 010-01382-01 , UPC: 753759126537 , Code: GA-F81-SD52-010-01382-01
