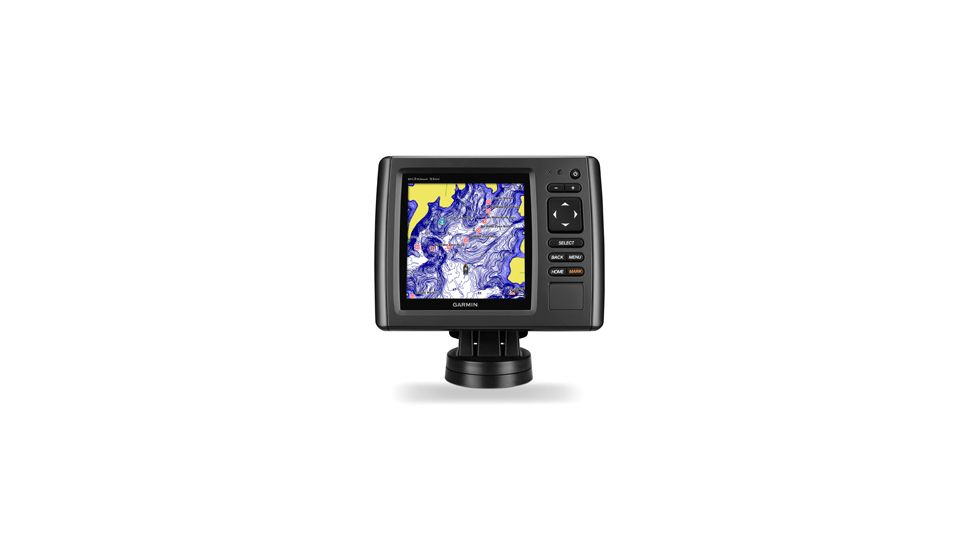

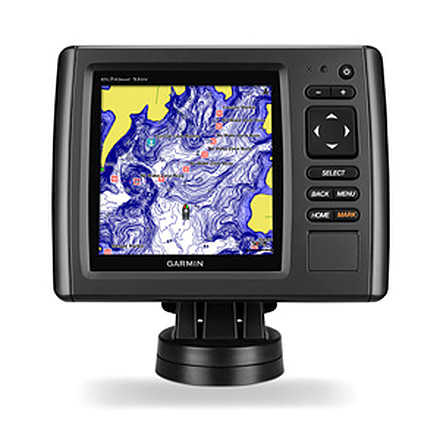

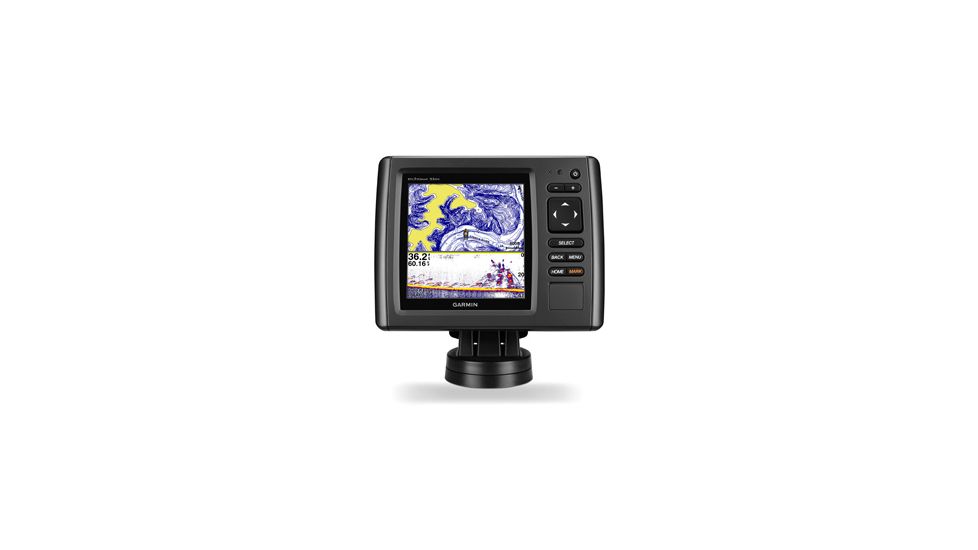

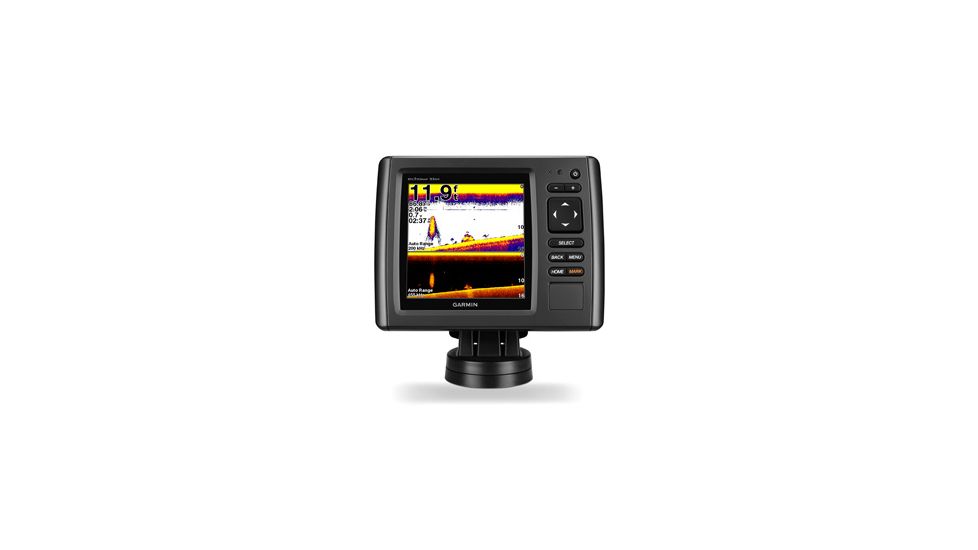

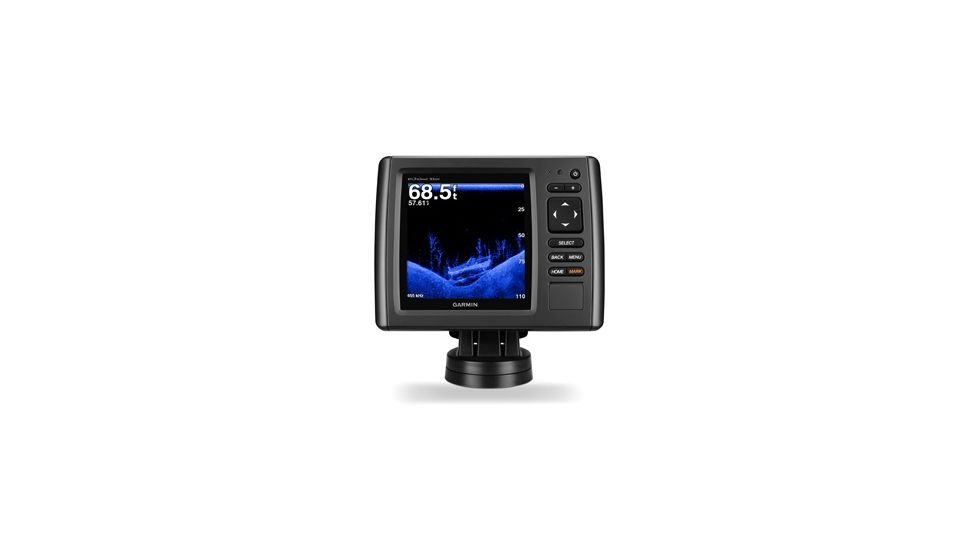

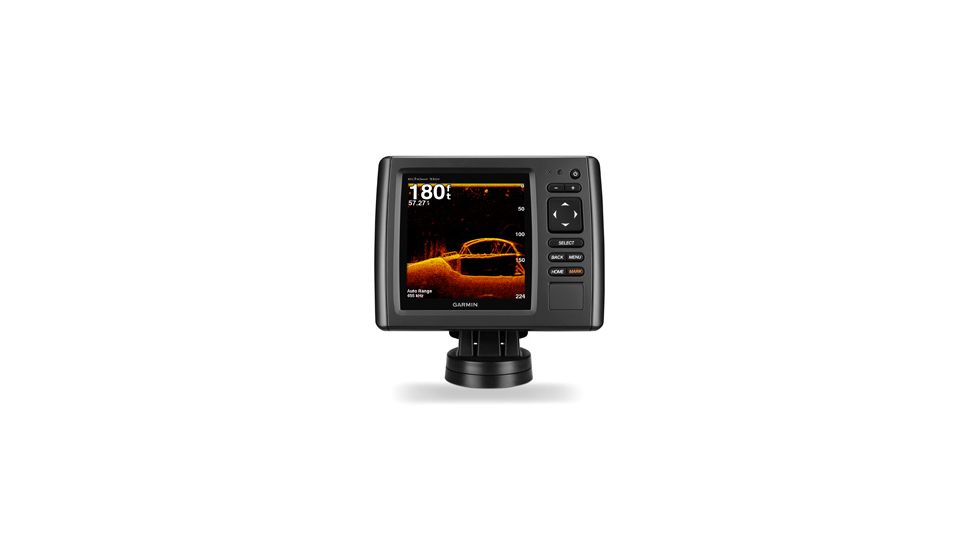

Product Info for Garmin echoMAP Sonar 53DV with Transducer
Your freshwater fishing trip will be more lucrative than ever when you bring along the Garmin echoMAP Sonar 53DV with Transducer. Preloaded with U.S. LakeVu HD, this Sonar System from Garmin offers extensive information on over 17,000 lakes, rivers, and reservoirs, ensuring that you are fully aware of your surroundings. The Garmin echoMAP Lake Sonar 53DV with Transducer also comes with traditional HD-ID sonar and DownVu capabilities, which allow you to see up to 750 feet below your boat with unmatched clarity. Updating 5 times a second, the Garmin echoMAP Quick Release Sonar 53DV with Transducer is equipped with a 5 Hz Internal GPS that readily refreshes your position and heading for the most accurate marking available. Simply click in your Garmin echoMAP GPS Sonar 53DV with Transducer to the quick release mount and you're ready to start exploring.
Specifications for Garmin echoMAP LakeVu Sonar 53DV with Transducer:
| Dimensions: | 6.8" x 5.4" x 1.7" (17.3 x 13.6 x 4.4 cm) |
| Weight: | 1.3 lbs (0.6 kg) |
| Water Rating: | IPX7 |
| Power Supply Range: | 10V - 20V DC |
| Typical Power Consumption: | 7.1 W |
| Digital Size (diagonal): | 5.0" |
| Display Resolution: | 480 x 480 square |
| Preloaded Maps: | U.S. LakeVu HD |
| Internal 5 Hz GPS Receiver: | Y |
| Dual Frequency (50/200 kHz) capable: | Y |
| Dual Beam (77/200 kHz) capable: | Y |
| DownVu capable: | Y |
| SideVu capable: | N |
| Trasmit Power: | Y, 500 W (RMS) / 4,000 W (peak to peak) |
| Frequencies Supported (kHz): | Traditional - 50/77/200; DownVu - 260 or 455 |
| Maximum Depth Capabilities: | Y, 2,300 ft. at 77 kHz, freshwater |
| Accepts MicroSD Card: | Y, for optional mapping and user data storage |
| NMEA 0183 Compatible: | Y, 1 input port/1 output port |
| AIS and DSC support: | Y, with NMEA 0183 |
| User Data Sharing Cable Compatible: | Y |
| Sonar History Rewind: | Y |
| Sonar Recording: | Y |
| Bottom Lock: | Y |
| Water Temperature Log/Graph: | Y |
| Tide Tables: | Y |
| Mounting Options: | Bail/Flush |
| Gift Box Dimensions: | 11.5" x 8.2" x 6.7" (291 x 209 x 170 mm) |
Features of Garmin echoMAP Scanning Sonar 53DV with Transducer:
- Easy to install and easy to use
- Sunlight readable screen with auto-dimming display and backlit keypad
- Preloaded U.S. LakeVu HD
- Built-in 500 W (RMS) traditional HD-ID sonar and DownVu scanning sonar capabilities that allows you to see up to 750 feet below your boat
- Quick release mount allows for quick install and removal
- 5 Hz Internal GPS that updates 5x a second
- Sonar recording can be saved and returned to on your home computer
- Sonar history rewind
- Ability to share user data between devices
- Additional maps and charts available
Package Contents:
- Garmin echoMAP Recording Sonar 53DV with Transducer
- echoMAP 53dv with U.S. LakeVu HD
- Power/data cable
- Quick-release mount
- Flush mount
- Protective cover
- GT20-TM transducer (77/200kHz/DownVu, 4-pin)
- Trolling motor mount
- Hardware
- Documentation
Be the first to review this product
Garmin echoMAP Sonar 53DV with Transducer Unavailable & Discontinued Models
List of Unorderable Models
- Garmin echoMAP 53dv with Transducer 010-01383-00 , MPN: 010-01383-00 , UPC: 753759126544 , Code: GA-FH-010-1383-00
