Garmin echoMAP Sonar 72SV without Transducer 010-01386-00,
Tap Tap to Zoom
Product No Longer Available
Unfortunately Garmin echoMAP Sonar 72SV without Transducer is not listed by CampSaver.You can also explore other items in the Fishing, Boating & Marine, Fishing Marine Electronics, Fishfinders yourself to try and find the perfect replacement for you!

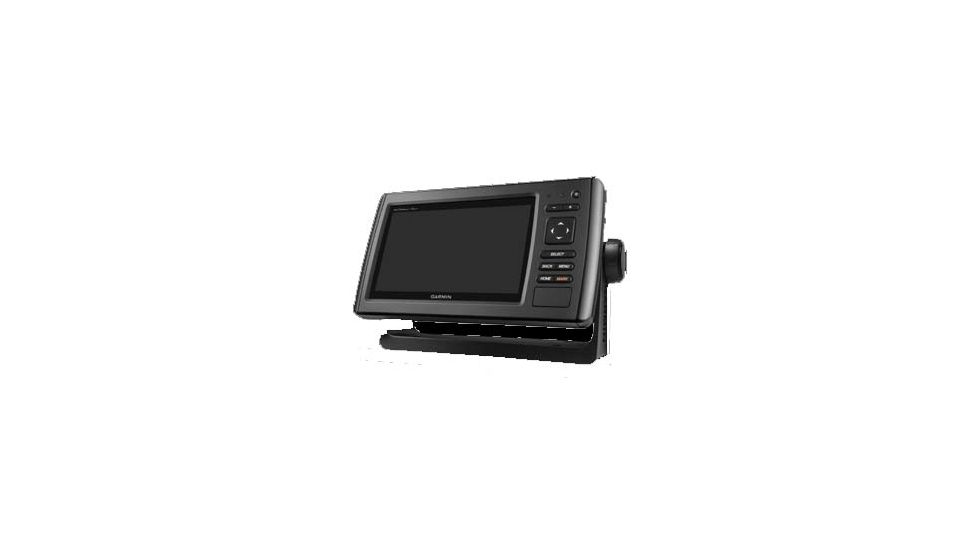

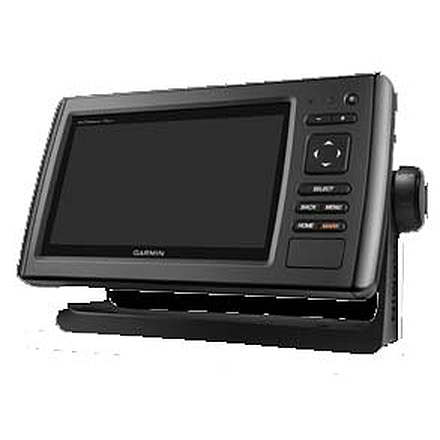

Product Info for Garmin echoMAP Sonar 72SV without Transducer
Find the peak exploration opportunities and the best fishing spots when you equip your boat with the Garmin echoMAP Sonar 72SV without Transducer. Offering three different sonar types, this Sonar System from Garmin gives you three new ways to examine what's happening below underneath the water's surface with the traditional HD-ID sonar, the DownVu scanning sonar, and the SideVu scanning sonar. To present you with the clearest sonar experience, the Garmin echoMAP SideVu Sonar 72SV without Transducer is equipped with a 5 Hz internal GPS which updates your location and heading 5 times each second, providing the most fluid visual available. Hooking up to the best transducer for your boat type, quickly install the Garmin echoMAP Fishing Sonar 72SV without Transducer and you're ready to start exploring both saltwater and freshwater for prime fishing spots in mere minutes.
Specifications for Garmin echoMAP DownVu Sonar 72SV without Transducer:
| Dimensions: | 9.8" x 5.5" x 2.0" (25.0 x 13.9 x 5.1 cm) |
| Weight: | 1.7 lbs (0.8 kg) |
| Water Rating: | IPX7 |
| Power Supply Range: | 10V - 20V DC |
| Typical Power Consumption: | 7.1 W |
| Digital Size (diagonal): | 7.0" |
| Display Resolution: | 480 x 800 WVGA |
| Preloaded Maps: | Worldwide Basemap |
| Internal 5 Hz GPS Receiver: | Y |
| Dual Frequency (50/200 kHz) capable: | Y |
| Dual Beam (77/200 kHz) capable: | Y |
| DownVu capable: | Y |
| SideVu capable: | Y |
| Trasmit Power: | Y, 500 W (RMS) / 4,000 W (peak to peak) |
| Frequencies Supported (kHz): | Traditional - 50/77/200; DownVu - 260 or 455; SideVu - 260 or 455 |
| Maximum Depth Capabilities: | Y, 2,300 ft. at 77 kHz, freshwater |
| Accepts MicroSD Card: | Y, for optional mapping and user data storage |
| NMEA 0183 Compatible: | Y, 1 input port/1 output port |
| AIS and DSC support: | Y, with NMEA 0183 |
| User Data Sharing Cable Compatible: | Y |
| Sonar History Rewind: | Y |
| Sonar Recording: | Y |
| Bottom Lock: | Y |
| Water Temperature Log/Graph: | Y |
| Tide Tables: | Y |
| Mounting Options: | Bail/Flush |
| Gift Box Dimensions: | 13.4" x 10.1" x 8.3" (341 x 257 x 211 mm) |
Features of Garmin echoMAP Boating Sonar 72SV without Transducer:
- Easy to install and easy to use
- Sunlight readable screen with auto-dimming display and backlit keypad
- Preloaded Worldwide Basemap
- Built-in 500 W (RMS) traditional HD-ID sonar, DownVu, and SideVu scanning sonar capabilities that allows you to see up to 750 feet below your boat
- Quick release mount allows for quick install and removal
- 5 Hz Internal GPS that updates 5x a second
- Sonar recording can be saved and returned to on your home computer
- Sonar history rewind
- Ability to share user data between devices
- Additional maps and charts available
Package Contents:
- Garmin echoMAP Scanning Sonar 72SV without Transducer
- echoMAP 72sv with Worldwide Basemap
- Power/data cable
- Transducer adapter cable (4-pin to 8-pin)
- Y-cable adapter (12-pin to double 4-pin)
- Quick-release mount
- Flush mount
- Protective cover
- Hardware
- Documentation
Be the first to review this product
Garmin echoMAP Sonar 72SV without Transducer Unavailable & Discontinued Models
List of Unorderable Models
- Garmin echoMAP 72sv without Transducer 010-01386-00 , MPN: 010-01386-00 , UPC: 753759126605 , Code: GA-FH-010-1386-00
