Garmin echoMAP Sonar 73DV ,
Tap Tap to Zoom
Product No Longer Available
Unfortunately Garmin echoMAP Sonar 73DV is not listed by CampSaver.You can also explore other items in the Camp & Hike, Fishing, Boating & Marine, Camping Essentials, Electronics & Power, Fishing Marine Electronics, GPS yourself to try and find the perfect replacement for you!
Product Info for Garmin echoMAP Sonar 73DV
Freshwater fishing is easier than ever before thanks to the Garmin echoMAP Sonar 73DV with the preloaded U.S. LakeVu map. Offering detailed information on over 17,000 U.S. lakes, rivers, and reservoirs, this Sonar System from Garmin prepares you for anything the water might throw your way. Fitted with traditional HD-ID sonar as well as the DownVu scanning sonar, you can easily examine the fishing situation beneath your boat with the Garmin echoMAP Fishing Sonar 73DV. The sonar recording, sonar history rewind, and ability to share user data makes recording your stellar fishing spot and sharing it with friends just a click away with the Garmin echoMAP Boating Sonar 73DV, making you the talk of your fishing group year after year.
Specifications for Garmin echoMAP GPS Sonar 73DV:
| Physical dimensions: | 9.8" x 5.5" x 2.0" (25.0 x 13.9 x 5.1 cm) |
| Display size, WxH: | 7.0" diagonal |
| Display resolution, WxH: | 480 x 800 pixels |
| Display type: | WVGA display |
| Weight: | 1.7 lbs. (0.8kg) |
| Water rating: | IPX7 |
| Antenna: | Internal only |
| NMEA 0183 compatible: | Y |
| Power consumption: | 7.1W |
| Mounting options: | Bail or flush |
| Garmin Marine Network ports: | N |
| Preloaded maps: | U.S. LakeVu HD |
| Accepts data cards: | 1 microSD card |
| Waypoints: | 3,000 |
| Routes: | 100 |
| Track log: | 20,000 points; 50 saved tracks |
| Garmin Sonar compatible: | Y |
| Supports AIS (tracks target ships position): | Y |
| Supports DSC (displays position data from DSC-capable VHF radio): | Y |
| Tide tables: | Y |
| BlueChart Mobile (planning) compatible: | N |
| Dual-frequency (50/200 kHz) sonar capable: | Y |
| Dual-beam (77/200 kHz) sonar capable: | Y |
| Transmit power: | 500 W (RMS) / 4,000 W (peak to peak) |
| DownVu: | Y (built-in) |
| SideVu: | N |
| Maximum depth: | 2,300 ft @ 77 kHz, freshwater; 1,100 ft @ 77 kHz, saltwater (depth capacity is dependent on water bottom type and other water conditions) |
| Bottom lock (shows return from the bottom up): | Y |
| Water temperature log and graph: | Y |
| Sonar recording: | Y |
| Sonar history rewind: | Y |
| NMEA 0183 input ports: | 1 |
| NMEA 0183 output ports: | 1 |
| Video input ports: | N |
| Video output ports: | N |
| Wireless connectivity: | N |
Features of Garmin echoMAP High Contrast Sonar 73DV:
- High-contrast color display with keypad control with preloaded U.S. LakeVu HD maps
- Built-in DownVu scanning sonar with the clearest images on the water
- Built-in 500 W (RMS) HD-ID sonar (4,000 W peak-to-peak)
- 5 Hz Internal GPS updates position and heading 5 times per second
- Tilting, quick-disconnect mount
- Easy to use and easy to install
- Sunlight readable, auto dimming display and backlit keypad
- Sonar recording that saves digital information for playback on your computer
- Sonar history rewind allows you to check your sonar history while on the water
- Trolling motor transducer support
- Share user data with other Garmin devices
Package Contents:
- Garmin echoMAP Fishing Sonar 73DV
- echoMAP 73dv with U.S. LakeVu HD
- Power/data cable
- Y-cable adapter (12-pin to double 4-pin)
- Quick release mount
- Flush mount
- Protective cover
- Transducer adapter cable (4-pin to 8-pin)
- Hardware
- Documentation
Be the first to review this product
Garmin echoMAP Sonar 73DV Unavailable & Discontinued Models
List of Unorderable Models

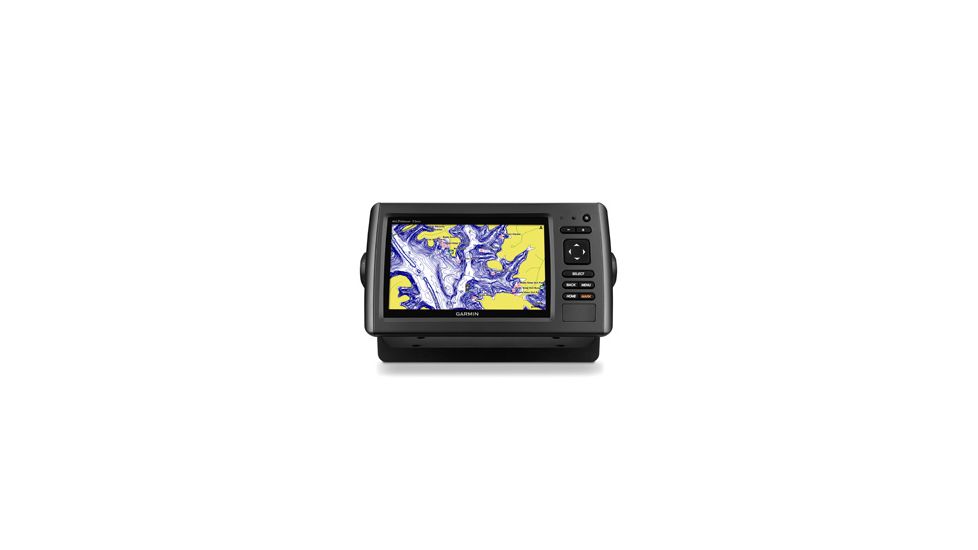

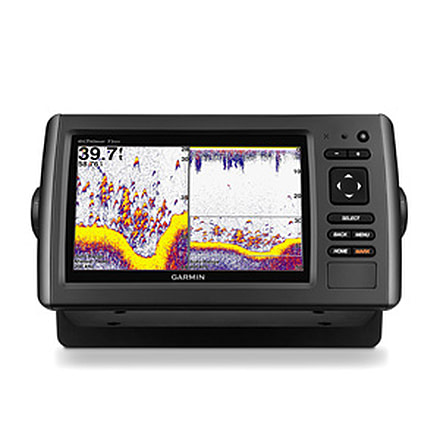

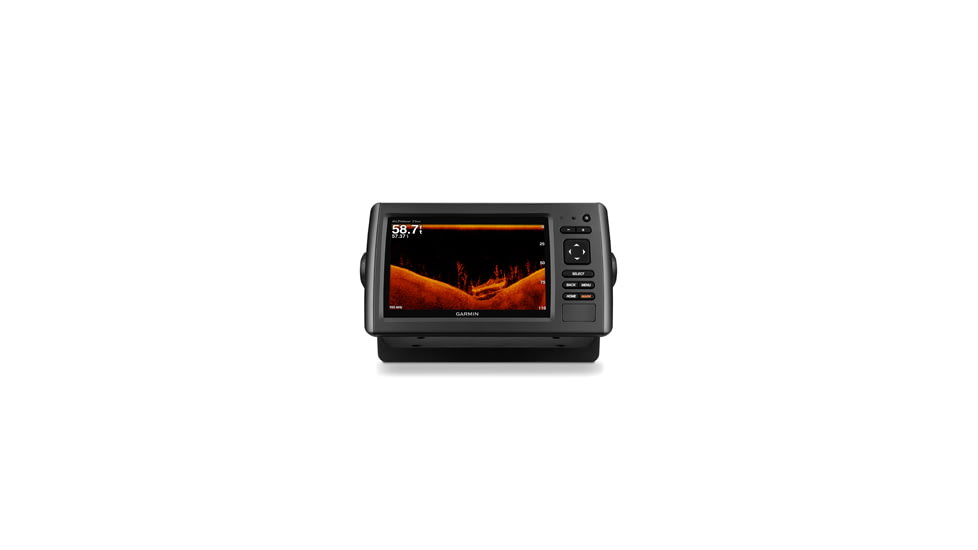

- Garmin echoMAP 73dv with transducer 010-01421-00 , MPN: 010-01421-00 , UPC: 753759132330 , Code: GA-F81-SJSH3-010-01421-00

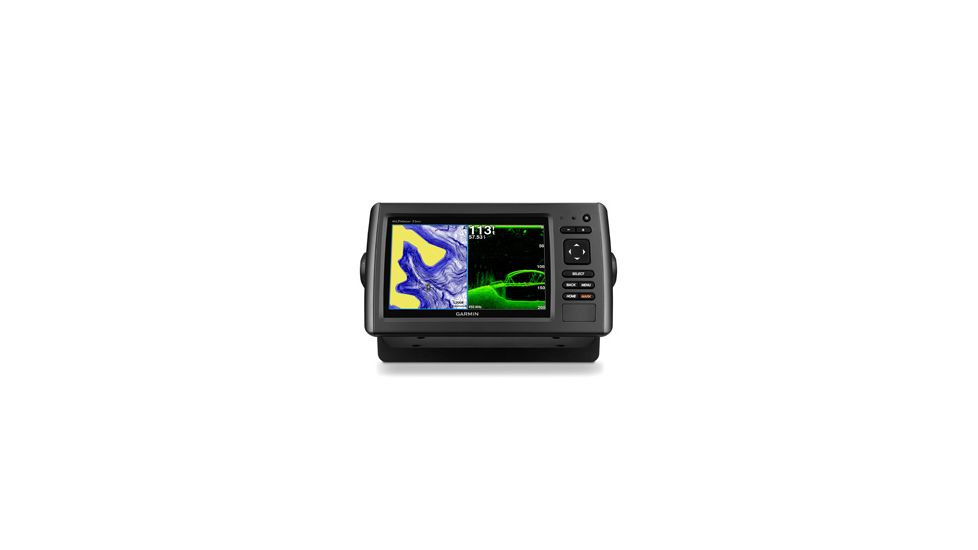

- Garmin echoMAP 73sv with transducer 010-01387-00 , MPN: 010-01387-00 , UPC: 753759126629 , Code: GA-F81-SJSH3-010-01387-00
