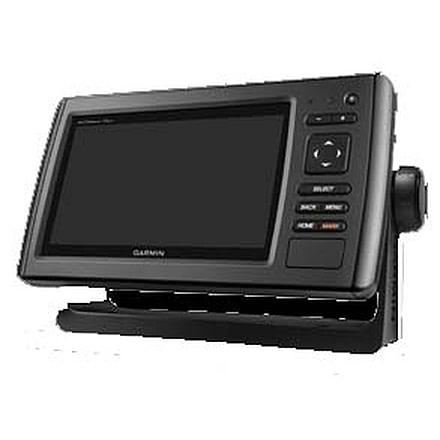

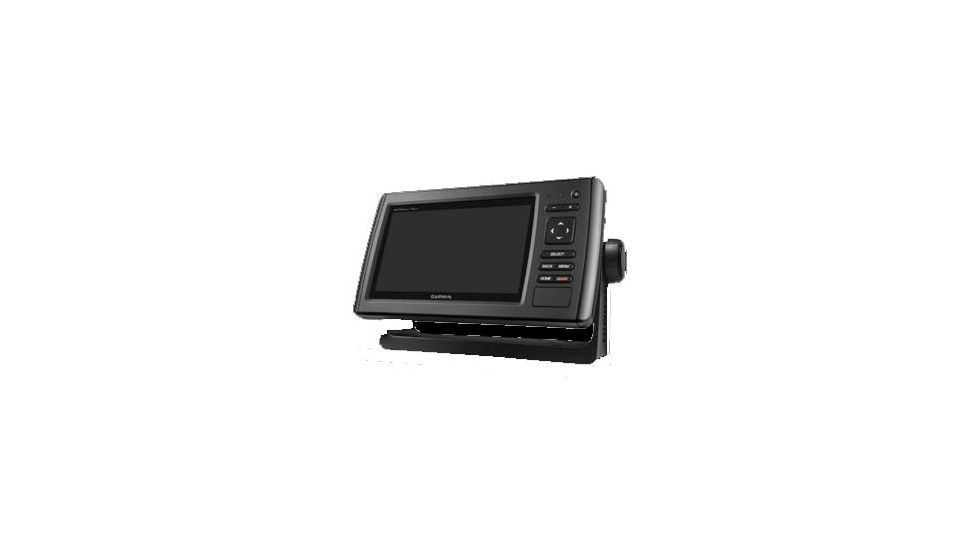

Garmin echoMAP Sonar 92SV without Transducer 010-01390-00,
Tap Tap to Zoom
Product No Longer Available
Unfortunately Garmin echoMAP Sonar 92SV without Transducer is not listed by CampSaver.You can also explore other items in the Fishing, Boating & Marine, Fishing Marine Electronics, Fishfinders yourself to try and find the perfect replacement for you!
Product Info for Garmin echoMAP Sonar 92SV without Transducer
See everything around your boat as clearly as possible and be prepared for anything when you attach the Garmin echoMAP Sonar 92SV without Transducer to your power or sailboat. With the largest screen size available, this Sonar System from Garmin allows you to see all the details recorded by the HD-ID sonar, the DownVu scanning sonar, and the SideVu scanning sonar systems. Once these sonar outputs have been collected, each can be recorded and saved for later viewing, or the data can be transferred to a different device with the Garmin echoMAP Underwater Sonar 92SV without Transducer. The fluid picture can be attributed to the Garmin echoMAP GPS Sonar 92SV without Transducer's internal 5 Hz GPS, which updates the location and heading of your boat five times each second, so you have the most accurate information on every fishing trip you take.
Specifications for Garmin echoMAP DownVu Sonar 92SV without Transducer:
| Dimensions: | 11.3" x 6.4" x 2.0" (28.8 x 16.3 x 5.1 cm) |
| Weight: | 2.3 lbs (1.0 kg) |
| Water Rating: | IPX7 |
| Power Supply Range: | 10V - 20V DC |
| Typical Power Consumption: | 11 W |
| Digital Size (diagonal): | 9.0" |
| Display Resolution: | 480 x 800 WVGA |
| Preloaded Maps: | Worldwide Basemap |
| Internal 5 Hz GPS Receiver: | Y |
| Dual Frequency (50/200 kHz) capable: | Y |
| Dual Beam (77/200 kHz) capable: | Y |
| DownVu capable: | Y |
| SideVu capable: | Y |
| Trasmit Power: | Y, 500 W (RMS) / 4,000 W (peak to peak) |
| Frequencies Supported (kHz): | Traditional - 50/77/200; DownVu - 260 or 455; SideVu - 260 or 455 |
| Maximum Depth Capabilities: | Y, 2,300 ft. at 77 kHz, freshwater |
| Accepts MicroSD Card: | Y, for optional mapping and user data storage |
| NMEA 0183 Compatible: | Y, 1 input port/1 output port |
| AIS and DSC support: | Y, with NMEA 0183 |
| User Data Sharing Cable Compatible: | Y |
| Sonar History Rewind: | Y |
| Sonar Recording: | Y |
| Bottom Lock: | Y |
| Water Temperature Log/Graph: | Y |
| Tide Tables: | Y |
| Mounting Options: | Bail/Flush |
| Gift Box Dimensions: | 13.4" x 10.1" x 8.3" (341 x 257 x 211 mm) |
Features of Garmin echoMAP Boating Sonar 92SV without Transducer:
- Easy to install and easy to use
- Sunlight readable screen with auto-dimming display and backlit keypad
- Preloaded Worldwide Basemap
- Built-in 500 W (RMS) traditional HD-ID sonar, DownVu, and SideVu scanning sonar capabilities that allows you to see up to 750 feet below your boat
- Quick release mount allows for quick install and removal
- 5 Hz Internal GPS that updates 5x a second
- Sonar recording can be saved and returned to on your home computer
- Sonar history rewind
- Ability to share user data between devices
- Additional maps and charts available
Package Contents:
- Garmin echoMAP Scanning Sonar 92SV without Transducer
- echoMAP 92sv with Worldwide Basemap
- Power/data cable
- Transducer adapter cable (4-pin to 8-pin)
- Y-cable adapter (12-pin to double 4-pin)
- Quick-release mount
- Flush mount
- Protective cover
- Hardware
- Documentation
Be the first to review this product
Garmin echoMAP Sonar 92SV without Transducer Unavailable & Discontinued Models
List of Unorderable Models
- Garmin echoMAP 92sv without Transducer 010-01390-00 , MPN: 010-01390-00 , UPC: 753759126674 , Code: GA-FH-010-1390-00
