2 imagesGarmin EchoMap UHD 63cv Ice Fishing Bundle, Black, 010-02330-15
Garmin EchoMap UHD 63cv Ice Fishing Bundle, Black, 010-02330-15
Garmin EchoMap UHD 63cv Ice Fishing Bundle, Black, 010-02330-15
Garmin EchoMap UHD 63cv Ice Fishing Bundle, Black, 010-02330-15

Product Discontinued by Manufacturer

Garmin EchoMap UHD 63cv Ice Fishing Bundles has been discontinued by Garmin and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Fishing, Ice Fishing, Ice Fishing Electronics yourself to try and find the perfect replacement for you!

Product Info for Garmin EchoMap UHD 63cv Ice Fishing Bundles

ECHOMAP UHDimage

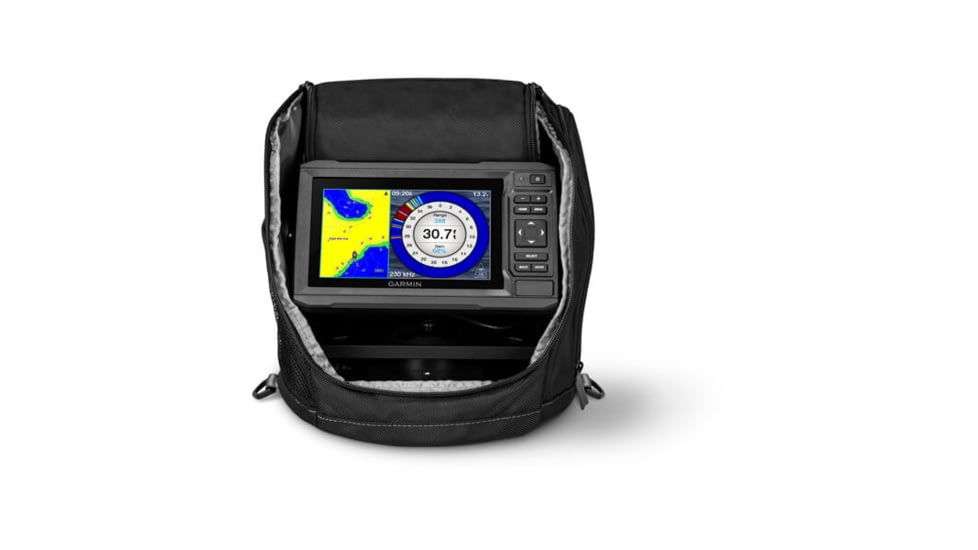

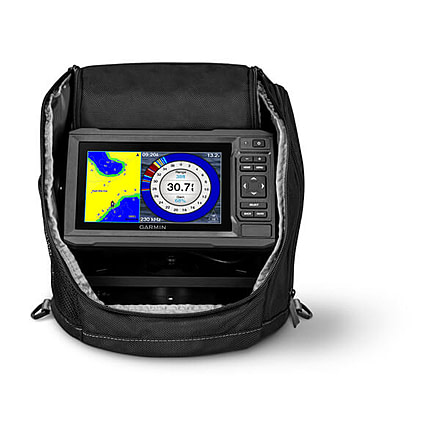

The portable 6in ECHOMAP UHD 63cv ice fishing bundle is excellent on ice and on your boat for year-round fishing, and it features a glove-friendly keyed interface.

ICE FISHING TRANSDUCER

The bundle includes a high wide CHIRP ice fishing transducer with selectable beamwidth and provides crisp, clear fish arches with excellent separation.

BUILT-IN FLASHER

The built-in flasher provides accurate jig and fish detection as they swim into the sonar beam.

LAKEV G3 MAPS

The unit comes preloaded with LakeV g3 maps with integrated Navionics data, covering more than 18,000 lakes in the U.S.

CUSTOM COMBOS

You can create custom pages that combine sonar, flasher and map on your display.

SUPPORTS SCANNING SONAR

ECHOMAP UHD 63cv also supports ClearV scanning sonar for open water. Get nearly photographic images of whats below the surface (transducer sold separately).

CARRYING CASE

Where you take your bundle is up to you. But the rugged, portable carrying case lets you easily transport it from hole to hole and season to season.

Features of Garmin EchoMap UHD 63cv Ice Fishing Bundles

  • Physical dimensions 10.5in 9.5in 10.5in (26.7 22.9 26.7 cm)
  • Antenna Internal or external over NMEA 2000
  • Receiver 5 Hz
  • Display size 5.4in x 3.1in; 6.2in diagonal (13.7 x 7.7 cm; 15.2 cm diagonal)
  • Display type WVGA display
  • Accepts data cards
  • 1 microSD card; 32 GB maximum card size
  • Track log 50,000 points; 50 saved tracks
  • Preloaded maps
  • LakeV g3 (inland maps)
  • Routes 100
  • Bag size: Small (S)
  • Included transducer: GT8HW-IF
  • Maximum depth 800 ft freshwater
  • Garmin Sonar compatible
  • NMEA 0183 input ports 1
  • Water temperature log and graph
  • Wireless connectivity
  • NMEA 0183 output ports 1
  • NMEA 2000 compatible
  • Sonar recording
  • Bottom lock (shows return from the bottom up)
  • CHIRP sonar technology (Built-in)
  • NMEA 0183 compatible
  • Waypoints 5,000
  • Frequencies supported
  • CHIRP High Wide (150-240 kHz)
  • Transducer pin numbers 4-pin
  • Tide tables

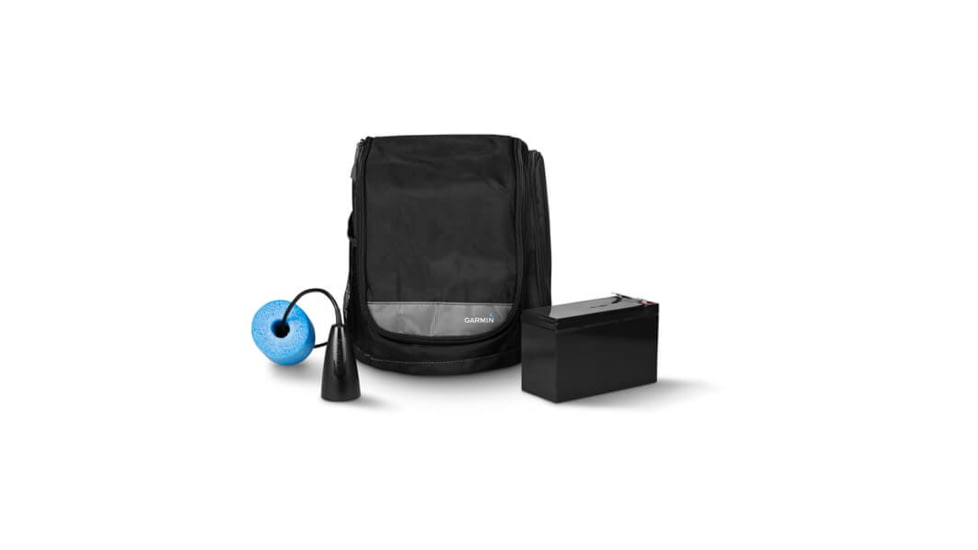

Package Contents:

  • Garmin EchoMap UHD 63cv Ice Fishing Bundles
  • ECHOMAP UHD 63cv chartplotter
  • GT8HW-IF transducer
  • Power cable
  • Tilt/swivel mount
  • Documentation
  • Portable fishing kit:
  • Bag with handle
  • Foam float
  • Rechargeable battey
  • Battery charger
Customer Reviews for Garmin EchoMap UHD 63cv Ice Fishing Bundles Not Yet Reviewed

Be the first to review this product

Questions & Answers for Garmin EchoMap UHD 63cv Ice Fishing Bundles No Questions Asked Yet

Garmin EchoMap UHD 63cv Ice Fishing Bundles Unavailable & Discontinued Models

List of Unorderable Models

  • Garmin EchoMap UHD 63cv Ice Fishing Bundle, Black, 010-02330-15 , MPN: 010-02330-15 , UPC: 753759264567 , Code: GA-F37-GAR229-010-02330-15
