Product Info for Garmin Fishfinder echo 500c

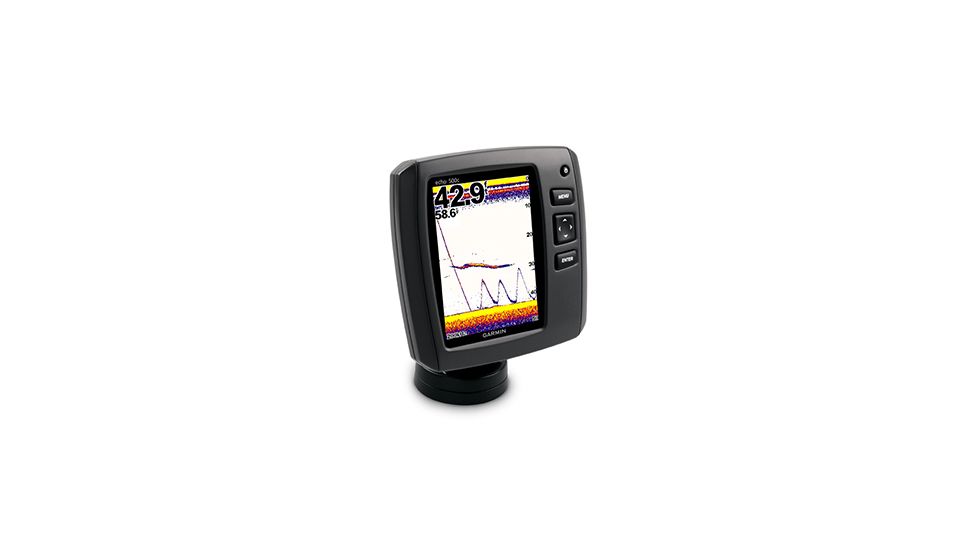

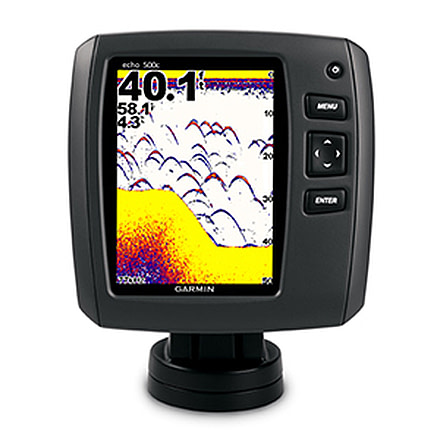

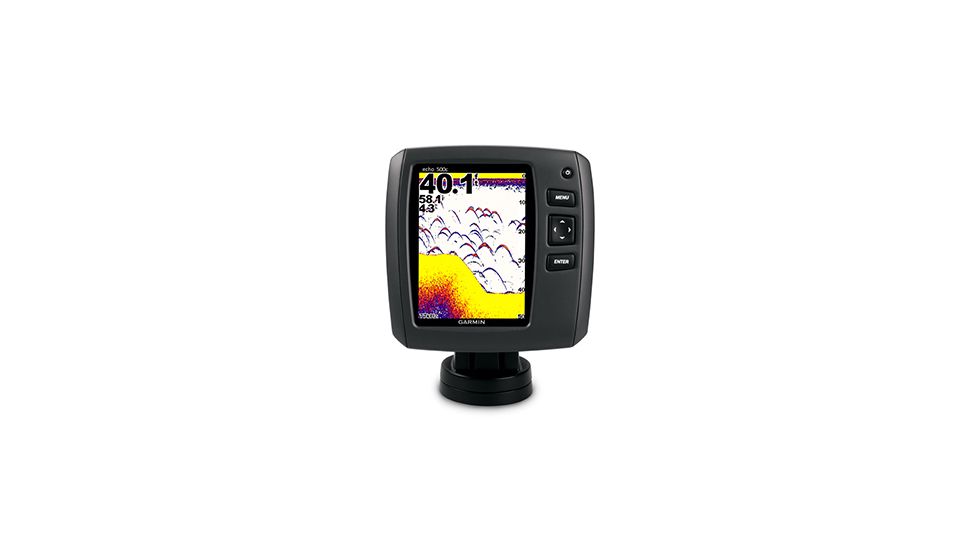

Garmin echo 500c Fishfinder 010-00954-00 allows you to experience picture perfect fishing! The echo 500c Fish Finder by Garmin puts you at the top of your fishing game. A Garmin Fishfinder with the ability to scan the waters with 500 watts (RMS) power and extra-sensitive Garmin HD-ID target tracking technology is definitely the system to turn to when bragging rights are on the line. With Garmin's Smooth Scaling technology you won’t lose sight of the sonar history as the unit changes depth ranges. It also allows you to rewind your sonar history in order to ensure that you haven't missed a thing. The dual beam transducer on this fishfinder optimizes performance for deep or shallow water by offering a wide-angle up to 120° coverage. target fish beyond the sides of your boat and have the ability to scan bottom profiles down to 1,900 feet with the Garmin echo500c 010-00954-00.![]()
Specifications for Garmin echo500c Fish Finder 0100095400:
| Physical & Performance | ||
|---|---|---|
| Unit dimensions, WxHxD: | 6.0" x 5.9" x 1.8" (15.2 x 15.0 x 4.6 cm) | |
| Display size, WxH: | 2.9" x 4.0" (7.4 x 10.16 cm); 5" diag, (12.7 cm) | |
| Display resolution, WxH: | 234 x 320 pixels | |
| Display type: | QVGA, 256 colors | |
| Weight: | 17.6 oz (499 g) | |
| Waterproof: | yes (IPX7) | |
| Features | ||
| Audible alarms: | yes | |
| Dual-frequency sonar capable: | no | |
| Dual-beam sonar capable: | yes | |

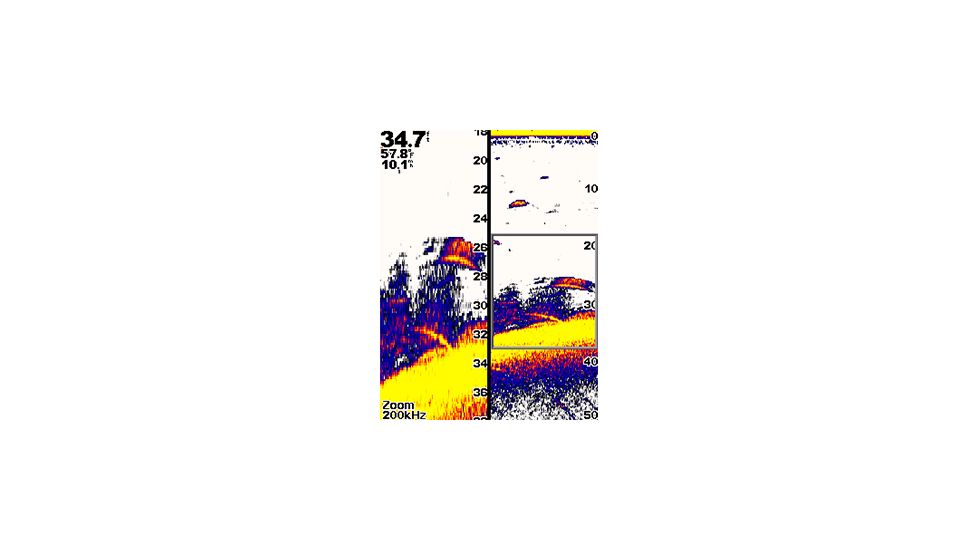

| Split-screen zoom: | yes | |
| Ultrascroll (displays fish targets at higher boat speeds): | yes | |
| Fish Symbol ID (helps identify fish targets): | yes | |
| AutoGain Technology (minimizes clutter, maximizes targets): | yes | |
| Whiteline (indicates hard or soft bottom): | no | |
| Adjustable depth line (measures depth of underwater objects): | yes | |
| A-scope (real time display of fish passing through transducer beam): | yes | |
| Bottom lock (shows return from the bottom up): | yes | |
| Water temperature log and graph: | yes | |
| Water temperature sensor included: | yes | |
| Water speed capable (displays speed on water): | yes | |
| Other | ||
| Frequency: | 200/77 kHz | |
| Transmit power: | 500W (RMS)/4,000W (peak to peak) | |
| Voltage range: | 10V - 28V input | |
| Maximum depth: | 1,900 ft freshwater* | |
| Cone angle: | 60° or 120° (dual beam) | |
Features of Garmin echo 500c Fish Finder 01000954-00:
- Garmin HD-ID technology
- 500 watts (RMS) transmit power
- Depths to 1,900 ft*
- Beam width to 120 degrees
- 5-in sunlight-readable QVGA color display
- *Depth capacity is dependent on water bottom type and other water conditions
Package Contents:
- Garmin echo 500c Fishfinder 010-00954-00
- Quick release mount with tilt and swivel
- Power cable
- Transducer with mounting bracket, hardware and trolling motor clamp
- Documentation
