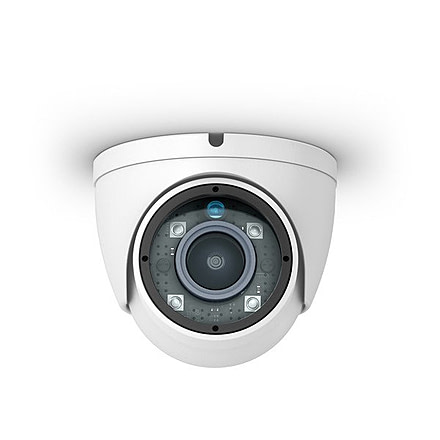

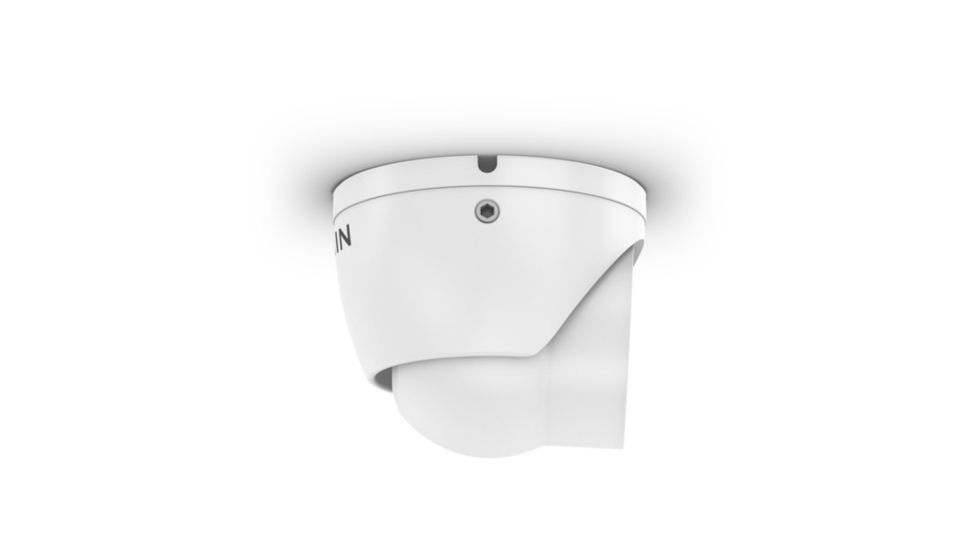

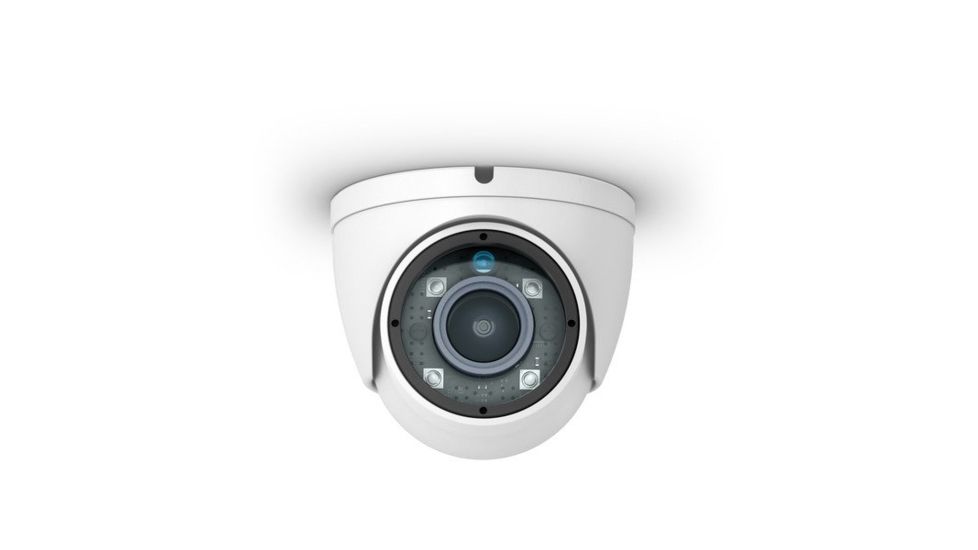

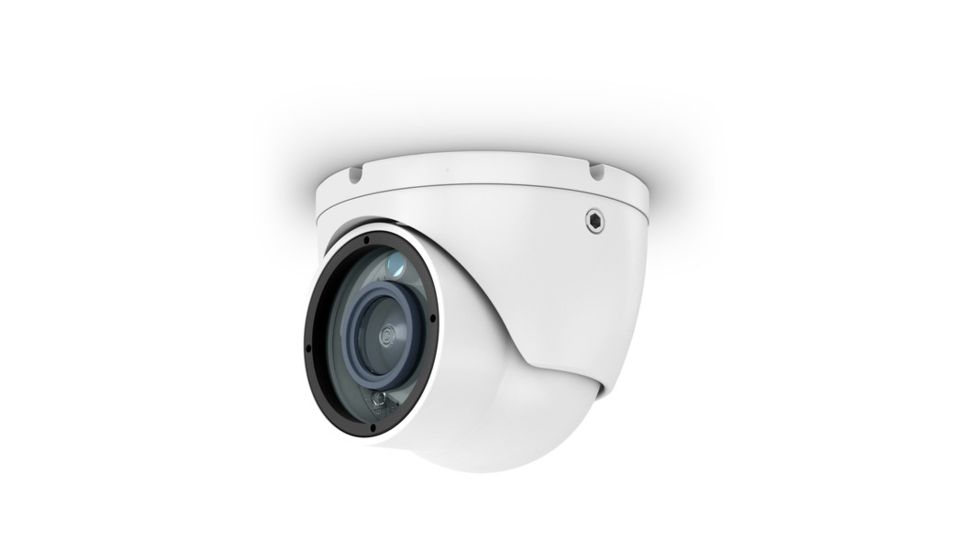

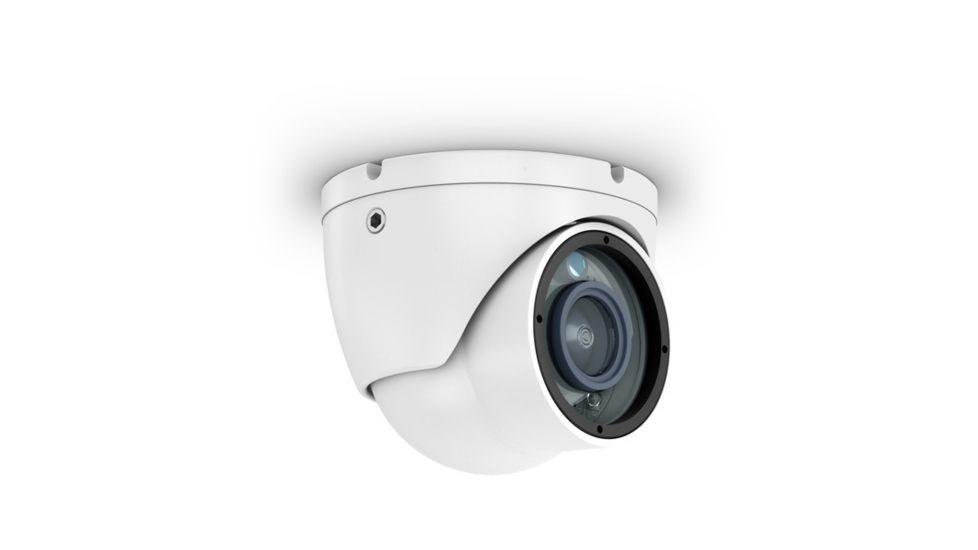

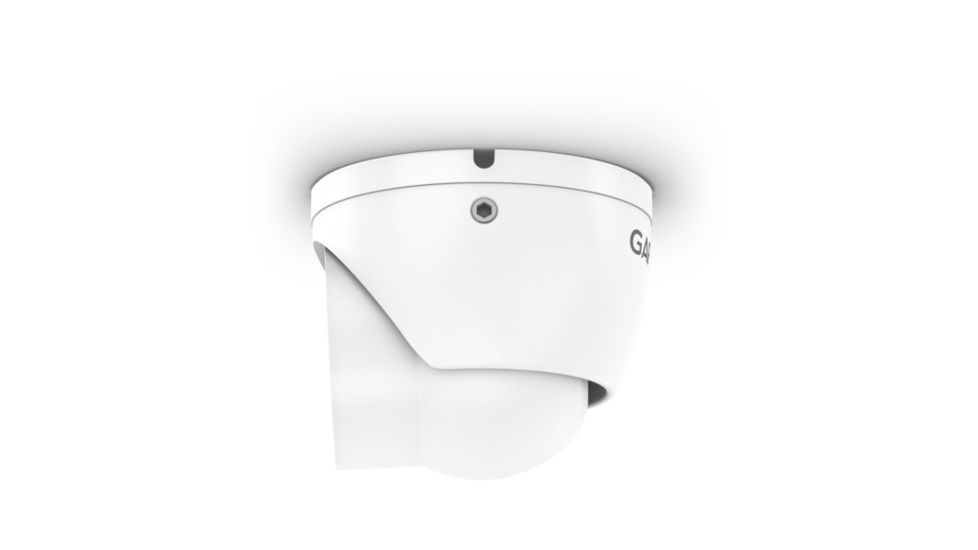

Garmin GC 12, Marine Camera 010-02122-00,

See More Aboard Your Vessel

Provides an extra set of eyes aboard your vessel to monitor areas above or below decks

Analog camera delivers excellent quality images, even in low light; perfect for engine rooms

Capable of broadcasting images on 1 chartplotter or across multiple networked compatible chartplotters

Reverse-image setting on compatible chartplotters helps when backing out of tight locations such as a crowded marina

Rotate images on compatible chartplotters 90/180/270 degrees so you can mount in any orientation

See more of whats happening on or around your boat with our GC 12 marine camera. With GC 12 on your vessel, youll be able to monitor areas inside and outside while you're on the water or while youre docked.

Keep an Eye on Everything

This small and discreet analog camera delivers excellent quality images that can be viewed via onboard TVs, video monitors or compatible chartplotters that support video input. Use it in multiple areas above or below decks, and view on 1 chartplotter or across multiple networked compatible chartplotters.

Place It Almost Anywhere

GC 12 features a convenient reverse-image setting to help you back out of tight locations such as a crowded marina. It even provides clear images in low light, making it perfect for monitoring your dark engine room. Easy to install, its small size and rugged weatherproof case allow for flexible placement.

Features of Garmin GC 12, Marine Camera

• Image sensor device:1/3" Sony 960H Double Scan Super HAD CCD II
• Resolution:PAL: 976(H) x 582(V)
• Scanning system:PAL: 625 Lines 2:1 Interlaced
• Sync system:Internal
• Low light vision range: Up to 10 meters
• Viewing angle: DxHxV(deg): 95.0degx69.0degx52.0deg
• Video output:1.0Vp-p Composite 75 composite
• S/N ratio:More than 52dB (AGC Off)
• Operating temperature:From -10 to +50
• Power consumption:12VDC
• 80mA (IR Off)
• 170mA (IR On)
• Weight:205 g
• Dimensions:50.5 mm (diameter) x 44.3 mm (H)
• Cable length:
• Compass safe distance:6 1/8 in. (155 mm)
• Water rating:IPX7

Package Contents:

• Garmin GC 12, Marine Camera
