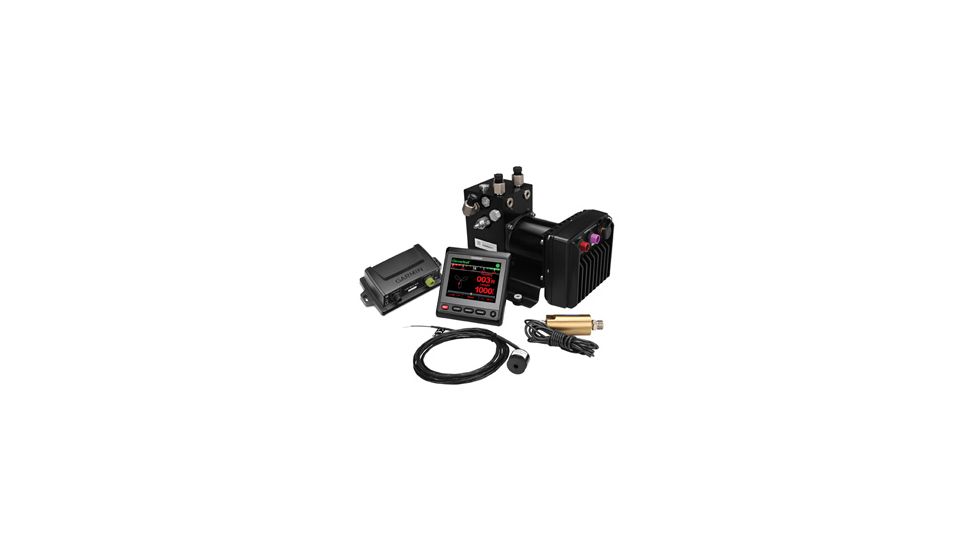

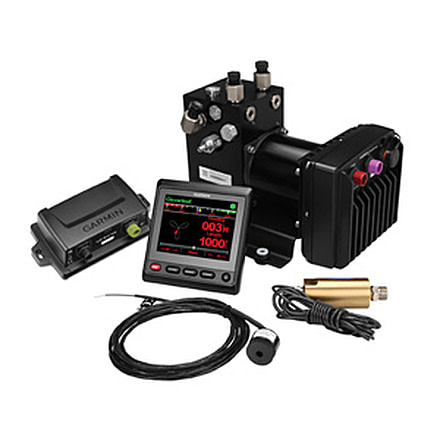

Product Info for Garmin GHP Reactor Hydraulic Corepack with SmartPump
Prepare yourself for the easiest boat ride of your life when you attach the Garmin GHP Reactor Hydraulic Corepack with SmartPump to your powerboat or sailboat. Fitting most hydraulically steered boating applications, this Autopilot System from the makers at Garmin allows you full control and full freedom over your boat's course. To provide a more comfortable ride, the Garmin GHP Reactor Hydraulic Set with SmartPump features a solid-state 9-axis AHRS that easily mounts and calibrates anywhere, ensuring that you experience minimal heading error, course deviation, rudder movement, and power consumption on your next trip. With Shadow Drive technology that allows you full override control, you'll feel secure putting your steering into the capable hands of the Garmin GHP Reactor Hydraulic Autopilot Corepack with SmartPump.
Specifications for Garmin GHP Reactor Hydraulic Corepack with Brushless SmartPump:
| SmartPump Specifications: | |
| Dimensions (H x W x D): | 7 3/4" x 7 1/2" x 9 5/8" (197 mm x 190 mm x 244 mm) |
| Weight: | 16.5 lbs (7.5 kg) |
| Temperature range: | From 5°F to 131°F (from -15°C to 55°C) |
| Material: | Electronics Control Unit (ECU) - fully gasketed, aluminum alloy; bracket - carbon steel; manifold - aluminum alloy; motor - aluminum alloy |
| Power cable length: | 9 ft (2.7 m) |
| Power input: | 11.5-30 Vdc |
| Fuse: | 40 A, blade-type |
| Main power usage: | standby - less than 1 A; engaged - 5-10 A; peak - 34 A |
| Flow rate: | Configurable from 0 to 2.4 L per minute |
| CCU Specifications: | |
| Dimensions: | 3 19/32" diameter (91.4 mm) |
| Weight: | 5.6 oz (159 g) |
| Temperature range: | From 5°F to 131°F (from -15°C to 55°C) |
| Case material: | Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards |
| CCU cable length: | 9.5 ft (3 m) |
| NMEA 2000 power input: | 9-16 V |
| NMEA 2000 LEN: | 3 (150 mA) |
| Buzzer/Alarm Specifications: | |
| Dimensions (L × Diameter): | 29/32" × 1.0" (23 mm × 25 mm) |
| Weight: | 2.4 oz (68 g) |
| Temperature range: | from 5°F to 131°F (from -15°C to 55°C) |
| Cable length: | 10 ft (3.0 m) |
Features of Garmin GHP Reactor Hydraulic AHRS Corepack with SmartPump:
- Solid-state 9-axis AHRS mounts anywhere, in any orientation
- Minimal heading error, course deviation, rudder movement and power consumption with a more comfortable ride
- Minimal commissioning and calibration takes as little as 5 minutes
- One compact, brushless SmartPump fits most hydraulically steered boating applications
- Patented Shadow Drive technology keeps you in control even when autopilot is engaged
- Compatible with steering cylinder sizes from 4-24 cu in; 7 second lock to lock up to 17 cu in
Package Contents:
- Garmin GHP Reactor Hydraulic Autopilot Kit with SmartPump
Be the first to review this product
Garmin GHP Reactor Hydraulic Corepack with SmartPump Unavailable & Discontinued Models
List of Unorderable Models
- Garmin GHP Reactor Hydraulic Corepack with SmartPump 010-00705-65 , MPN: 010-00705-65 , UPC: 753759127862 , Code: GA-F75-010-00705-65
