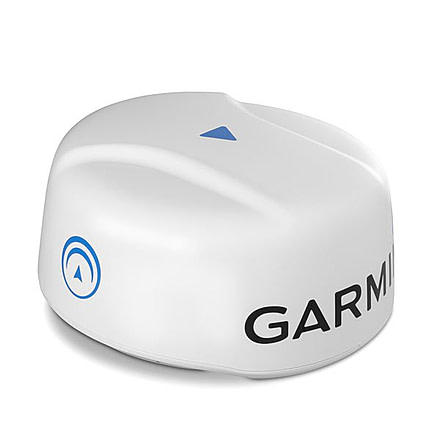

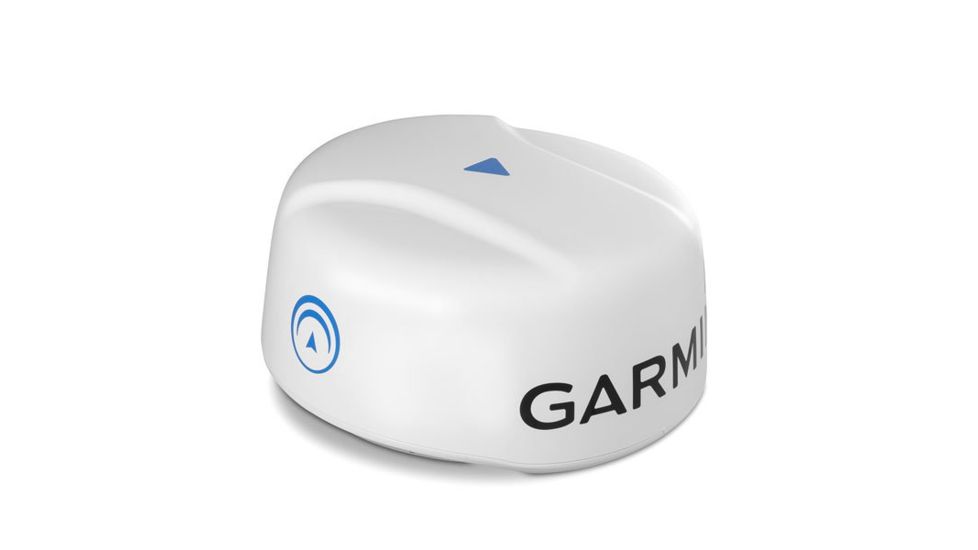

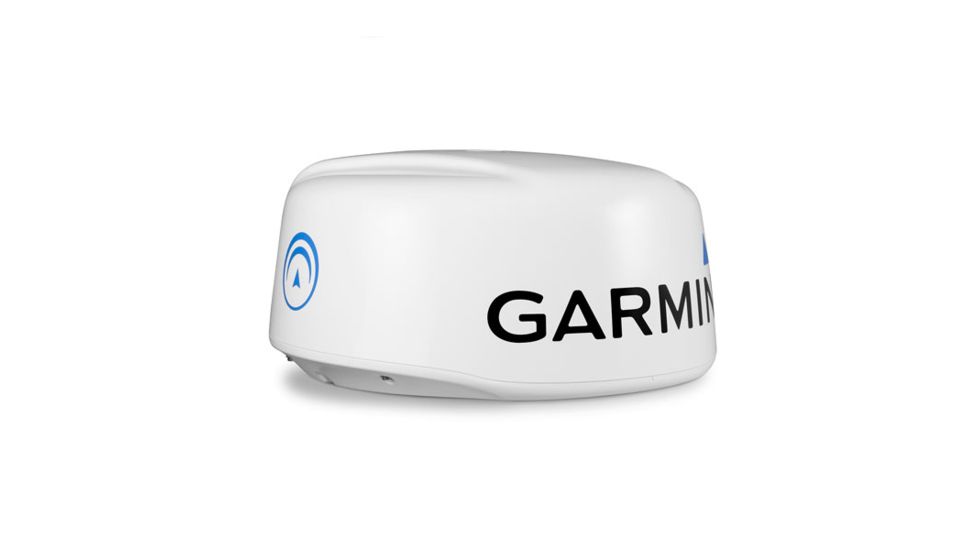

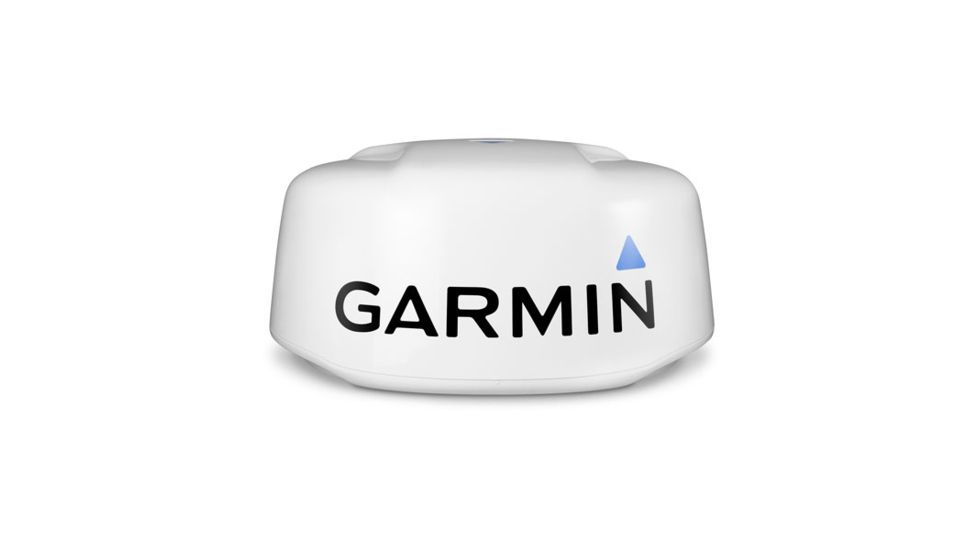

Garmin GMR Fantom 18 010-01706-00,

18-inch Dome Radar with MotionScope Technology

18-inch, 40 W solid-state, dome radar

MotionScope technology uses the Doppler effect to detect and highlight targets moving toward you or away in different colors to help avoid collisions, find flocks of birds, and track weather

Pulse Compression technology provides high resolution while maximizing energy, to enhance detection and identification of targets

Target Size allows you to adjust the size of objects on the radar image

20 foot to 48 nautical mile detection range

Features of Garmin GMR Fantom 18

• General
• Physical dimensions:20" diameter, 9.8" high (50.8 cm diameter, 24.8 cm high)
• Weight:13.6 lbs (6.2 kg)
• Water rating:IPX7
• Power consumption:3 W standby; 18.1-24.4 W transmit
• Antenna length:17" (43.18 cm)
• Rotation speed (RPM):24/48 rpm (dual rotation)
• Transmit power:40W
• Power input:10-32 V DC
• Beam width:5.2 horizontal, 25 vertical
• Maximum range:48 nm
• Minimum range:6 meters
• Radar type:Radome
• Radar Features
• High definition (outstanding target separation with less screen clutter)
• MARPA target tracking (collision avoidance):Yes (Requires Heading Sensor, Sold Separately)
• Guard zone alarm
• Color:8 bit
• Radar overlay support
• Dual range support
• No Transmit Zone
• Additional
• MotionScope: Yes
• Auto Bird Gain: Yes
• Dual Radar Support: Yes
• Echo Trails: Yes

Package Contents:

• Garmin GMR Fantom 18
• GMR Fantom 18
• Mounting hardware kit
• Power cable (15 m/49.21 ft)
• Network cable (15 m/49.21 ft)
• Installation instructions
• Mounting template
