Garmin GMR xHD2, Antenna 010-01333-03,

4-foot Open Array Radar with 6 kW Power

6 kW high-definition radar with 4-foot open array

High sensitivity with 1.8 degree horizontal beamwidth for consistent target positions, excellent target separation and reliable operation

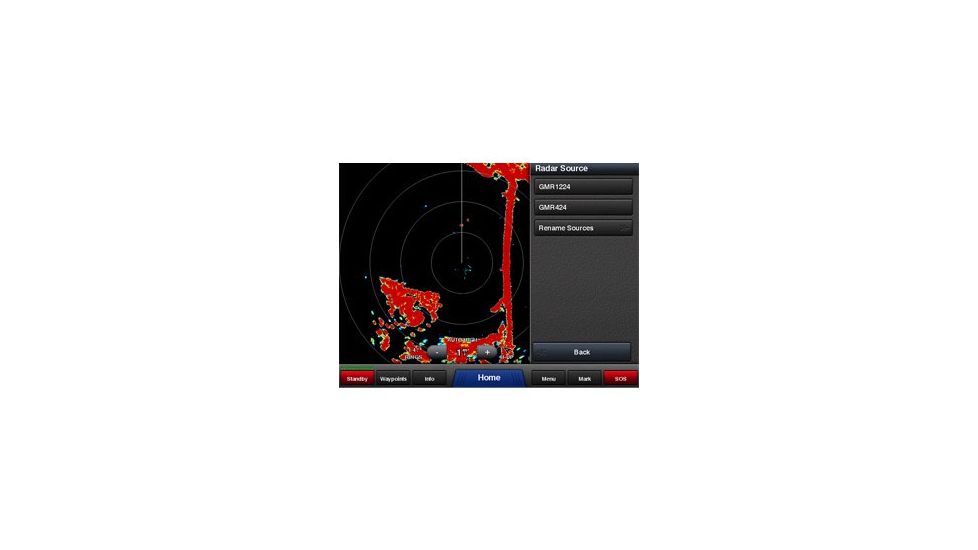

Dual range radar with dual radar support

No complex user settings; easy to install and start using

Quiet rotation and reliable operation

The GMR 624 xHD2 6 kW high-definition 4-foot open-array radar is designed for serious seafarers of larger yachts and sport fishing boats over 40-feet. In situations where space is limited, its 6 kW of power and compact 4-foot antenna combine to provide the high-sensitivity and consistent target positioning you need. Its perfect for cruising and fishing offshore, overnight and in foggy, limited or no visibility conditions.

High-power xHD2 Radar with Narrow 1.8 Degree Beam

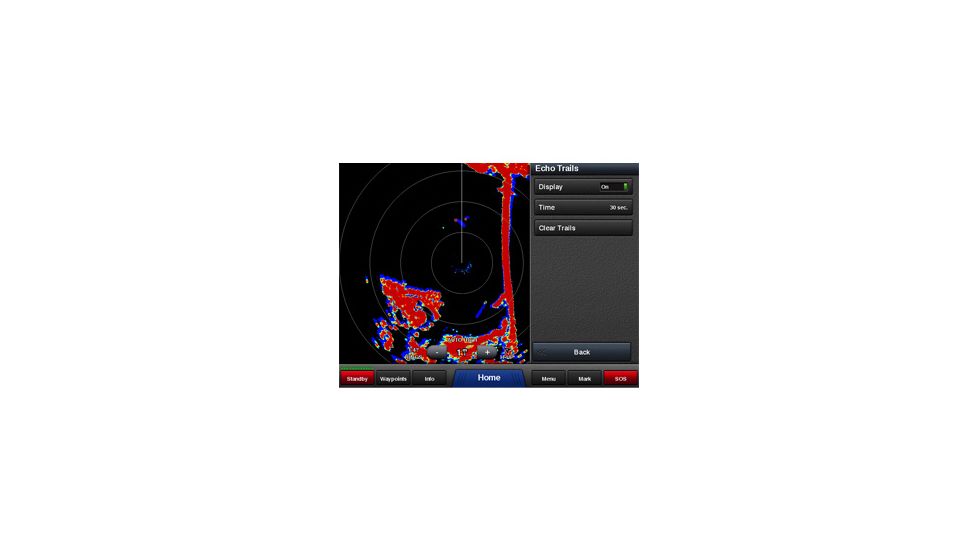

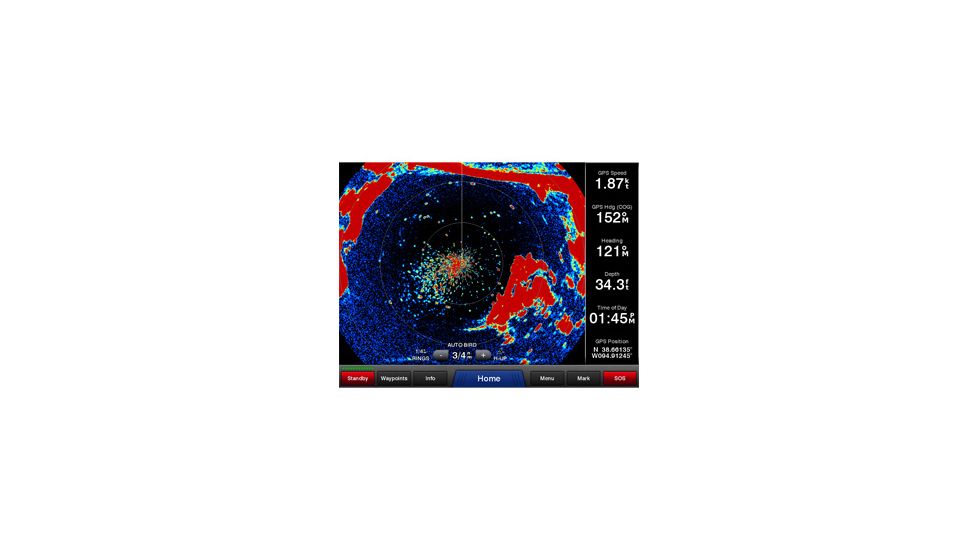

This high-definition 6 kW radar has the power to deliver excellent range, up to 72 nautical miles, even in fog or rain. Its narrow 1.8 degree horizontal beamwidth picks out targets well off in the distance. It paints a clear image of the shoreline, other vessels, and impending weather on your Garmin chartplotter. You get consistent target positions, excellent target separation and reliable operation. Its 8-bit true color imagery also helps you discriminate large targets from small ones and enhances target separation. Rotation speeds of 24 and 48 rpm with a max range scale of 72 nautical miles.

The Power of SimpleRadar

This radar is designed to be easy to install and use. There are no complex user settings to fuss around with, just install it and start using. You can rely on the GMR xHD2 to provide reliable, optimum performance in all conditions.

Vertical Range Scaling

Fits the selected radar range to the vertical size of your display to show more forward looking radar returns on screen and make it easier to interpret target distances.

Dual Range with Overlay

Single radar antenna is capable of providing split screen images on your chartplotter side-by-side, with independent range setting and controls for both close and long range. One or both ranges can also be viewed as a chart overlay.

Features of Garmin GMR xHD2, Antenna

• General
• Physical dimensions: 4' array: 52.25" x 5" x 6.75" (132.7 x 12.7 x 17.1 cm), Pedestal: 20.5" x 12.75" x 12.5" (52 x 32.4 x 31.8 cm)
• Weight : array: 12.2 lb (5.5 kg), pedestal: 47.1 lb (21.4 kg)
• Water rating: IPX6
• Power consumption: 65 W typical
• Antenna length: 48" (121.92 cm)
• Rotation speed (RPM): 24 and 48 rpm
• Transmit power: 6 kW
• Power input: 10-32 V
• Beam width: 1.8 horizontal, 23 vertical
• Maximum range: 72 nm
• Minimum range: 20 meters
• Radar type: Open-Array

Package Contents:

• Garmin GMR xHD2, Antenna
• GMR xHD2
• Mounting hardware kit and template
• Power cable (15 meters)
• Network cable (15 meters)
• Cable grommet
• Documentation
