Garmin GNX Wireless Wind Pack 010-01616-10,

The Information You Need to Set Sail

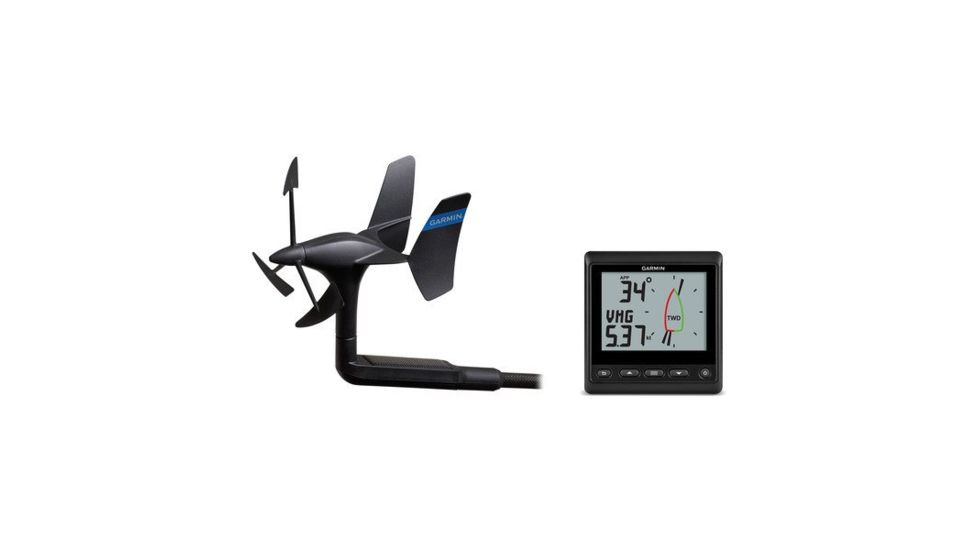

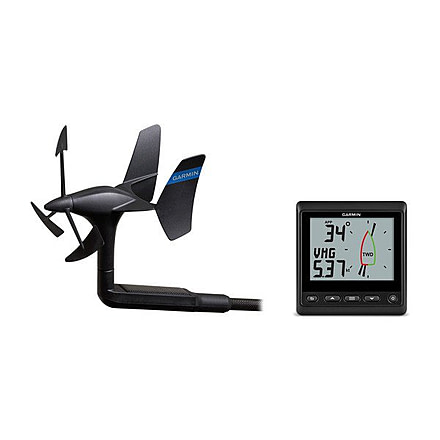

Includes GNX Wind instrument and gWind Wireless 2 transducer

GNX Wind provides 2 data fields and a digital wind rose to simultaneously display true and apparent wind data, Steer Pilot, boat speed and more

Displays true and apparent wind speed and wind angles, true wind direction, boat speed, speed over ground, VMG, heading, course over ground and closed haul

Includes easy-to-install gWind Wireless 2 transducer, which eliminates cables for masts up to 50 feet

Internal solar-charged battery lasts 3 years and is easily replaced

When you have a GNX Wind instrument combined with a gWind Wireless 2 transducer, youll know whats going on with the wind.

Wind Wireless 2 Transducer

Wind Wireless 2 offers an easy-to-install solution that eliminates running wires through masts up to 50 feet. Accurate wind signals are sent via an ANT connection directly to a GNX Wind instrument or to a compatible Garmin GPSMAP chartplotter. The transducer features renowned Nexus twin-fin technology with a 3-bladed propeller, providing accurate wind speed and stable wind angle in lighter wind conditions. Also available in a wide selection of Wind and Sail Packs (sold separately) that can be used as stand-alone wind systems or expanded to full network systems via NMEA 2000.

Features of Garmin GNX Wireless Wind Pack

• gWind Wireless 2 Transducer
• Unit Dimension, WxH: 13.6" x 24" (345 mm x 610 mm)
• Weight: 350 g
• Waterproof: Yes (IPX6)
• Temp Range: From 5F to 158F (-15C to 70C)
• Storage Temperature: From -4F to 176F (-20C to 80C)
• Power Usage: Battery (rechargeable though the solar panel)
• Accuracy Angle: Better than 1.5
• Speed: Better than 3%
• Wind Speed Range: 0. 8-90 knots (0. 4-50 m/s)
• Wireless Connectivity: Yes
• GNX Wind instrument
• Physical dimensions: 4.3" x 4.5" x 1.2" (110 x 115 x 30 mm)
• Display size, WxH: 3.3" x 2.4"; 4.0" diagonal (83 x 60 mm; 101.6 mm diagonal)
• Weight: 8 oz (230 g)
• Water rating: IPX7
• NMEA 2000 certified: Yes
• Power consumption: 0.35 W (day); 0.4 W (night)
• Voltage range: 9-16 V (from NMEA 2000)
• Mounting options: Flush or Flat
• Temperature range: From 5 to 158 degrees F (from -15 to 70 degrees C)
• Compass-safe distance: 8.25" (209 mm)

Package Contents:

• Garmin GNX Wireless Wind Pack
• GNX Wind
• gWind Wireless 2 transducer
• Mast bracket
• Mounting hardware
• NiMH battery
• Documentation
