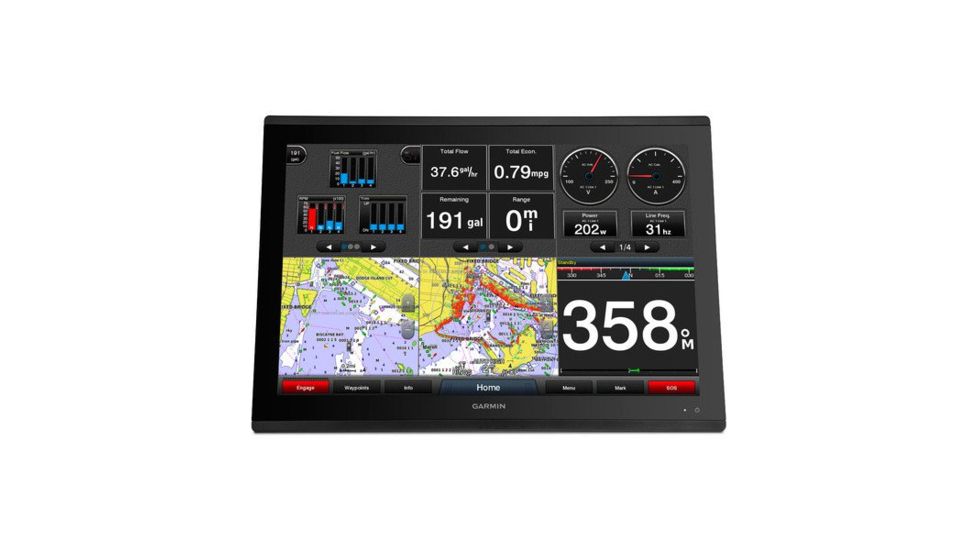

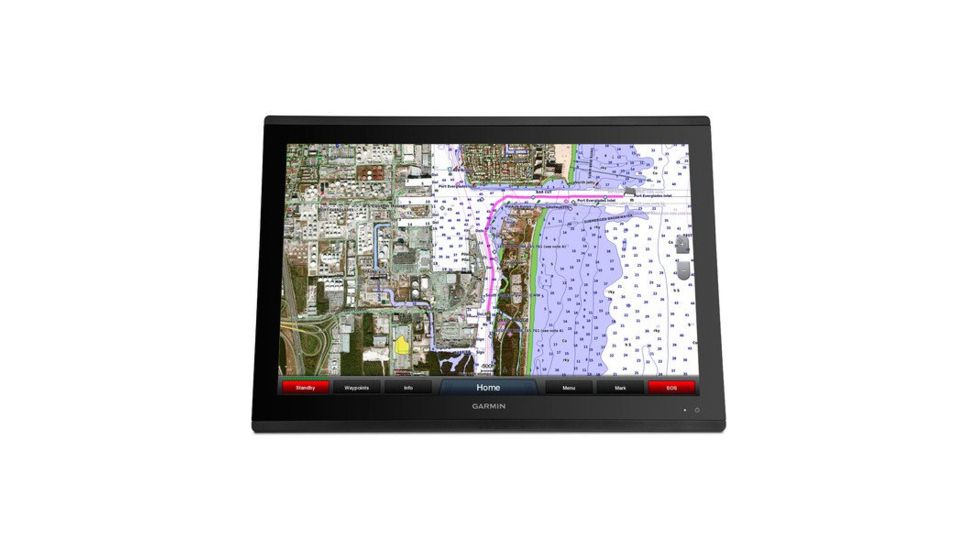

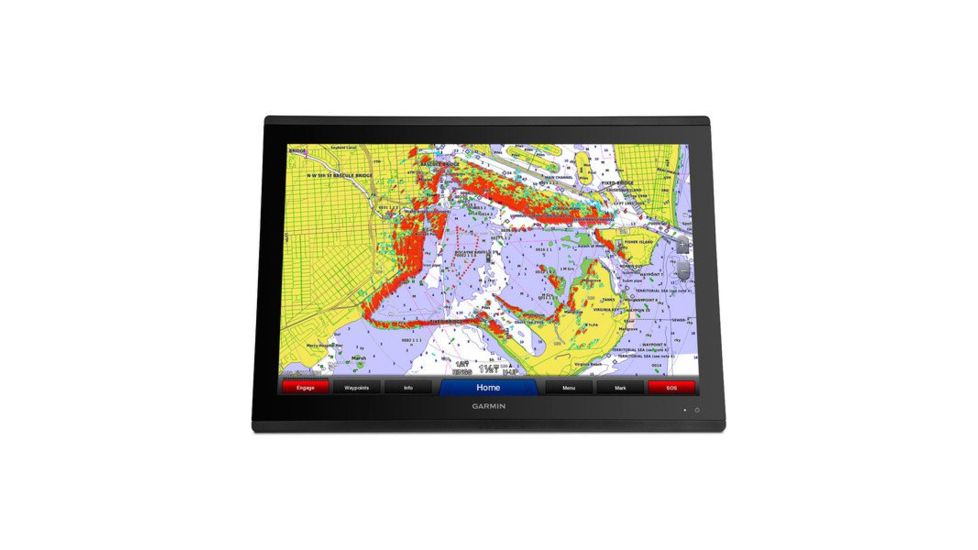

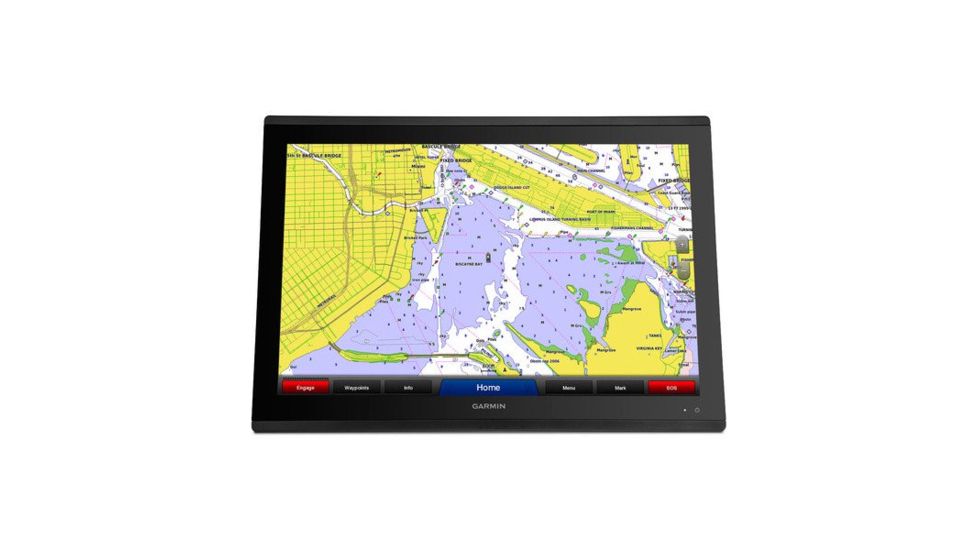

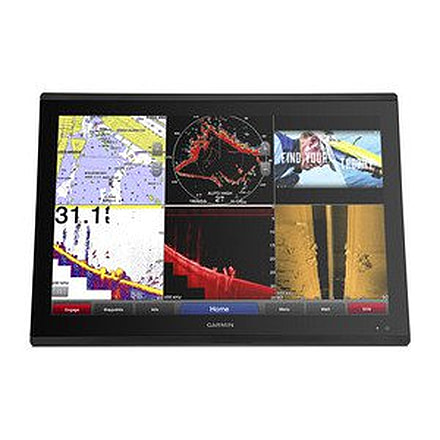

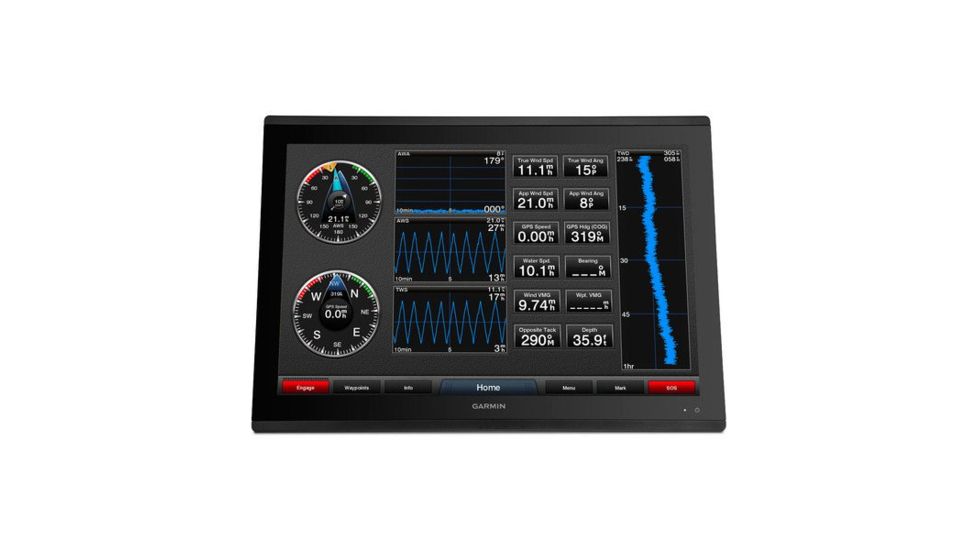

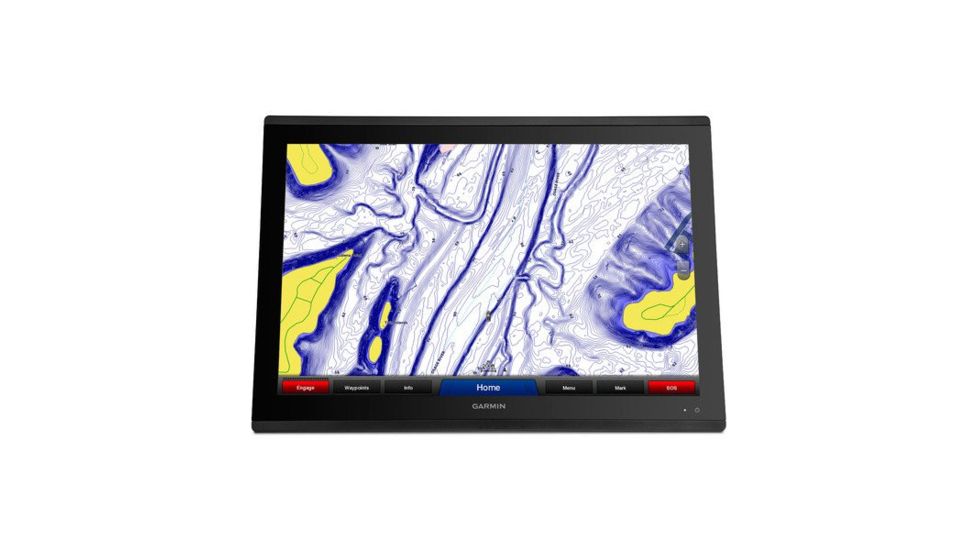

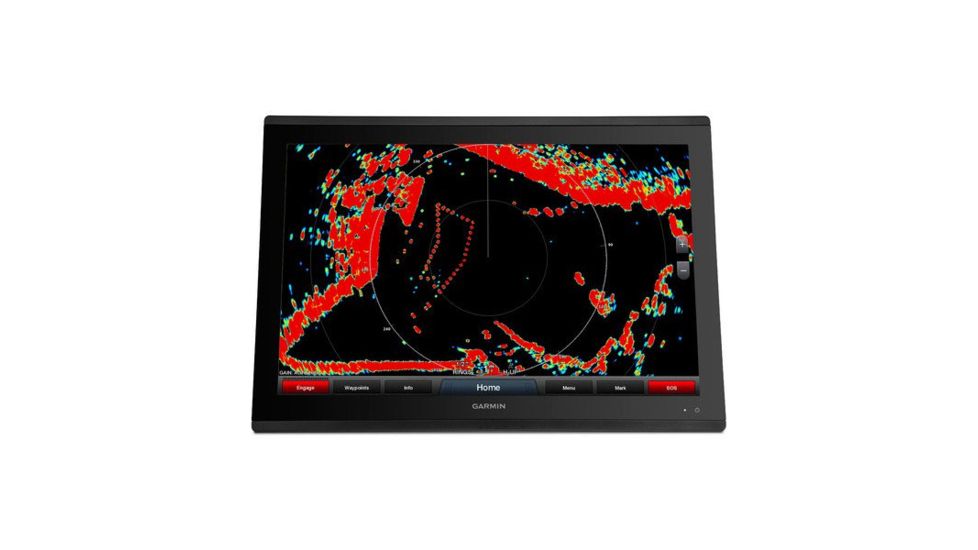

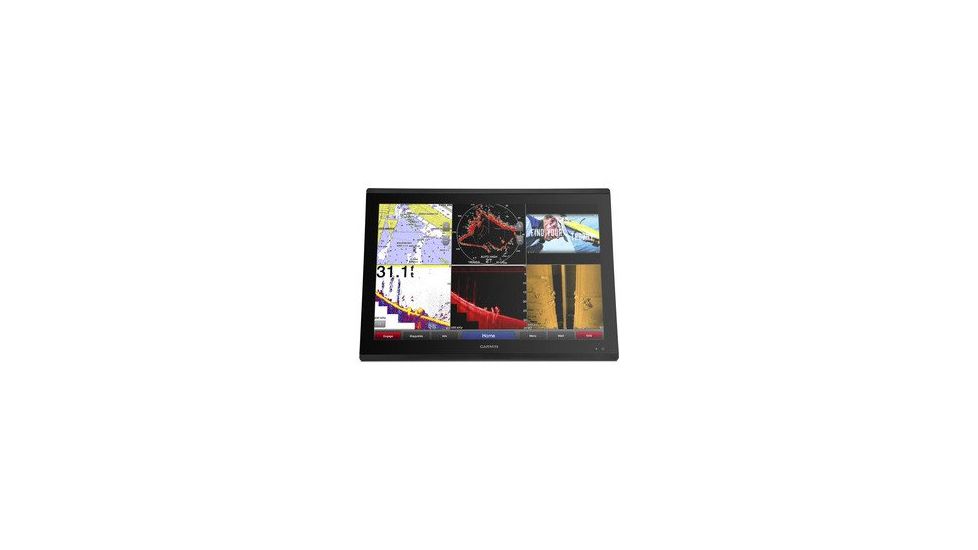

Garmin GPSMAP 8424, Worldwide 010-01512-00,

Take Control of a Beautiful Helm

Premium full HD display with pinch-to-zoom touchscreen control has highest resolution on the marine market

Configure the full system to provide 1-touch setting access for docking, cruising, fishing, anchoring and more

Beautiful glass helm look with ability to install multiple displays either flush or flat mounted edge-to-edge

High-performance processor delivers our fastest map drawing ever and enhanced video processing

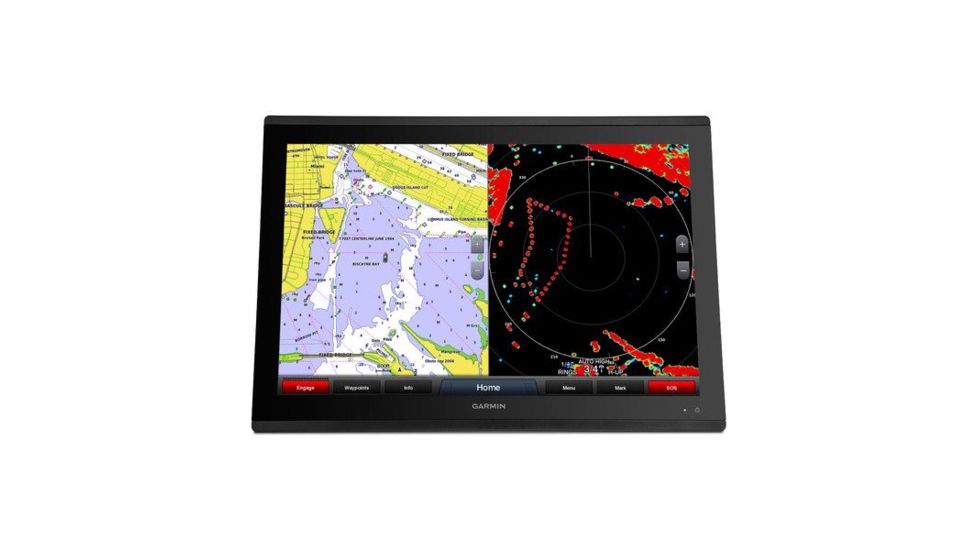

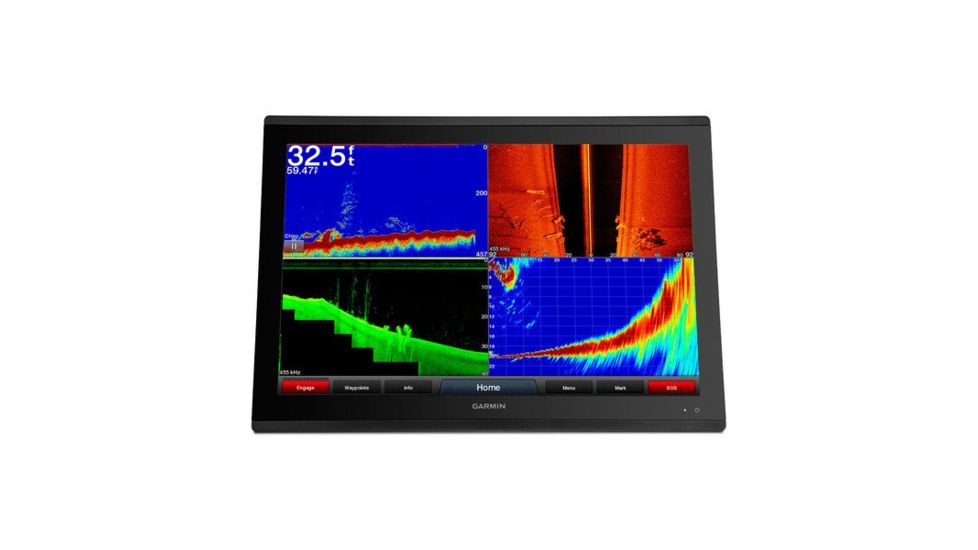

Provides a superior user experience across your entire network for radar, sonar and multimedia

GPSMAP large-format multifunction display features a full HD screen with touch control. Sunlight-readable, anti-glare display is exceptionally easy to view and also includes auto-dimming feature for use in low light or at night. New maximum glass design enables you to experience a beautifully powerful, completely networked helm at your fingertips. In-plane switching (IPS) LCD display an industry first for this class provides consistent, accurate colors from all viewing angles. It also provides standard USB touch output for use as a touchscreen monitor for Windows and Mac operating systems. Install multiple displays with the industrys lowest flush-mount profile or flat mount them edge-to-edge to create a sleek glass helm look. Quick, 1-touch access to the information you need makes boating easier.

Features of Garmin GPSMAP 8424, Worldwide

• General
• Physical dimensions:22.8" x 16.1" x 2.8" (60.0 cm x 41.0 cm x 7.1 cm)
• Display size:20.4" x 12.8" (51.8 x 32.5 cm)
• Display resolution:1920 x 1200 pixels
• Display type:Touchscreen IPS display (anti-glare finish)
• Weight:18.95 lbs (8.60 kg)
• Water rating:IPX7
• Power consumption:Max power usage at 10 Vdc: 87 W
• Typical current draw at 12 Vdc: 6.1 A
• Max current draw at 12 Vdc: 7.6 A
• Antenna:External only
• Mounting options:Flush or Flat
• Receiver:10 Hz high-sensitivity
• Garmin Marine Network ports:4
• Maps & Memory
• Preloaded maps:None
• Accepts data cards:2 SD Cards (with Garmin SD card reader accesory)
• Waypoints:5,000
• Routes:100 (250 waypoints each)
• Track log:50,000 points; 50 saved tracks, with 5000 points each

Package Contents:

• Garmin GPSMAP 8424, Worldwide
• GPSMAP 8424
• Trim piece snap covers
• GPS 19x NMEA 2000 (with pole mount flush mount and under deck mount adapters)
• Protective cover
• Flush mount hardware
• Power cable
• NMEA 2000 2 m backbone/drop cable
• NMEA 2000 6 m backbone cable
• NMEA 2000 power cable
• NMEA 2000 T-connector & terminator kit
• Documentation
