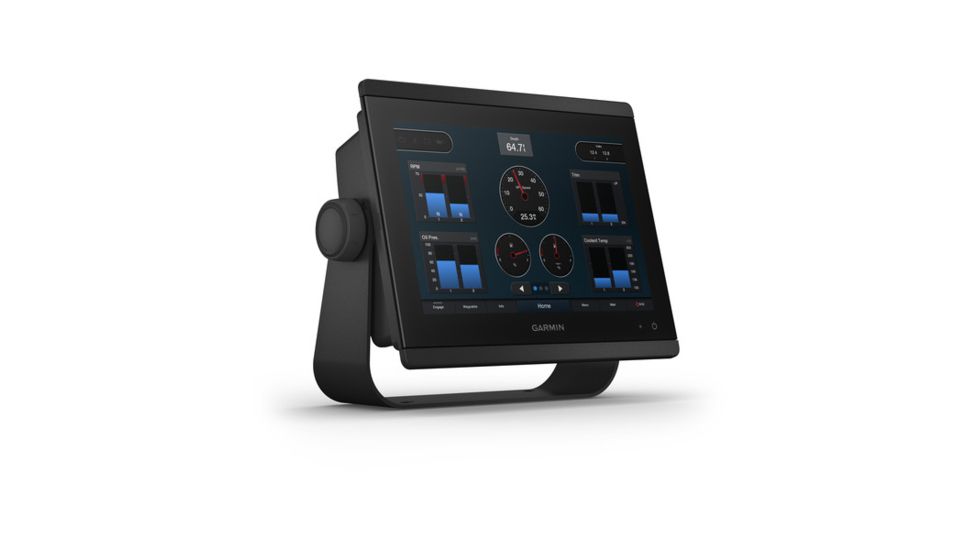

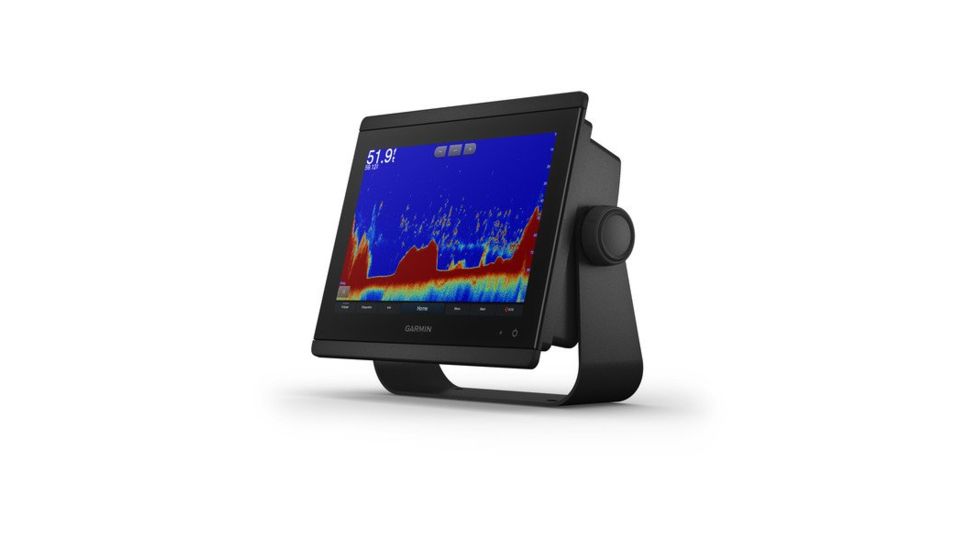

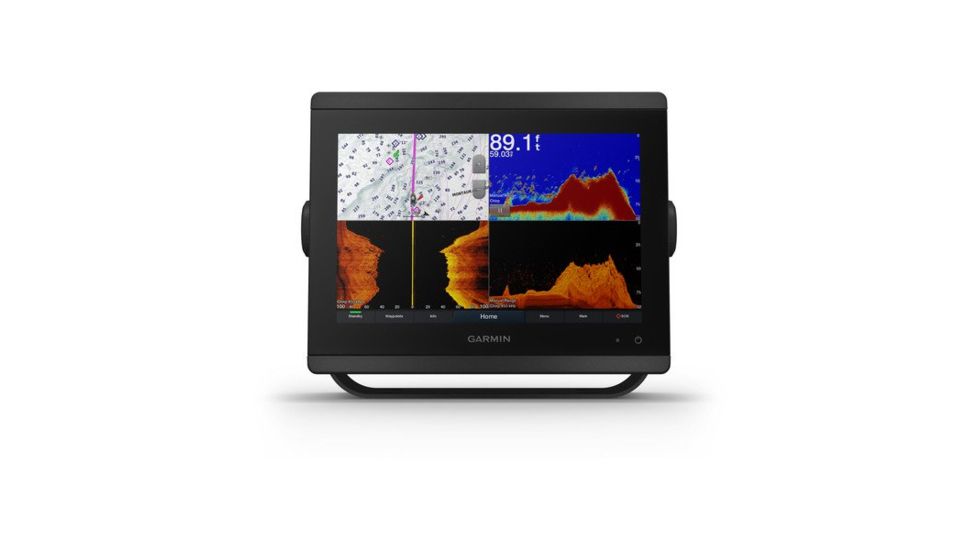

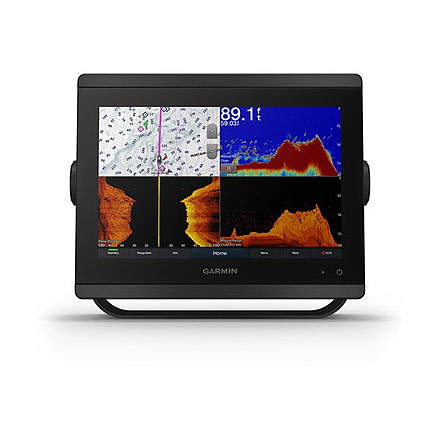

Garmin GPSMAP 8610xsv, US+Canada+Bahamas g2, Lakevu HD 010-02091-03,

Chartplotter/Sonar Combo Is All-in-1 Solution

Color display with keypad interface and multifunction control knob

Built-in support for Garmin CHIRP sonar and CHIRP ClearVu and CHIRP SideVu scanning sonars (transducers sold separately)

Preloaded BlueChart g3 charts and LakeVu g3 maps

High-sensitivity internal 10 Hz GPS and GLONASS receiver

Fully network capable for Garmin Marine Network and NMEA 2000 connectivity plus NMEA 0183 support

Experience an advanced all-in-one solution with our GPSMAP keyed combo. It has built-in support for Garmin CHIRP sonar and CHIRP ClearVu and CHIRP SideVu sonars. Theres also built-in support for Panoptix all-seeing sonar, including Panoptix LiveScope and a wide range of other transducers (sold separately). Features include a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.

Features of Garmin GPSMAP 8610xsv, US+Canada+Bahamas g2, Lakevu HD

• General
• Physical dimensions:10.25" x 8.0625" x 2.95" (25.9 cm x 20.5 cm x 7.5 cm)
• Display size:8.6" x 5.4" (21.8 cm x 13.7 cm)
• Display resolution:WUXGA; 1920 x 1200 pixels
• Display type:touchscreen IPS display (anti-glare finish)
• Weight:5.2 lbs (2.4kg)
• Water rating:IPX7
• Polarized Support:
• J1939 Compatible:
• Power consumption:2.7 A
• Antenna:Internal or external over NMEA 2000
• Mounting options:Bail, flat or flush (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.)
• Receiver:10 Hz GPS/GLONASS/Galileo
• Garmin Marine Network ports:2
• Maps & Memory
• Preloaded maps:BlueChart g3 and LakeV g3
• Accepts data cards:2 microSD cards (on back)
• Waypoints:5,000
• Routes:100 (250 waypoints each)
• Track log:50,000 points; 50 saved tracks

Package Contents:

• Garmin GPSMAP 8610xsv, US+Canada+Bahamas g2, Lakevu HD
• GPSMAP 8610xsv
• Power cable
• NMEA 2000 drop cable
• NMEA 2000 T-connector
• Bail mount with knobs
• Flush mount kit
• Sun cover
• Trim piece snap covers
• Documentation
