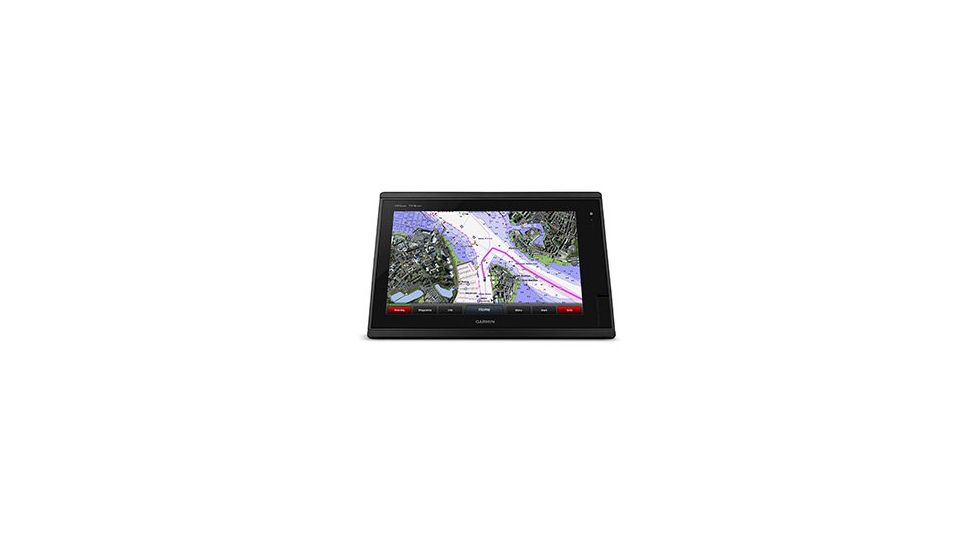

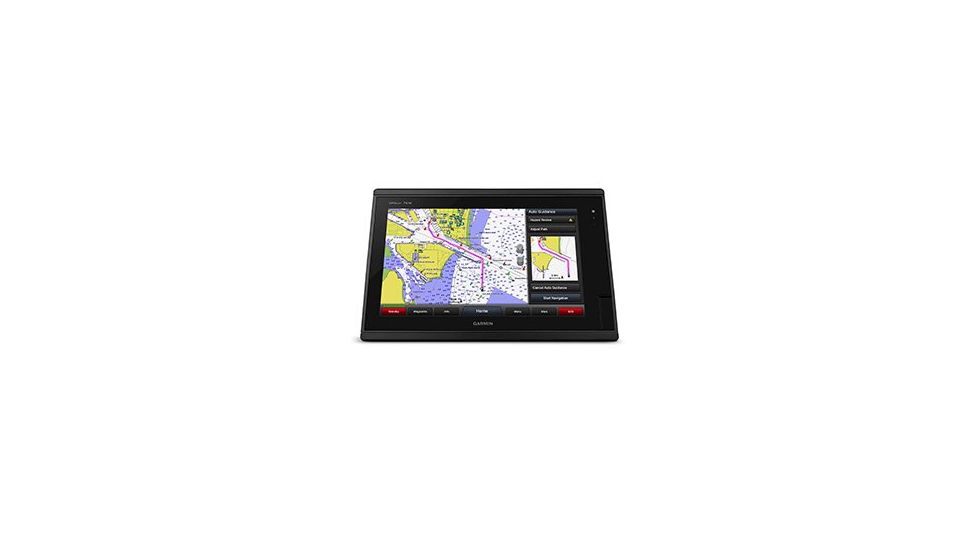

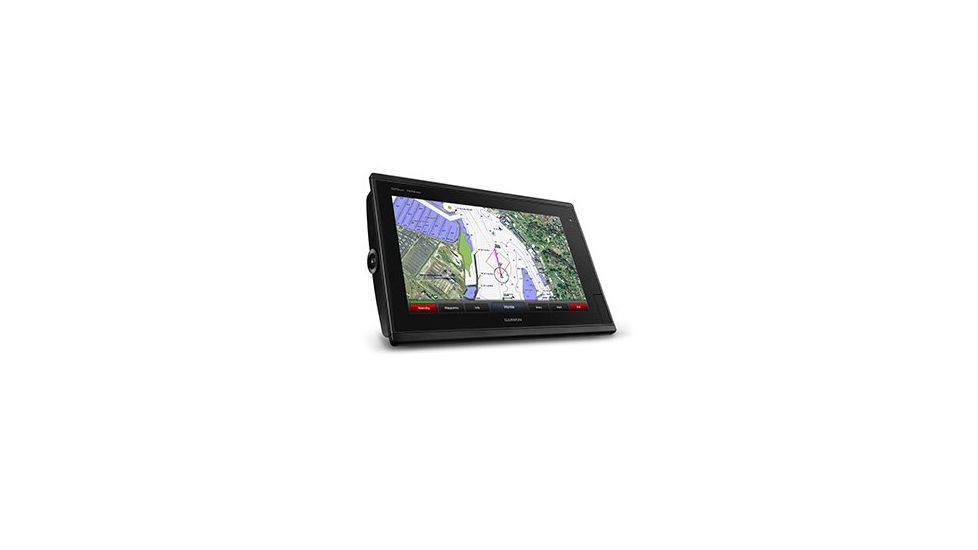

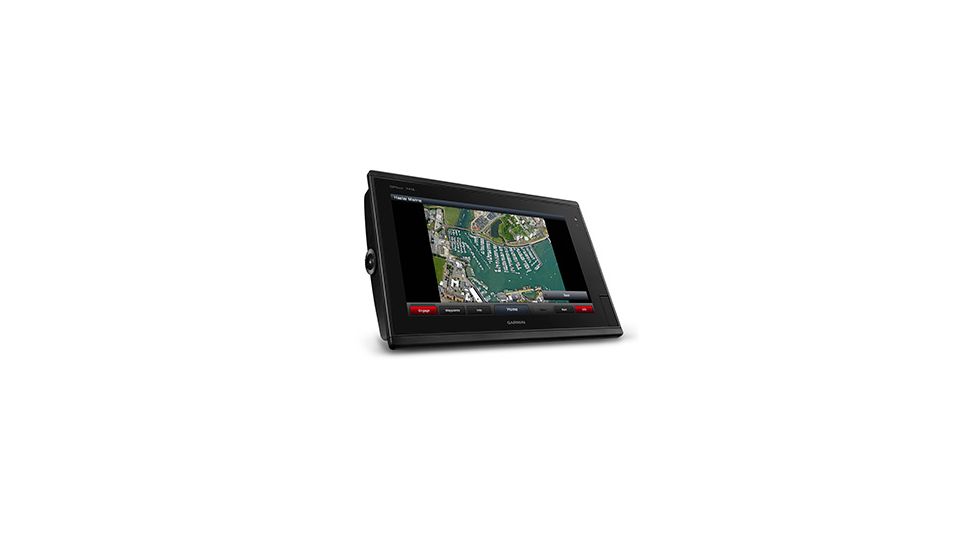

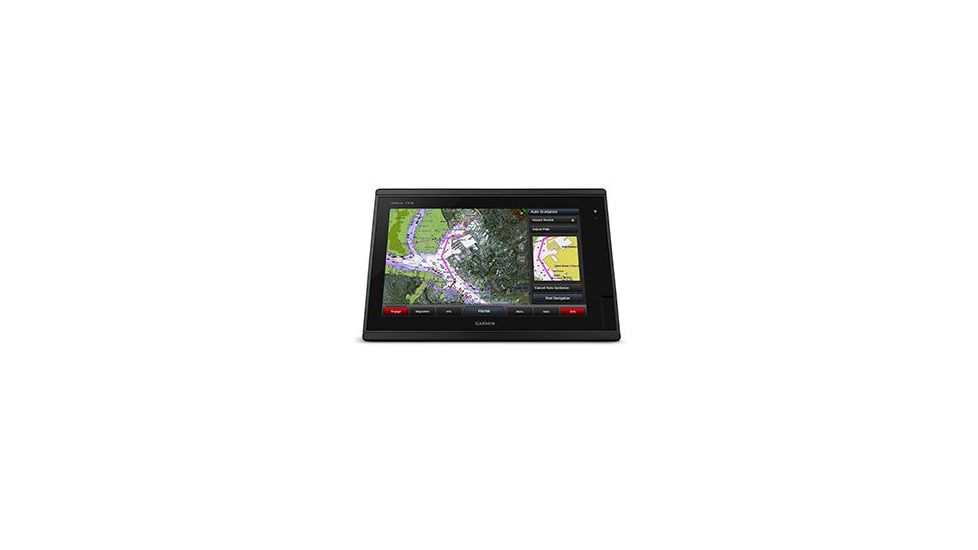

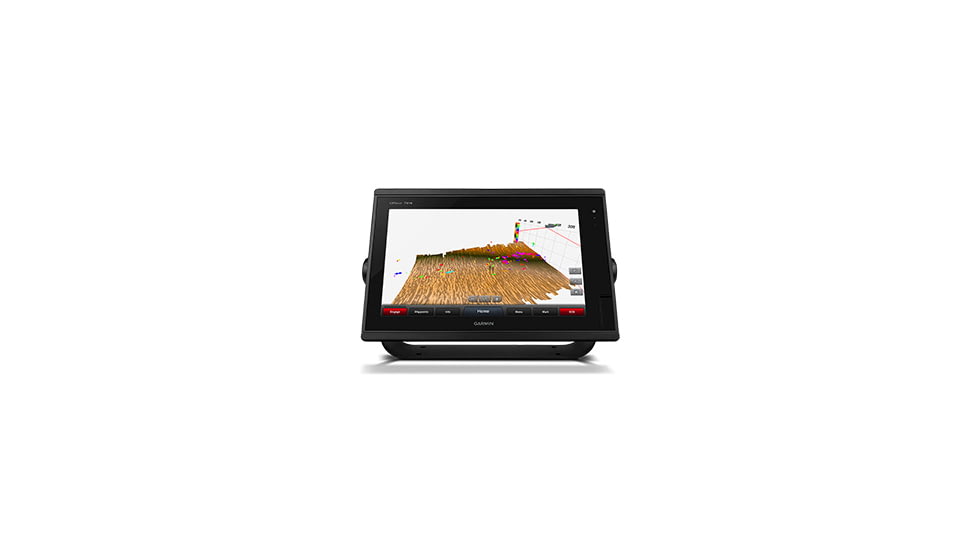

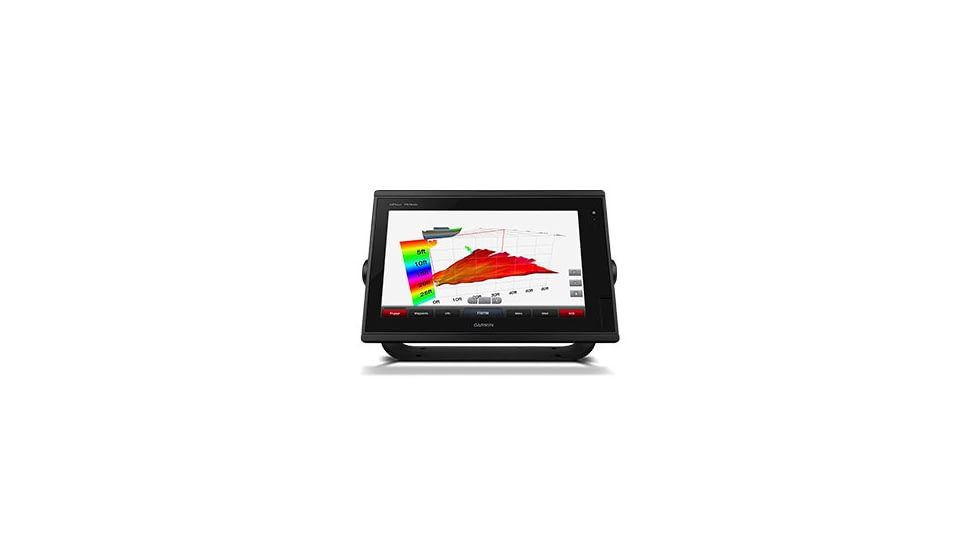

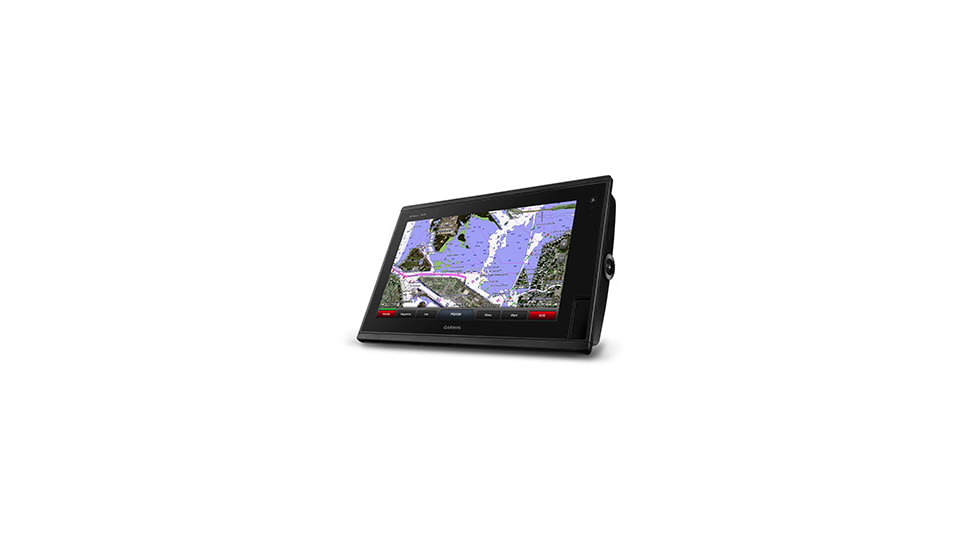

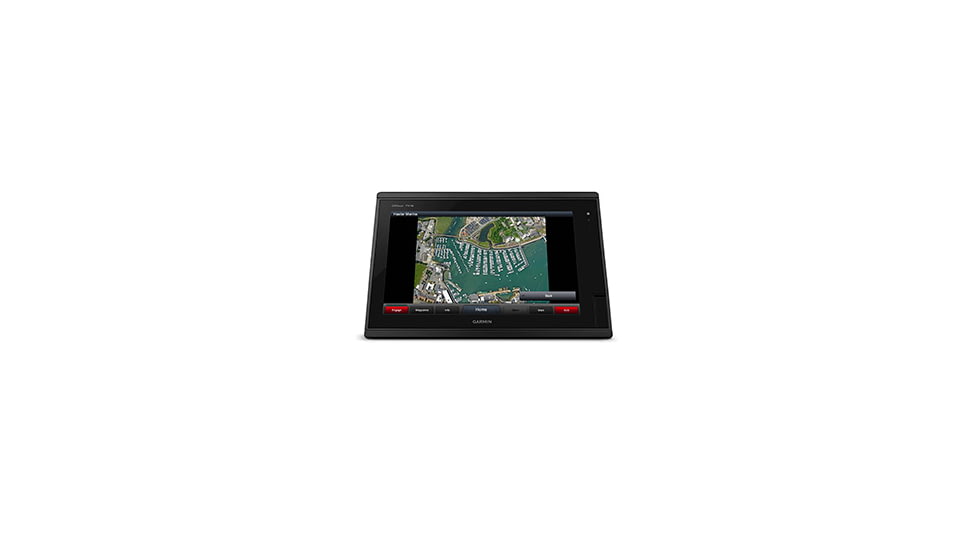

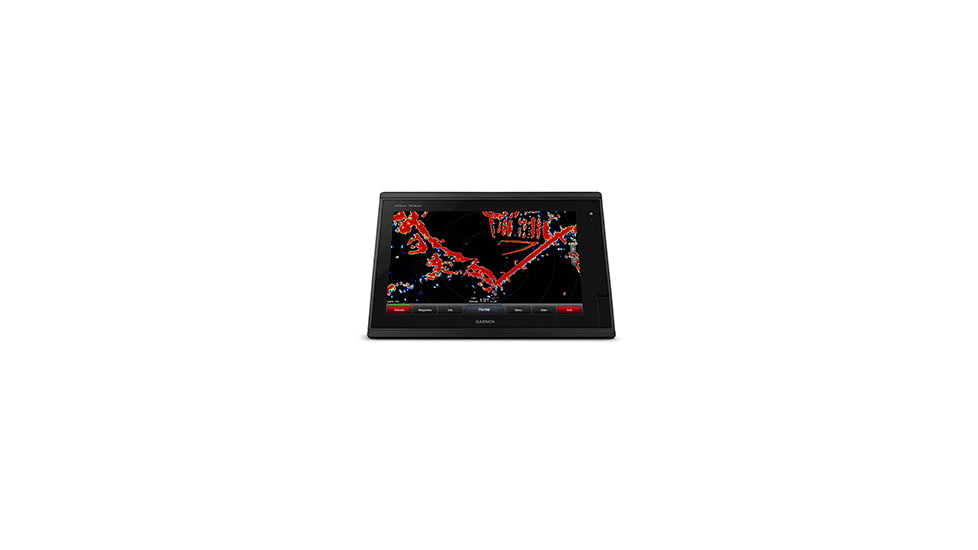

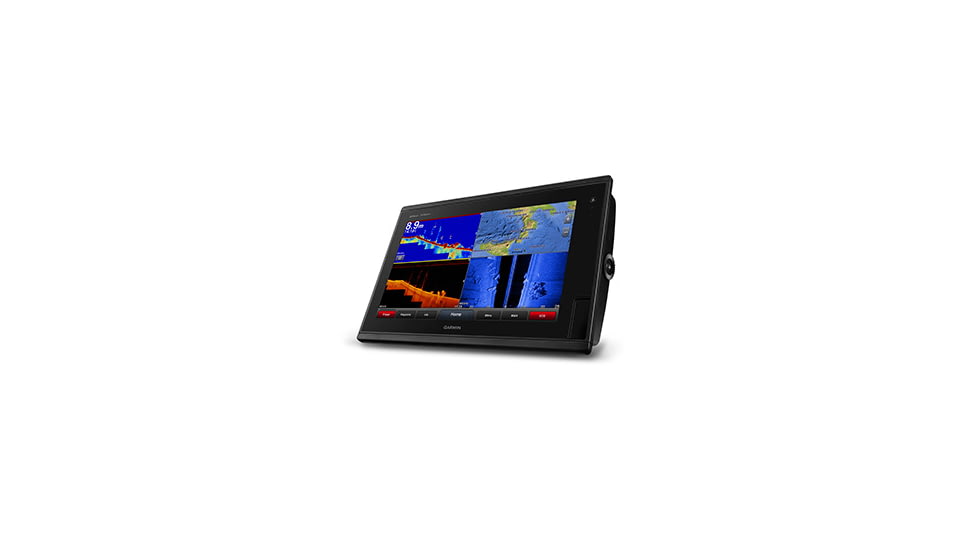

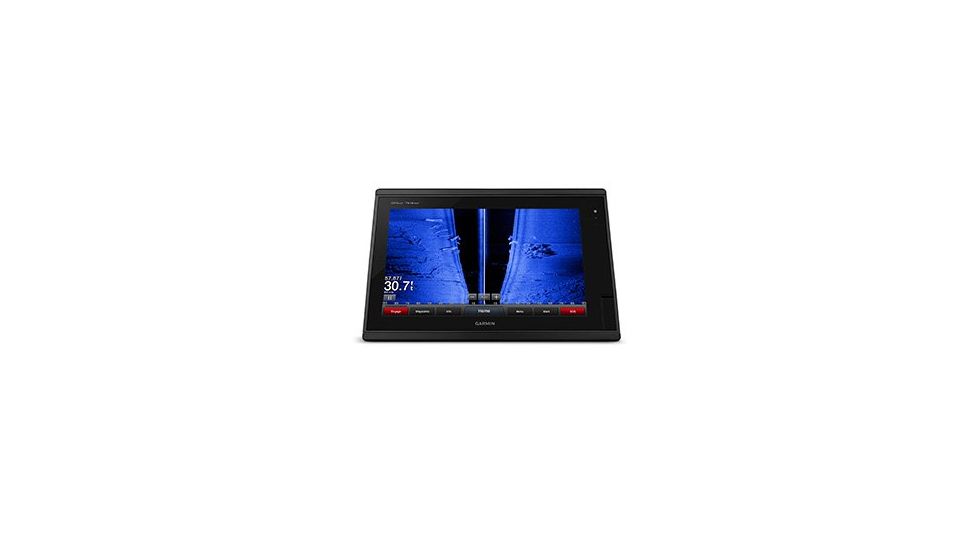

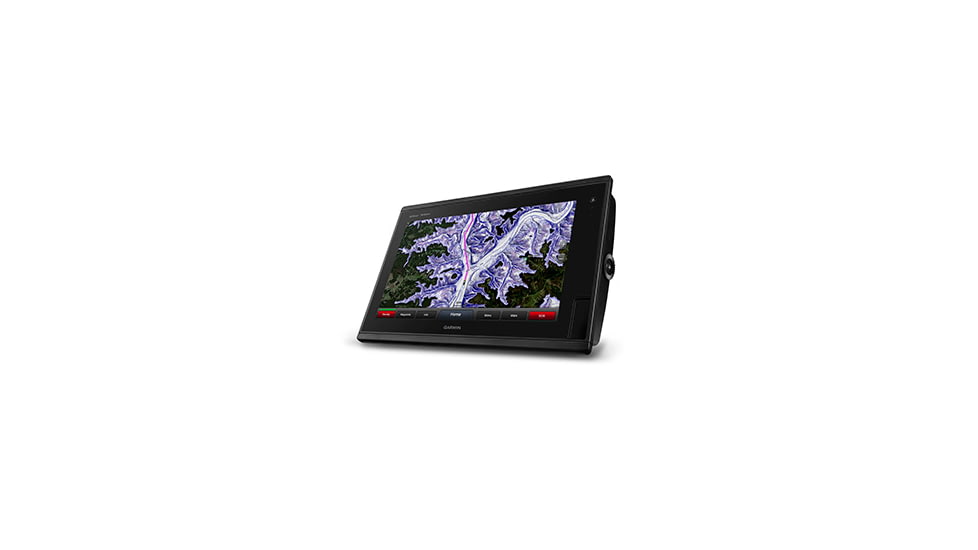

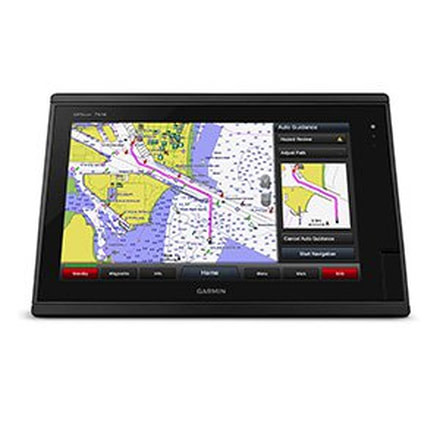

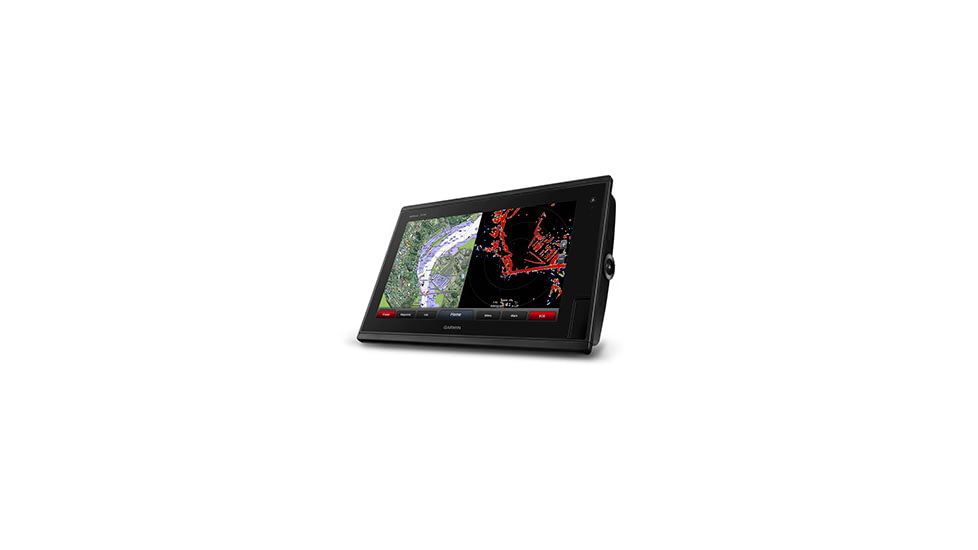

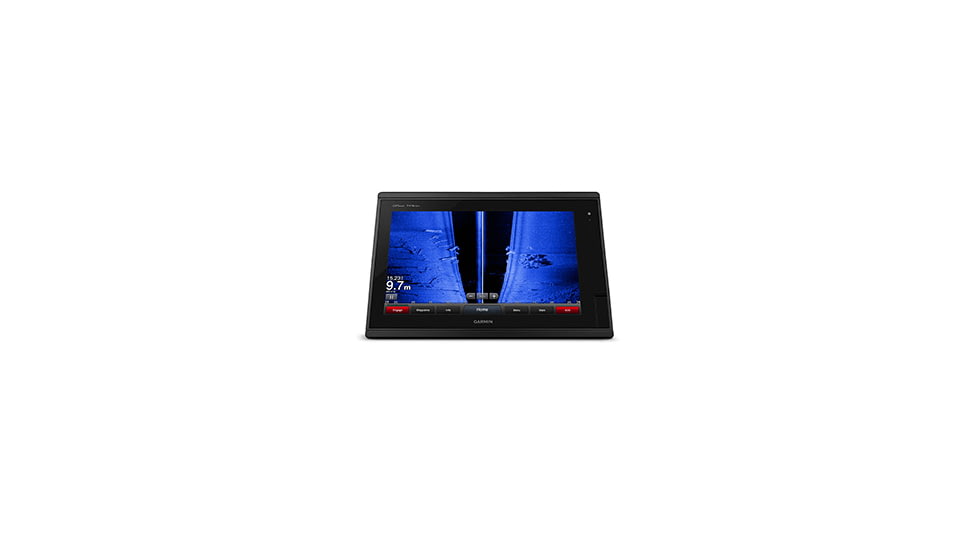

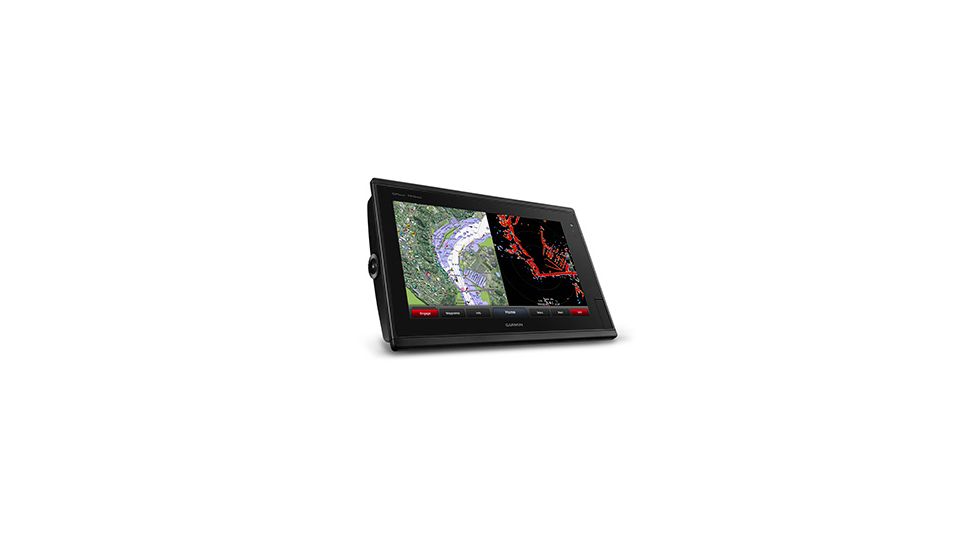

Garmin GPSMap J1939, 16in ,

16-inch Fully-network Capable Chartplotter

16-inch multi-touch widescreen display (1366X768 WXGA)

High-sensitivity internal 10 Hz GPS/GLONASS

Fully network capable for Garmin Marine Network and NMEA 2000, plus NMEA 0183 support

Supports premium GSD sonar module and GCV scanning sonar module

Advanced sailing and sail racing features

Garmin Marine Network and NMEA 2000 Support

Full-network compatibility allows you to add more to your boat. GPSMAP supports radar, autopilot, instruments, multiple screens, FUSION-Link, sensors, remote sonar modules, digital switching, thermal cameras, GRID and more.

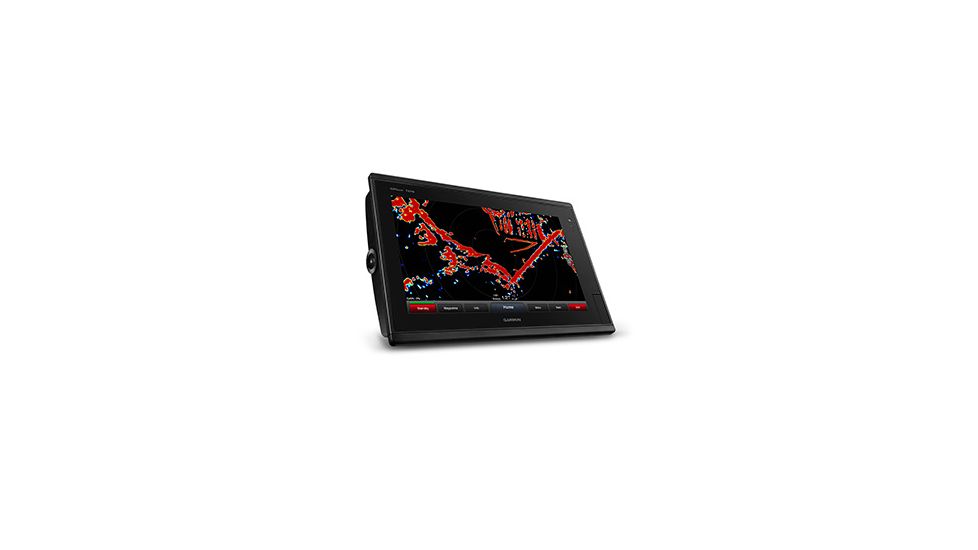

Add Array or Dome Radar

You can add your choice of Garmin marine radar, including our powerful xHD2 open array radars or xHD dome radars that pair ease of use with advanced open array features.

Network Sharing

GPSMAP allows you to share features with other compatible GPSMAP units, such as radar, supplemental maps and user data, including waypoints, routes and tracks. User data entered into 1 chartplotter can be automatically synced with other chartplotters in a network.

Special Sailing Features

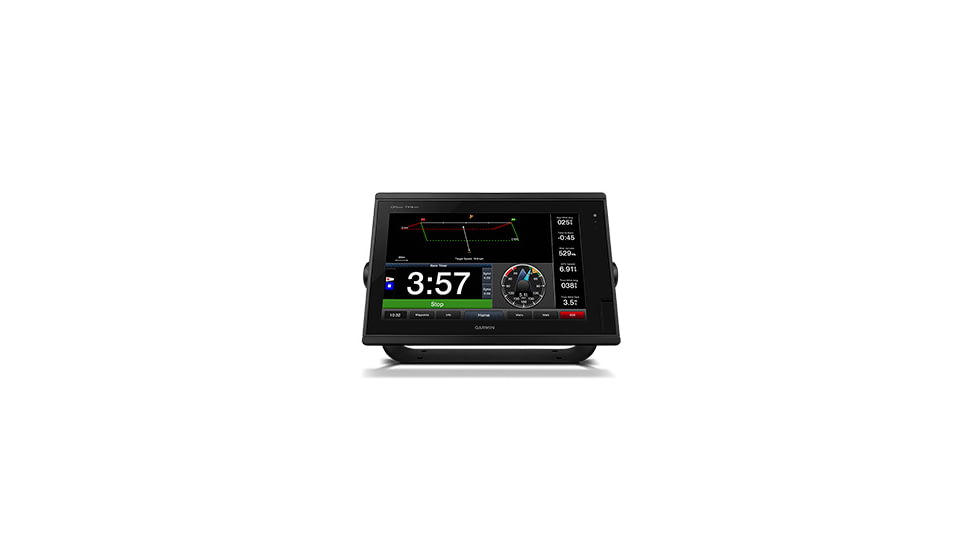

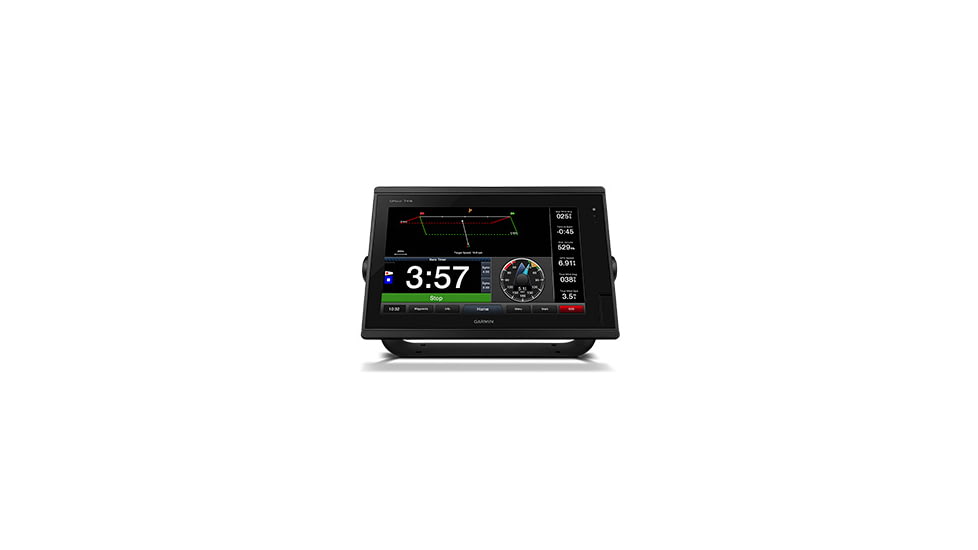

Supported sailing features include laylines, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider. Racing features include pre-race guidance, synchronized race timer, virtual starting line, time to burn and lay line data fields. Gauge displays are designed to provide important need-to-know information at a glance, including true and apparent wind angle, set and drift, true or apparent wind speed, horizontal or vertical graphs, and a data bar with customizable data fields.

FUSION-Link Entertainment System

Enjoy the ability to control all compatible FUSION-Link-enabled audio systems directly from your compatible chartplotter display.

Commission Autopilot from Chartplotter

To make commissioning easier and more convenient, you can handle the entire autopilot commissioning process from your chartplotter screen.

Axis and FLIR Camera Support

Garmin offers support for select Axis cameras and for select FLIR cameras. These can be used for surveillance and situational awareness on vessels of any size. You can control your camera's pinch-to-zoom and pan/tilt settings with gestures directly on the plotter screen and view video on multiple screens as well as multiple video streams on the same screen. Use an Axis encoder to convert analog camera, such as Garmin GC 10, to video over IP.

Catch All the Action On the Water

This chartplotter supports wireless connections to Garmin VIRB X and XE action cameras so you can catch all the action during your time on the water. More importantly, with a simple software update, you can control recordings, take still pictures, and stream video from a VIRB X/XE action camera to your GPSMAP 7400/7600 series chartplotter or 8000/8400/8600 series Glass Helm chartplotter. In fact, you can stream video from up to 4 VIRB X/XE action cameras and view the video on a compatible marine chartplotter. You can even view previously captured images and videos on the chartplotter and display thumbnail previews for easy selection. Control play, pause, seek and replay from your chartplotter. Theres even an automatic slide show mode and the ability to delete unwanted VIRB images or videos. Each VIRB can be named for easy identification. You can also control your VIRB cameras to change VIRB video settings, including aspect ratio, video resolution, frames per second, photo size, field of view and more directly from the marine chartplotter. Send NMEA 2000 boat information from the chartplotter to VIRB X/XE to be overlaid as G-Metrix data on the video using VIRB Edit or the VIRB mobile app. Some data requires optional accessories.

Features of Garmin GPSMap J1939, 16in

• General
• Physical dimensions:16.8" x 10.8" x 3.4" (42.7 x 27.4 x 8.6 cm)
• Display size:13.6" x 7.6"; 15.6" diagonal(34.5 x 19.3 cm; 39.6 cm diagonal)
• Display resolution:1366 x 768 pixels
• Display type:WXGA display
• Weight:9.5 lbs.
• Water rating:IPX7
• Power consumption:Max power usage at 10 Vdc: 57.2 W
• Typical current draw at 12 Vdc: 3.8 A
• Max current draw at 12 Vdc: 5.2 A
• Antenna:Internal with external connection
• Mounting options:Flat and flush, bail with optional accessory (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.)
• Receiver:10 Hz high-sensitivity
• Garmin Marine Network ports:2
• Maps & Memory
• Accepts data cards:2 SD cards
• Waypoints:5,000
• Routes:100
• Track log:50,000 points; 50 saved tracks
• Additional
• User interface: Multi-touch touchscreen
• Auto backlight dimming: Yes
• Supplemental map sharing: Yes
• Internal sonar sharing: Yes, recieve only
• J1939 connector

Package Contents:

• Garmin GPSMap J1939, 16in
• GPSMAP J1939
• GPSMAP with preloaded map
• J1939 connector which offers a dedicated CAN port for receiving engine data
• Power/data cable
• NMEA 2000 drop cable
• T-connector
• Bail mount with knobs
• Flush mount kit
• Protective cover
• Documentation
• GPSMAP
• GPSMAP preloaded with Map
• Power/data cable
• NMEA 2000 drop cable
• T-connector
• Bail mount with knobs
• Flush mount kit
• Protective cover
• Documentation
