Product Info for Garmin GRID 20
Sit Back and Take Control![]()
Provides intuitive, easy-to-use remote access and control of your entire Garmin marine system
360-degree, all-in-one joystick with a rotary knob and push-to-select button
Enables easy chartplotter menu/setting navigation and fine control, even in the worst conditions
4 favorite keys can be designated to restore your system to a previously saved configuration
Allows wired or wireless installation options
The easy-to-use GRID 20 remote input device provides intuitive remote access and control of your entire Garmin marine system. It features a 360-degree joystick with a rotary knob and push-to-select button for easy chartplotter menu/setting navigation and fine control, even in the worst conditions. You can designate 4 favorite keys to restore your system to a previously saved configuration. There are also a variety of hard keys for quick access to important functions, including left and right screen switches, autopilot standby/engage and more. For peace of mind, theres also a dedicated SOS key. Wired or wireless installation and vertical or horizontal options allow for a plug-and-play solution that is tailored to your marine system. Its small footprint makes it convenient to integrate into a busy helm between displays or even into the arm of the captains chair.
Specifications for Garmin GRID 20:
| Manufacturer: | Garmin |
| Color: | Black |
Features of Garmin GRID 20
- Dimensions (WHD):5.6 x 2.2 x 2.7 (14.1 x 5.6 x 6.8 cm)
- Weight: 6.3 oz (179 g)
- Temperature range: From 5 to 158F (from -15 to 70C)
- Material: Fully gasketed, high-impact plastic
- Water rating: IPX7
- Compass-safe distance: 4.5 (114 mm)
- Power input:
- NMEA 2000
- -or-
- Wired power (with included power cable):
- Input power: 9-32 V dc
- Fuse: 1.0 Amp, Fast Blow
- Maximum power usage at 9 V dc: 1.5 W
- Typical current draw at 12 V dc: 40 mA
- Maximum current draw at 12 V dc: 120 mA
- -or-
- 2x AA battery powered (not included)
Package Contents:
- Garmin GRID 20
- GRID 20
- Mounting hardware
- Power cable
- Documentation
Be the first to review this product
Garmin GRID 20 Orderable Models
List of Orderable Models

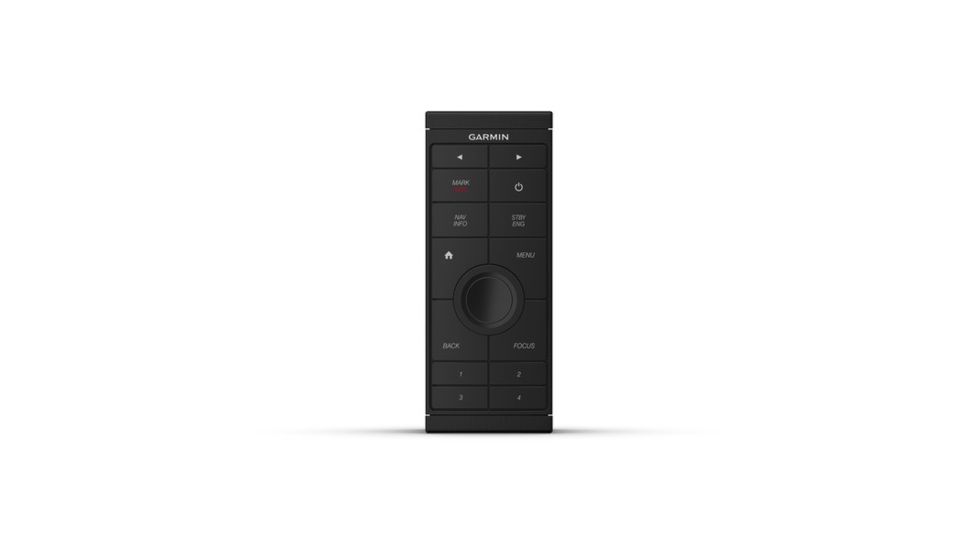

- Garmin GRID 20, Vertical Portrait, 010-02011-00 , MPN: 010-02011-00 , UPC: 753759204945 , Code: GA-F75-GARGRID20-010-02011-00

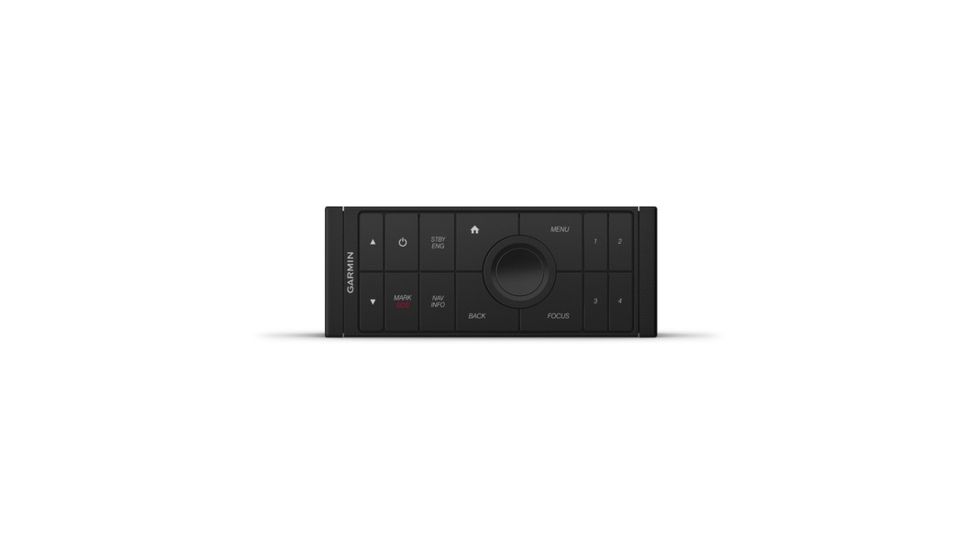

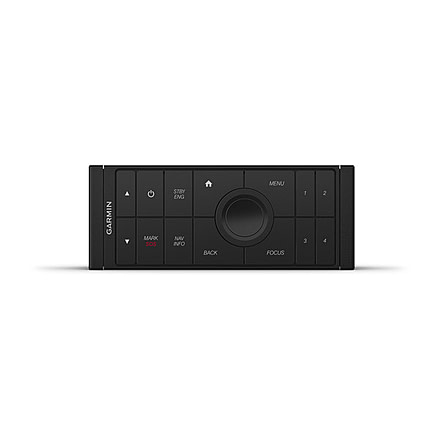

- Garmin GRID 20, Horizontal Landscape, 010-02011-01 , MPN: 010-02011-01 , UPC: 753759204952 , Code: GA-F75-GARGRID20-010-02011-01
