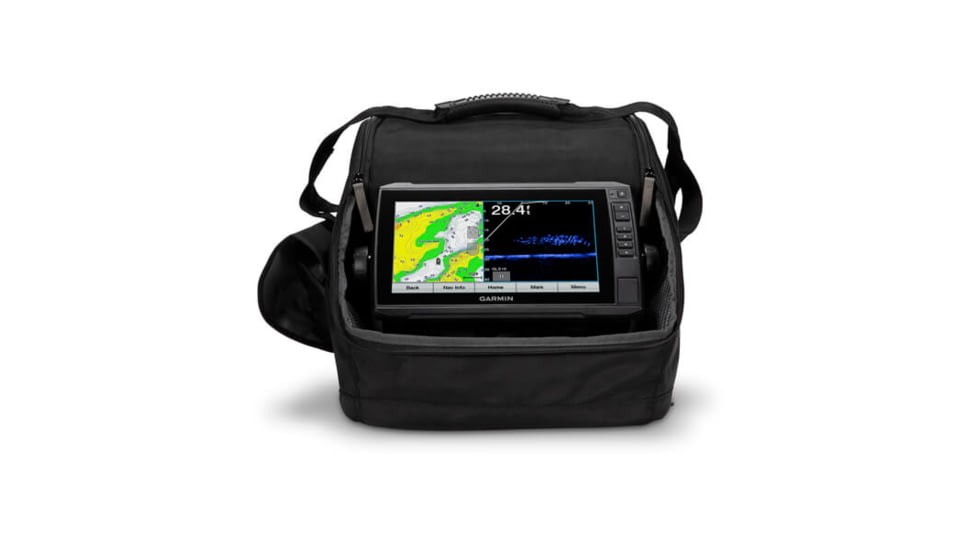

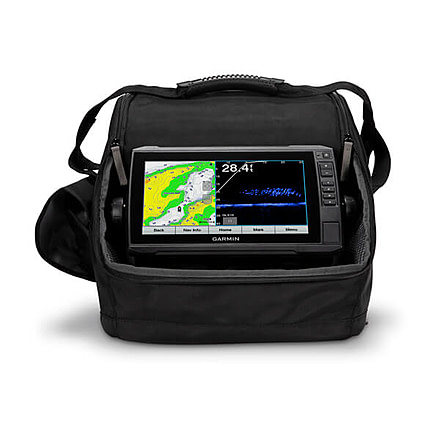

Garmin Panoptix LiveScope Ice Fishing Bundles 010-02342-15,

ECHOMAP UHD

Revolutionary real-time sonar pairs with a large ECHOMAP UHD 93sv combo touchscreen display, allowing you to see up to 200 in any direction.

TWO MODES, ONE TRANSDUCER

Adapt your fishing technique with a Panoptix LiveScope system, which offers two scanning sonar modes. The bundle also includes a battery, charger and swivel pole mount.

LIVESCOPE FORWARD

LiveScope Forward sonar shows up to 200 all around you and below the ice, so you can locate schools of fish and know where to drill the next hole.

LIVESCOPE DOWN

LiveScope Down sonar shows moving sonar images of what is below the ice, so you can watch fish respond to your jig.

LAKEV G3 MAPS

The unit comes preloaded with LakeV g3 maps with integrated Navionics data, covering more than 18,000 lakes in the U.S.

BUILT-IN FLASHER

The built-in flasher provides accurate jig and fish detection as they swim into the sonar beam.

CUSTOM COMBOS

You can create custom pages that combine Panoptix sonar, flasher and map on your display.

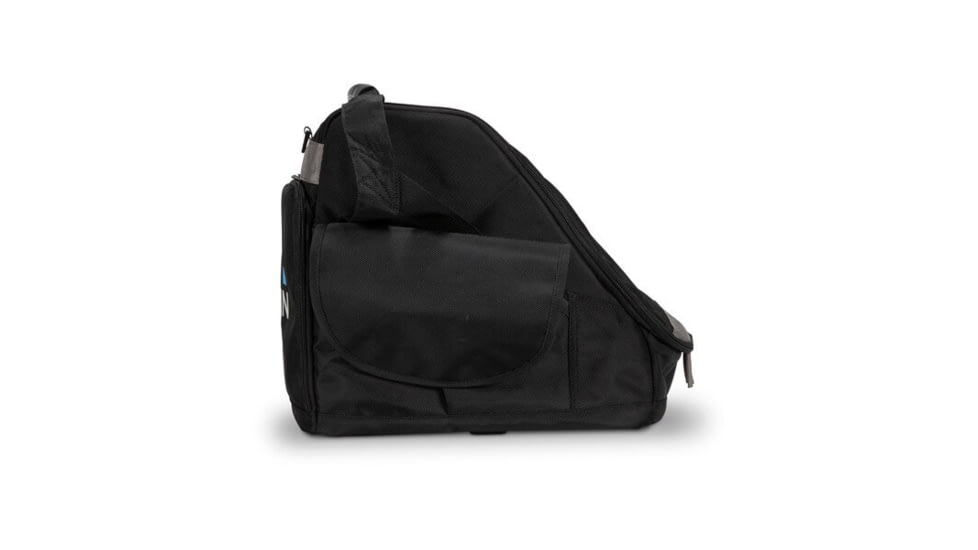

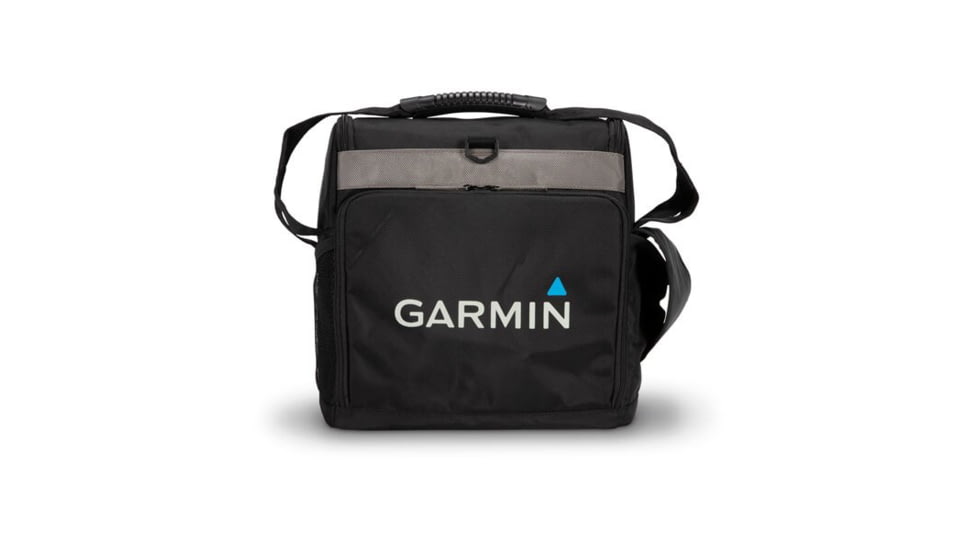

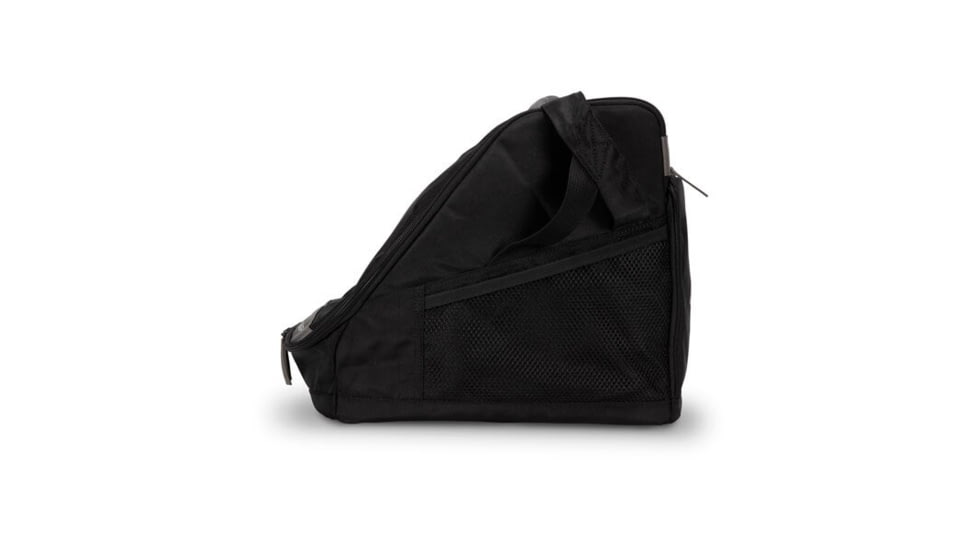

CARRYING CASE

Where you take your bundle is up to you. But the rugged, portable carrying case lets you easily transport it from hole to hole and season to season.

Features of Garmin Panoptix LiveScope Ice Fishing Bundles

• Physical dimensions 13.8in 12.2in 13.0in (35 31 33 cm)
• Antenna Internal or external over NMEA 2000
• Receiver 5 Hz
• Display size 7.8in x 4.8in; 9in diagonal (19.9 x 11.3 cm; 22.9 cm diagonal)
• Display type WVGA display
• Accepts data cards
• 1 microSD card; 32 GB maximum card size
• Track log 50,000 points;
• 50 saved tracks
• Preloaded maps LakeV g3 (inland maps)
• Routes 100
• Bag size: Extra Large (XL)
• Included transducer: Panoptix LiveScope System
• Maximum depth Down and Forward: 200 (61.0 m)
• Sonar history rewind
• SiriusXM Weather & Radio compatible
• Garmin Marine Network ports 1 Panoptix port
• Garmin Sonar compatible
• NMEA 0183 input ports 1
• Water temperature log and graph
• Wireless connectivity
• NMEA 0183 output ports 1
• NMEA 2000 compatible
• Sonar recording
• Bottom lock (shows return from the bottom up)
• CHIRP sonar technology (Built-in)
• NMEA 0183 compatible
• Waypoints 5,000
• Frequencies supported 530 - 1,100 kHz
• Transducer pin numbers 21-pin
• Tide tables

Package Contents:

• Garmin Panoptix LiveScope Ice Fishing Bundles
