Garmin Panoptix LiveScope Sonar 010-01864-00,

Garmin Took Scanning Sonar and Made It Panoptix! See highly detailed, easy-to-interpret live scanning sonar images of structure, bait and fish swimming below and around your boat in real time, even when your boat is stationary. Easily adjust the transducer to fit your fishing techniques; point forward to see around your boat, or point down to see directly below your boat. See incredibly sharp real-time scanning sonar images up to 200 down and away. Attitude Heading Reference System (AHRS) stabilizes sonar view on chartplotter screen, even in rough conditions. Simple plug-and-play Garmin Marine Network connector makes it easy to install and seamlessly integrate with your compatible Garmin chartplotter. Two Modes in One Transducer - You get both LiveScope Down and LiveScope Forward modes in one transducer. Its easy to adjust the transducer mode to fit your fishing techniques; use LiveScope Forward to see remarkably clear images of structure and swimming fish around your boat, and use LiveScope Down to see directly below your boat. The view automatically updates on your compatible Garmin chartplotter. AHRS stabilization keeps your sonar view steady, even in rough conditions.

Features of Garmin Panoptix LiveScope Sonar:

• Who wouldn’t want stunning, real-time imagery below and around their boat;
• Need a new view? No sweat. This transducer is easy to adjust;
• Up to 200’ down. Up to 200’ away. That’s an impressive view for real-time sonar;
• Even if the waters are rough, this system stabilizes the view on your chartplotter screen;
• No matter your setup, the simple plug-and-play connector makes install a breeze;
• GLS 10 sonar black box dimensions: 9.6 x 5.9 x 2.6 (24.5 x 14.9 x 6.5 cm);
• LVS32 transducer dimensionss: 5.4 x 3.8 x 1.8 (13.7 x 9.7 x 4.6 cm);
• Garmin Marine Network ports: 1 (small connector);
• GLS 10 Black Box Operating Temperature: -15 C to 70 C;
• Panoptix LiveScope LVS32 Transducer Operating Temperature: 0 C to 40 C;
• Frequencies supported: 530 - 1,100 kHz;
• Power input: 10-32 V;
• Power usage:21 W typical, 58 W max;
• Fuse: 7.5 A;
• Beamwidth: 20 x 135;
• Transducer cable length: 20ft;
• Transducer number of pins: 21;

Package Contents:

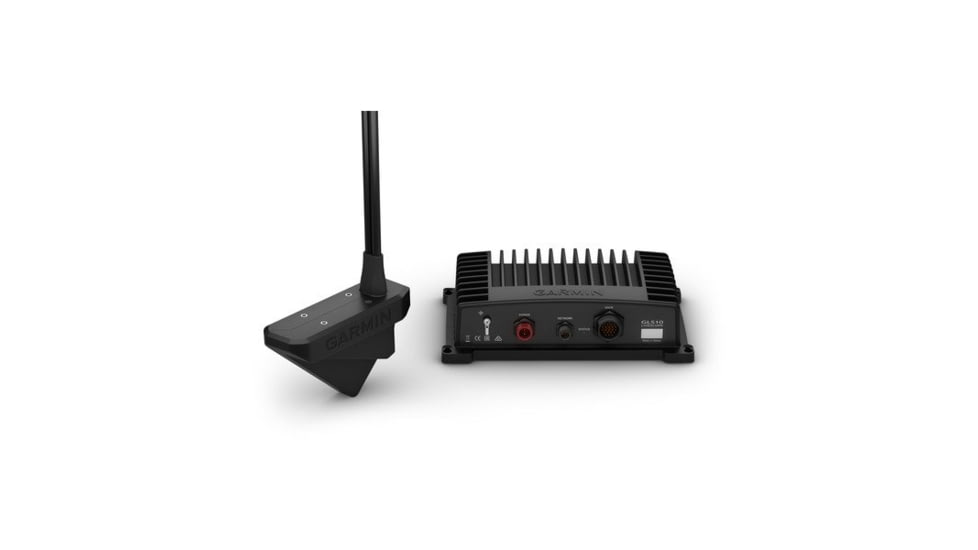

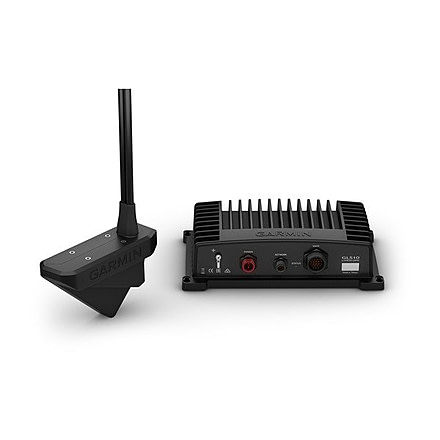

• Garmin Panoptix LiveScope Sonar
• LiveScope GLS 10 sonar black box
• Panoptix LVS32 transducer
• Trolling motor barrel mount
• Trolling motor shaft mount
• Transom mount
• Power cable
• 2 meter Garmin marine network cable small connector
• Network adapter cable
• Mounting hardware
• Documentation
