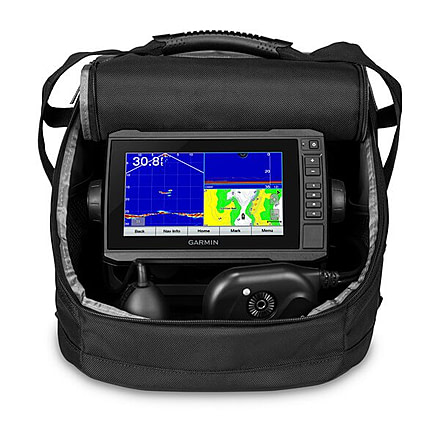

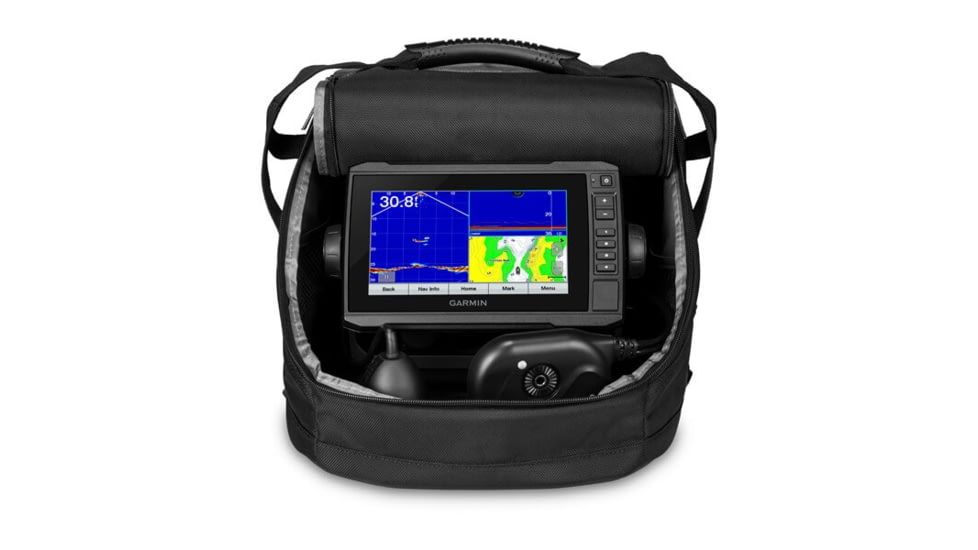

Garmin Panoptix PS22 Ice Fishing Bundles 010-02334-20-DEMO, Color: Black, Display Resolution: 800x480 pixels, w/ Free Shipping

ECHOMAP UHD

Use the 7in ECHOMAP UHD 73cv touchscreen combo with keyed assist for three types of sonar, and go from ice to open water.

PANOPTIX TRANSDUCER

See whats below the surface with the included Panoptix PS22-TR transducer. Use the swivel pole mount to change your angle.

LIVEV FORWARD

LiveV Forward sonar shows up to 100 all around you and below the ice, so you can locate schools of fish and know where to drill the next hole.

LIVEV DOWN

LiveV Down sonar shows moving sonar images of what is below the ice, so you can watch fish respond to your jig.

GARMIN CHIRP SONAR

Garmin CHIRP traditional sonar provides crystal-clear images with remarkable target separation and jig detection.

LAKEV G3 MAPS

The unit comes preloaded with LakeV g3 maps with integrated Navionics data, covering more than 18,000 lakes in the U.S.

BUILT-IN FLASHER

The built-in flasher provides accurate jig and fish detection as they swim into the sonar beam.

CUSTOM COMBOS

You can create custom pages that combine sonar, flasher and map on your display.

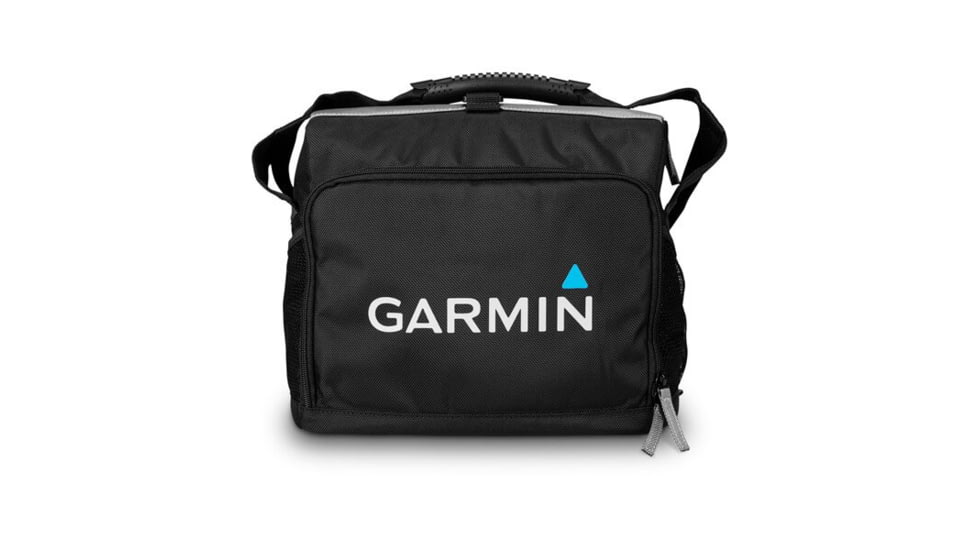

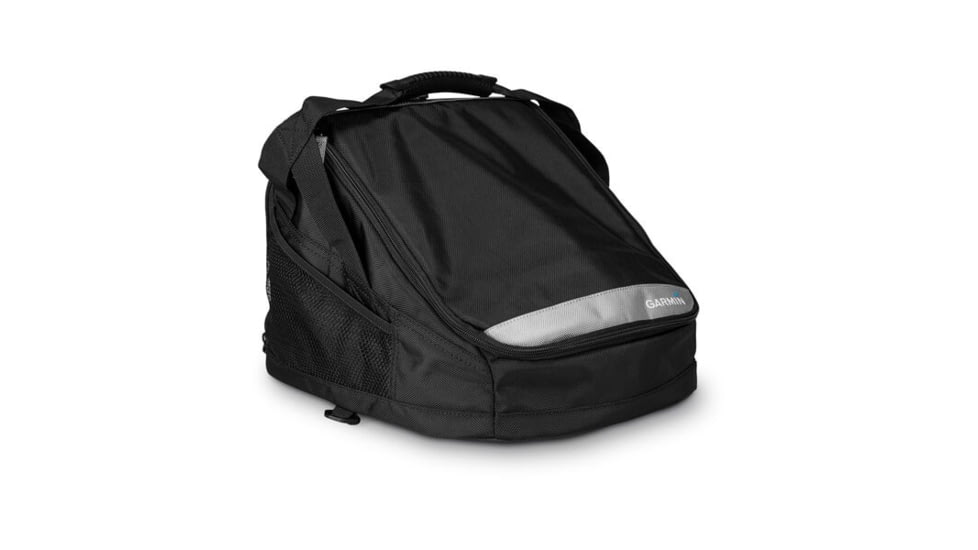

CARRYING CASE

Where you take your bundle is up to you. But the rugged, portable carrying case lets you easily transport it from hole to hole and season to season.

Specifications for Garmin Panoptix PS22 Ice Fishing Bundles:

Features of Garmin Panoptix PS22 Ice Fishing Bundles

• Physical dimensions 12.3in 14.5in 10.0in (31.1 36.7 25.4 cm)
• Antenna Internal or external over NMEA 2000
• Receiver 5 Hz
• Display size 6.0inx3.6in; 7.0in diagonal (15.2 x 9.1 cm; 17.8 cm diagonal)
• Display type WVGA display
• Accepts data cards
• 1 microSD card; 32 GB maximum card size
• Track log 50,000 points; 50 saved tracks
• Preloaded maps
• LakeV g3 (inland maps)
• Routes 100
• Bag size: Large (L)
• Included transducers: Panoptix PS22-TR and GT10HN-IF
• Maximum depth GT10HN-IF: 800 ft. freshwater
• Panoptix PS22-TR: 300 ft Down; 300 ft Forward
• Sonar history rewind
• Transmit power GT10HN-IF Transducer: 500 W (RMS) / 4,000 W (peak to peak)
• Garmin Marine Network ports
• 1 Panoptix port
• Garmin Sonar compatible
• NMEA 0183 input ports 1
• Water temperature log and graph
• Wireless connectivity
• NMEA 0183 output ports 1
• NMEA 2000 compatible
• Sonar recording
• Bottom lock (shows return from the bottom up)
• CHIRP sonar technology (Built-in)
• NMEA 0183 compatible
• Waypoints 5,000
• Frequencies supported
• Panoptix PS22-TR: 417 kHz
• GT10HN-IF: CHIRP High Narrow (130-300 kHz)
• Transducer pin numbers
• Panoptix PS22-TR: Network
• GT10HN-IF: 8-pin
• Tide tables

Package Contents:

• Garmin Panoptix PS22 Ice Fishing Bundles
