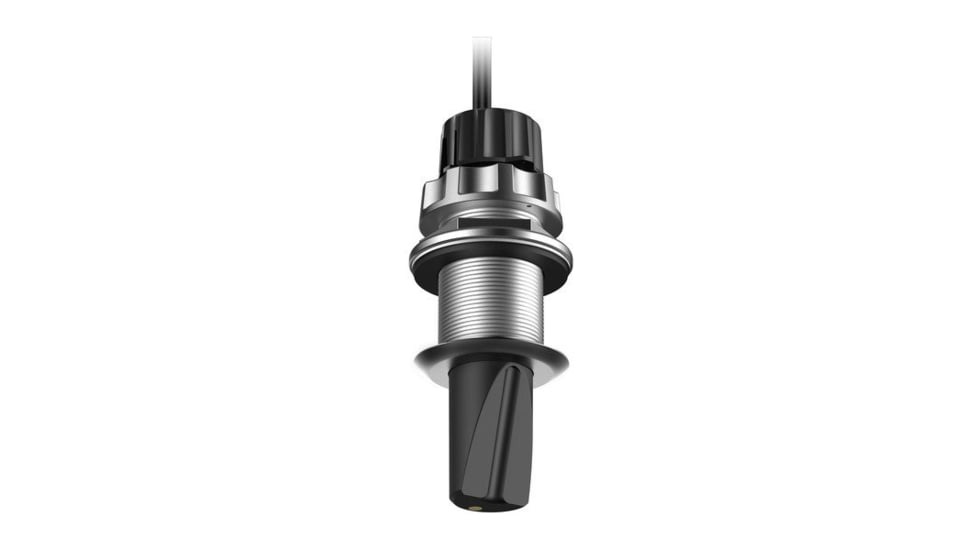

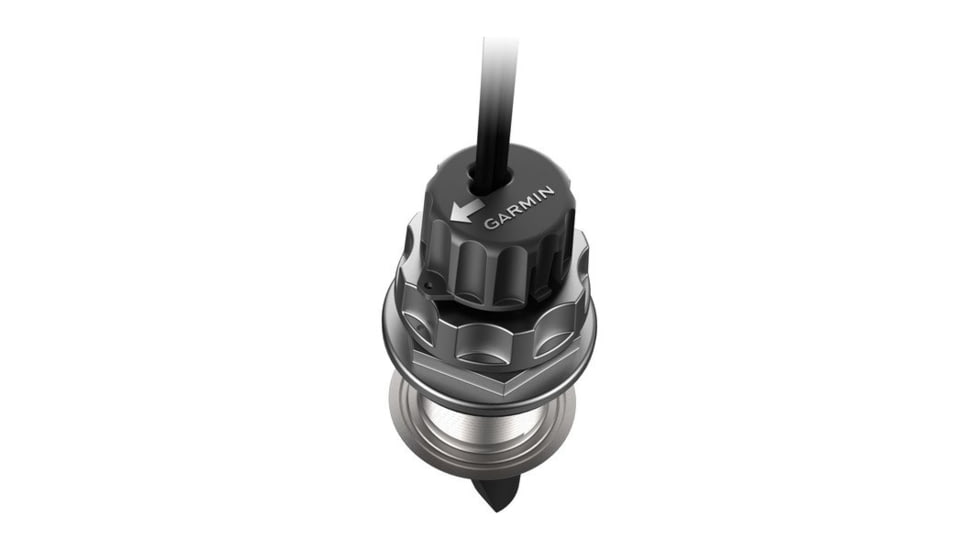

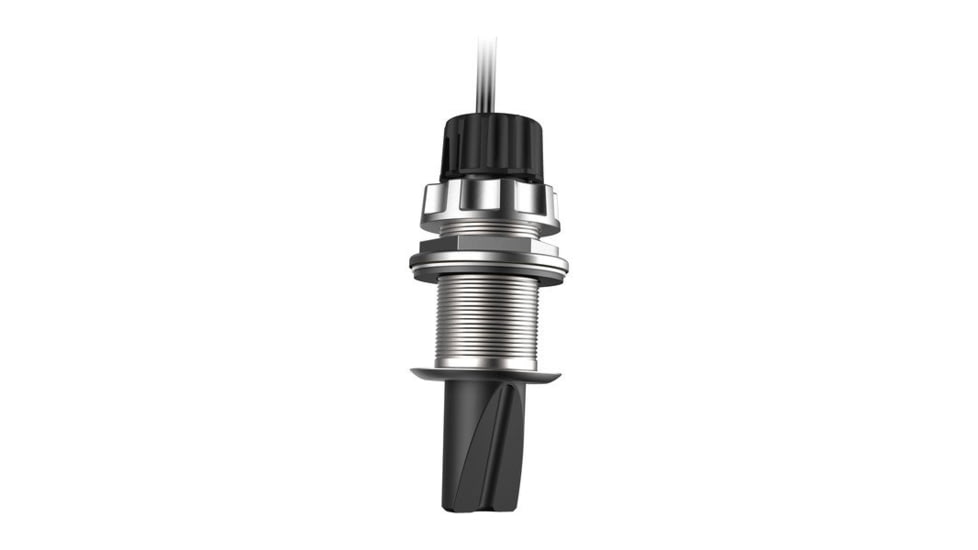

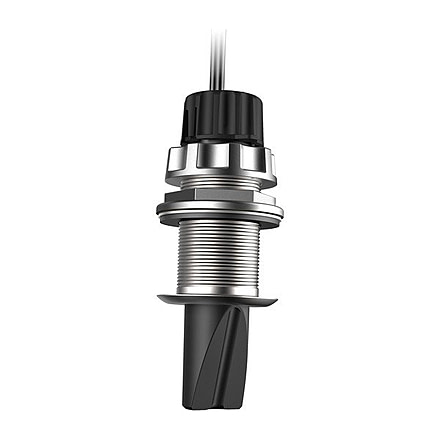

Garmin Panoptix PS51-TH Forward, Thru-Hull 010-01753-00, Color: Black, w/ Free Shipping

Premium FrontVu Forward-looking Sonar

Premium FrontVu forward-looking sonar helps you avoid running aground

Narrow beam, forward-looking sonar that focuses on the bottom in front of your boat

Displays the bottom up to 300 feet ahead of your boat in real time

Delivers nearly instant feedback to give you more time to react

Also offers LiveVu forward for fishing see fish swimming in front of your boat, even when stationary

The Panoptix multibeam thru-hull transducer with premium FrontVu forward-looking sonar helps you avoid running aground by displaying the bottom ahead of your boat in real time on your chartplotter. It also includes LiveVu Forward sonar to give you the unique ability to see fish even divers swimming in real time under and ahead of your boat with a 100-foot forward range.

Panoptix FrontVu sonar displays bottom up to 300 feet ahead of the boat (at 8 to 10 times the current depth) and delivers nearly instant feedback to give you more time to react. You can be more confident when navigating unfamiliar water because Panoptix FrontVu has a narrow beam, forward-looking sonar (20 degrees). This allows you to focus on the bottom in front of your boat and not be confused with what is off to each side. It also includes an AHRS sensor for motion stabilization that allows you to see what is in front of your boat even in rough water conditions. And all the FrontVu forward-looking sonar image data can be easily shared with other chartplotters across the Garmin Marine Network.

Panoptix PS51-TH features a standard 50.88 mm (2-inch) stainless steel thru-hull mount. Displays depth and temperature data and is compatible with all Panoptix capable Garmin chartplotters. Withstands speeds up to 45 knots, with operation up to 8 knots.

Specifications for Garmin Panoptix PS51-TH Forward, Thru-Hull:

Features of Garmin Panoptix PS51-TH Forward, Thru-Hull

• General
• Frequency:417 kHz
• Power:96 W
• Beamwidth:LiveV & FrontV: 20x90
• Maximum depth:300 ft. Down; 300 ft. Forward
• Depth/Speed/Temperature:Depth and Temperature
• Number of pins:Ethernet
• Cable length:Power Cable 6 ft.; Ethernet Cable 6 ft.; Ethernet Extension Cable 50 ft.
• Supported deadrise/Transom angles:Up to 20 deadrise with 3/4" hull

Package Contents:

• Garmin Panoptix PS51-TH Forward, Thru-Hull
• Panoptix PS51-TH forward thru-hull transducer
• Mounting hardware
• Fairing block
• Blanking plug
• Documenatation
