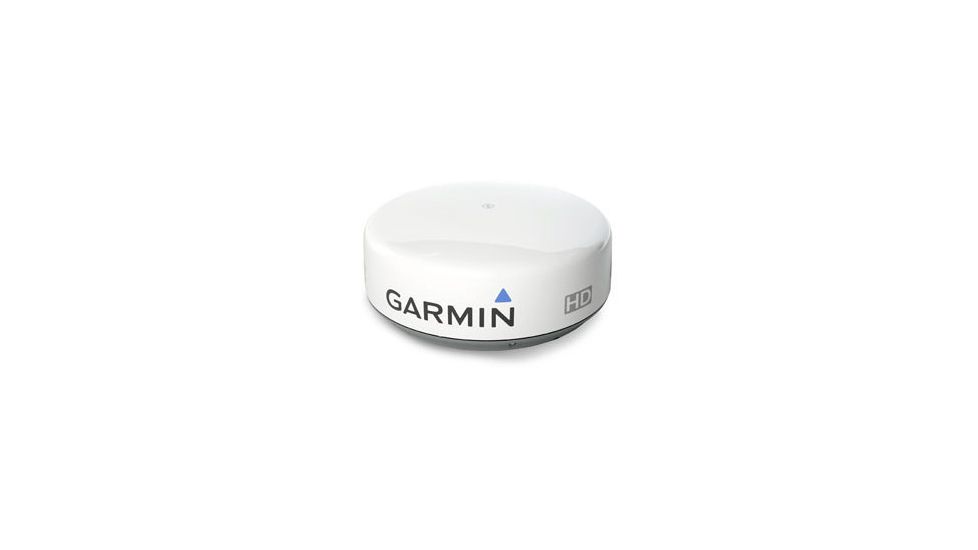

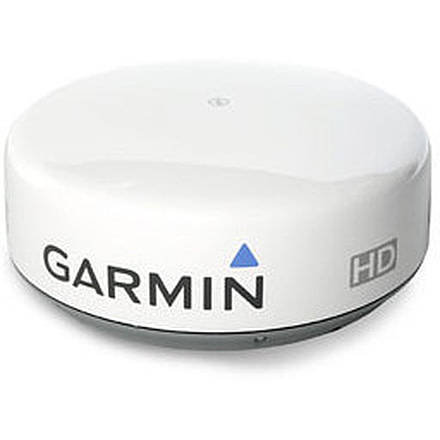

Garmin Radar GPS GMR 24 HD Marine Radar, 24" Radome 010-00572-03 ,

The Garmin GMR 24 HD 010-00572-03 sold by us is an 100% Genuine Garmin Fishfinders product that comes with a Garmin manufacturer's warranty. Garmin GMR 24 HD 010-00572-03 will fulfill all of your specific needs as Garmin products are trusted and considered to be the best Fishfinders navigation systems all around the world. Buying a Garmin GMR 24 HD 010-00572-03 from us means getting the best price and purchasing from a trusted source - we're an Authorized Garmin Dealer for all Garmin as well as running and cycling Fishfinders, Fishfinders, radios, and hundreds of Garmin GPS Accessories, software and maps.

Sharpen your radar picture with high definition. The GMR 24 HD radar scanner offers a whole new level of radar performance, safety and situational awareness.

Get Powerful Performance

GMR 24 HD features high-powered Digital Signal Processing, providing sharper radar imagery and improved target separation to recreational boaters, professional mariners and yachtsmen.

This 24-inch, 4-kilowatt high definition radar has a 3.6 degree beamwidth and a 48 nm range. With automatic pulse optimization technology, the radar matches pulse widths and repetition rates with the nautical mile range that is selected. This gives you powerful 4-kilowatt radar penetration and unbelievably clear echo definition at all ranges up to 48 nm.

To help you avoid traffic on the water, the GMR 24 HD provides the option of MARPA target tracking when combined with a multi-function display and an optional heading sensor. MARPA tracking allows you to track the bearing, course, speed and predicted closest approach of up to 10 targets. In addition, like all Garmin radars, the GMR 24 HD has self-contained signal processing, which provides you with a more precise, easy to read signature.

Connect to the Garmin Marine Network

The GMR 24 HD transmits data over the Garmin Marine Network, a 100-megabit plug-and-play proprietary network that gives you the ability to expand your boat’s system as needed. Once connected to the network, you can use any network-compatible Garmin chartplotter as your radar screen. And as an aid to locational awareness, you can overlay the GMR 24 HD radar image on the chartplotter's map page. You can also split the on-screen display so that you can view the map and the standard radar page simultaneously.

Specifications for Garmin Radar GPS GMR 24 HD Marine Radar, 24" Radome 010-00572-03:

Physical & Performance
Unit dimensions, WxHxD:		24" diameter, 9.6" high (61 cm diameter, 24.4 cm high)
Weight:		20.1 lb (9.1 kg)
Waterproof:		yes (IPX7)
Antenna sweep:		24/30 rpm (dual rotation)
Transmit power:		4 kW
Power input:		10.5-35 V DC, 33.5 W
Beam width:		3.6° horizontal, 25° vertical
Maximum range:		48 nm
Minimum range:		20 meters
RoHS version available:		yes
Features
Garmin Marine Network compatible:		yes
High definition (outstanding target separation with less screen clutter):		yes
MARPA target tracking (collision avoidance):		yes (requires heading sensor; sold separately)
Guard zone alarm:		yes
Additional:		Connector with removable collar

Garmin Radar GPS GMR 24 HD Marine Radar, 24" Radome 010-00572-03 Package Contents:

• GMR 24 HD
• Mounting hardware kit
• Power cable Network cable
• Installation instructions
• Field install RJ-45 network cable connector
• Mounting template
• Grommet for marine cable
