Garmin Reactor 40, Steer-by-wire Standard w/o GHC Corepack 010-00705-90,

Our Most Responsive Autopilot System on the Water

Solid-state 9-axis Attitude Heading Reference System (AHRS)

Minimizes heading error, course deviation, rudder movement and power consumption while providing a comfortable ride

Minimal commissioning and calibration

Requires a compatible Garmin chartplotter

Reactor 40 for steer-by-wire provides robust autopilot capabilities for SeaStar Optimus systems, Yanmar Marine ZT 370 stern drive electronic power steering systems and ZF 2800 Pod drives.

With a complete package designed for powerboats and sailboats, Garmin brings an advanced marine technology to the boating public that was once only available for commercial boats. The Reactor 40 autopilot series is simply the most responsive autopilot system we have ever offered.

Reactor 40 autopilots are very versatile. Both powerboat and sailing features are available in all corepacks, including heading hold, wind hold, tack/jibe, step turns and more; simply pick the autopilot thats compatible with your existing steering system.

Solid-state 9-axis AHRS

With its advanced solid-state 9-axis AHRS, you can mount Reactor 40 nearly anywhere, in any orientation. In addition, this new system greatly minimizes heading error, course deviation, rudder movement and power consumption while providing a comfortable ride for all on board.

Reacts to Sea Conditions

This amazing autopilot actually reacts to the sea to hold your course. Even when the boat is pitching and rolling, you can remain confident that the Reactor 40 autopilot will keep you on your desired course.

Minimal Commissioning and Calibration

All autopilots require commissioning and calibration all of them. We know you just want to get on the water, so we made this process as fast and easy as possible. Thats the power of simple.

Full Integration with Garmin Chartplotters

Combined with our compatible networked chartplotter, you can have full control of Reactor 40 from wherever you are on the boat. In addition to holding its course in virtually all weather and wind conditions, the system can smoothly perform a variety of preprogrammed trolling and search procedures. Plus, with a compatible Garmin networked chartplotter and BlueChart g2 Vision charts (sold separately), you gain optional features such as Auto Guidance, which automatically steers GPS paths.

Features of Garmin Reactor 40, Steer-by-wire Standard w/o GHC Corepack

• CCU Specifications
• Dimensions: 3 19/32 in. diameter (91.4 mm)
• Weight: 5.6 oz. (159 g)
• Temperature range: From 5F to 131F (from -15C to 55C)
• Case material: Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards
• CCU cable length: 9.5 ft. (3 m)
• NMEA 2000 power input: 9-16V
• NMEA 2000 LEN: 3 (150 mA)
• Buzzer/Alarm Specifications
• Dimensions (L Diameter): 29/32 in. 1 in. (23 mm 25 mm)
• Weight: 2.4 oz. (68 g)
• Temperature range: from 5F to 131F (from -15C to 55C)
• Cable length: 10 ft. (3.0 m)

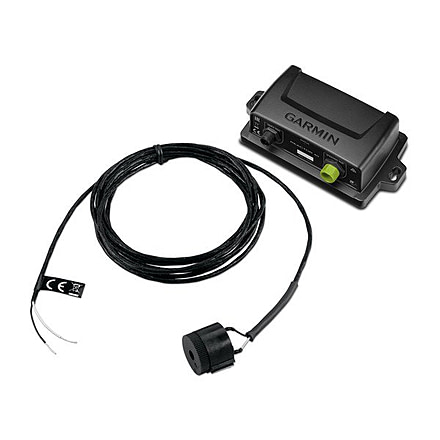

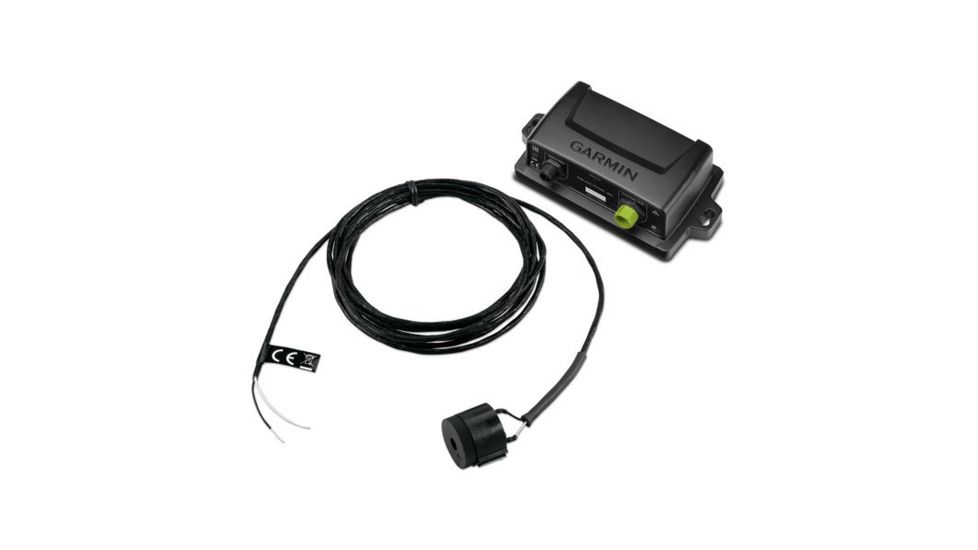

Package Contents:

• Garmin Reactor 40, Steer-by-wire Standard w/o GHC Corepack
• Reactor 40 CCU (Course Computer Unit)
• CCU cable
• Buzzer
• NMEA 2000 drop cables (2 meters)
• NMEA 2000 power cable
• NMEA 2000 T-connectors
• Male and female terminators
• Documentation
