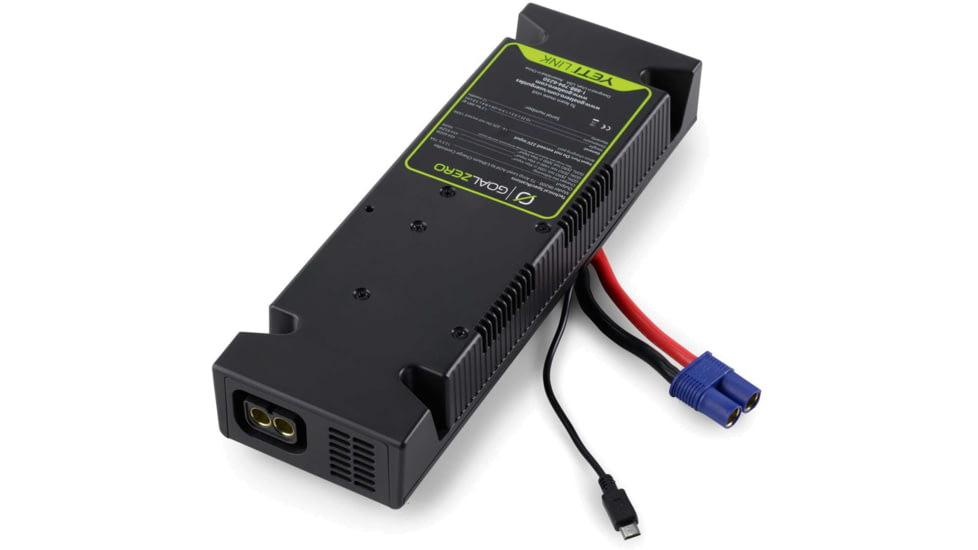

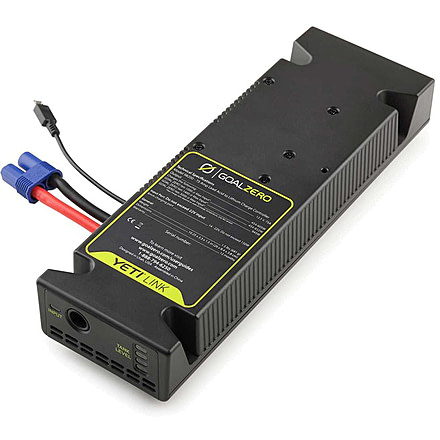

Goal Zero Yeti Link Expansion Module with 110V PSU 98210,

Portable power station expansion & integration.

All items work with YETI LI 1000 & new YETI 1000X and up.

The Yeti Link Expansion Module allows you to chain a Yeti Tank Expansion Battery to a Yeti Lithium Portable Power Station to increase your energy storage capacity. When placed in Car Mode, Yeti Link can also be used to recharge a Yeti Lithium from your vehicle. NOTE: The Link is only compatible with a Yeti 1000, 1400, or 3000 Lithium. Please note the Yeti Link is not currently compatible with Yeti X Power Stations. Stay tuned for a compatible Yeti X Link solution coming this Fall. Usage Note: The Yeti Link Expansion Module and Yeti Lithium MPPT Solar Charging Optimization Module use the same expansion bay therefore they are unable to be used at the same time.

Features of Goal Zero Yeti Link Expansion Module with 110V PSU

CHARGE TIMES

Max Input from Yeti Tank to

• Goal Zero Yeti 1000 454-605W
• Goal Zero Yeti 1400 454-750W
• Goal Zero Yeti 3000 750W

PORTS

• Do not exceed 22V input
• 8mm Charging Port (input): 14 - 22V Do not exceed 150W (10A) per port
• External Battery Connector (ouput): 65A charge controller
• Warranty 12 months

YETI LINK CAR MODE

• Quickly and easily recharge a Yeti Lithium from your vehicle while on the move.
• When placed in "Car Mode," Yeti Link allows you to safely pull power from your vehicle's alternator. Charge rates vary from 25A - 50A (300W - 750W) depending on Yeti Lithium size and capacity. When placed in "Car Mode," Yeti Link allows you to safely pull power from your vehicle's alternator. Charge rates vary from 25A - 50A (300W - 750W) depending on Yeti Lithium size and capacity.
• NOTE: Link must be in Car Mode to utilize this feature or it will drain your vehicle's battery. All Links comes standard set in "Tank Mode." To switch from Tank Mode to Car Mode, push pinhole reset button on top of the Link four times. When Link is in Car Mode, all four indicator lights will turn on and blink together. To switch back to Tank Mode, press pinhole reset button four more times. When Link is in Tank Mode, lights will scroll from bottom to top individually. NOTE: Link must be in Car Mode to utilize this feature or it will drain your vehicle's battery. All Links comes standard set in "Tank Mode." To switch from Tank Mode to Car Mode, push pinhole reset button on top of the Link four times. When Link is in Car Mode, all four indicator lights will turn on and blink together. To switch back to Tank Mode, press pinhole reset button four more times. When Link is in Tank Mode, lights will scroll from bottom to top individually.

Package Contents:

• Goal Zero Yeti Link Expansion Module with 110V PSU
• 120W Power Supply
