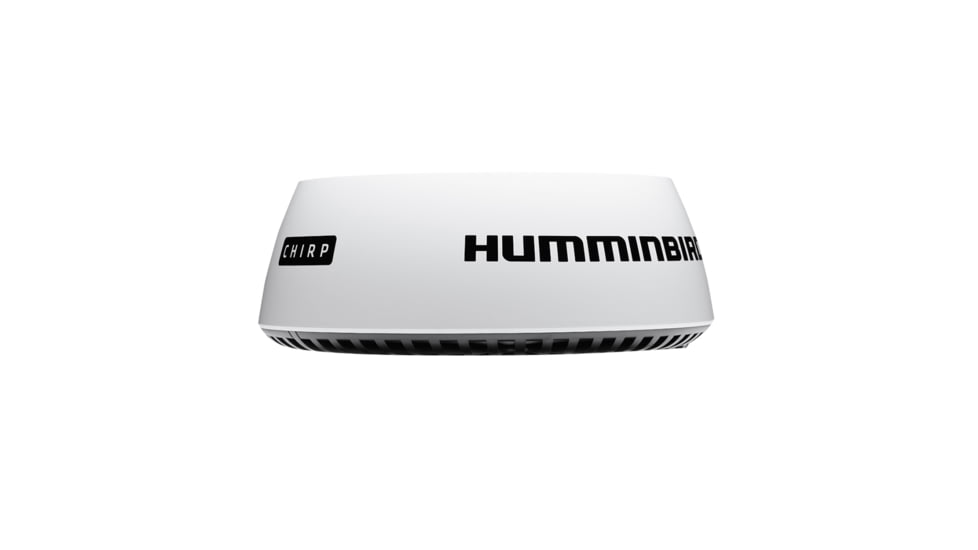

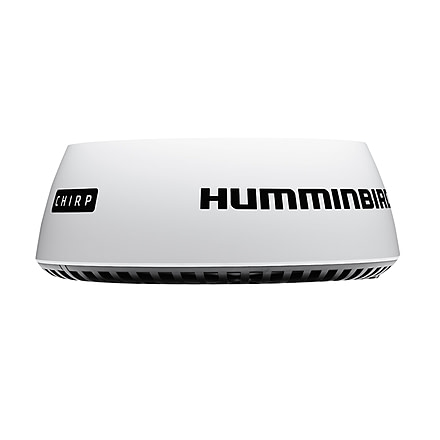

Humminbird HB2124 CHIRP Radar 750013-1, Color: Black, w/ Free S&H

HB2124 CHIRP Radar

Compatible with select networking HELIX models and ONIX Humminbird CHIRP Radar

Specifications for Humminbird HB2124 CHIRP Radar:

Features of Humminbird HB2124 CHIRP Radar

• Antenna Dimension - 21" Enclosed Dome
• Antenna Type - Patch Array
• Peak Power Output - 20W
• Transmit Frequency - 9354 to 9446 MHz
• Beam width (nominal) - 4.9 Horizontal and 20 Vertical
• Input Voltage - 12 or 24 VDC (Miniumum - 10.8 Volts Maximum - 31.2 Volts)
• Networking - Ethernet
• Maximum Range Scale - from 1/16 to 24 nautical miles
• Power Consumption - Transmit mode - 17W; Standby Mode - 7W; Sleep Mode - 2W
• Duplexer - Circulator
• Pulse Widths @ 3 dB - 40 ns to 14.7s
• CHIRP Lengths - 400 ns to 20s
• CHIRP Bandwidth - Up to 32 MHz
• IF Bandwidth - 26 MHz
• Noise - Less than 4 dB
• Polarization - Horizontal
• Waterproofing - IPX6
• Weight - 12.3 lbs (5.6 kg)
• Compatibility Networking HELIX models and all ONIX models

Package Contents:

• Humminbird HB2124 CHIRP Radar
