LevelGuard Tank Monitor 400 Kit Z26604RK,

Tank Monitor 400 KitFluid level monitoring system for plastic holding tanksThe LevelGuard Tank Monitor 400 provides accurate early warning for critical holding tank fluid levels. With digital certainty the LevelGuard Tank Monitor 400 is the reliable choice for monitoring fluid levels in 3 fluid tanks and one LPG tank from one display. This tank monitoring system is suitable for any applications that carry water-based solution: industrial or farm liquids bulk beverage or dairy fresh or waste water sewage ground water coolants pesticides or fertilizers.

Features of LevelGuard Tank Monitor 400 Kit

• System reads the sensors built into standard RV liquid propane gas (LPG) tanks w/ Rochester type electronics gauge or equivalent
• Programmed to flash an alert when levels are critical (low for water and LPG high for holding tanks)
• Clean flush-mounted display panel is compact and organized
• Touch interface to display tank level readings
• Low Display includes: fresh water holding tank 1 holding tank 2 indicators (depending on model selected)
• Tanks can be any volume
• Reads on-demand; very low current draw
• No mechanical float switches or moving parts to jam fail or wear out
• No probes to get clogged or coated
• No tank intrusion required
• Sensors attach to exterior of tank with aggressive adhesive (unaffected by moisture or vibration)
• Easy installation
• 1-year warranty
• How it works:Field-Effect sensors (encased in rugged plastic) create an invisible low-power electric field that detects fluid levels. When a conductive material like water enters the LevelGuard "e-field" the sensors detect its presence and trigger the alarm. Tested to millions of cycles in fluid control applications LevelGuard performs reliably under extreme conditions of temperature humidity UV vibration and salt water corrosion and is a robust solution for challenging environments. Voltage rating: 10.5 to 14.4 VDC

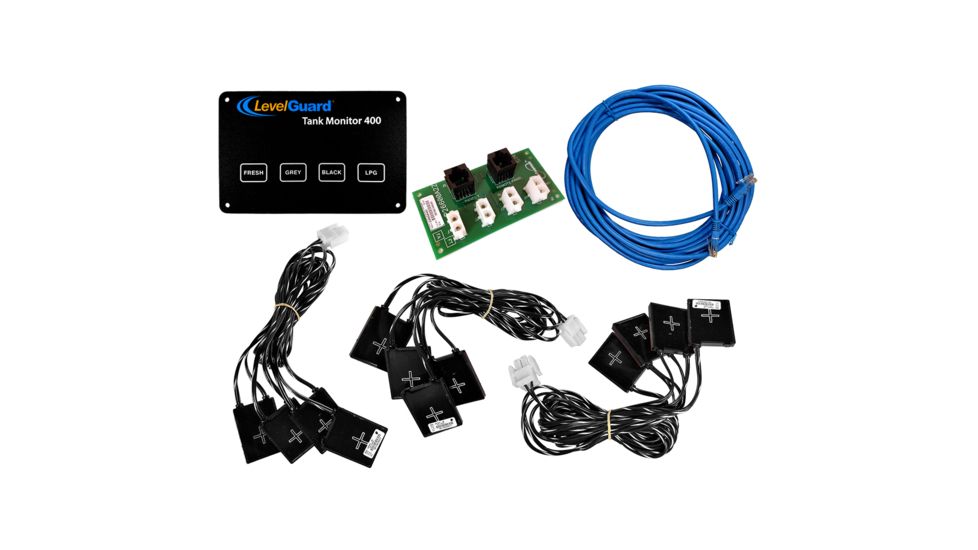

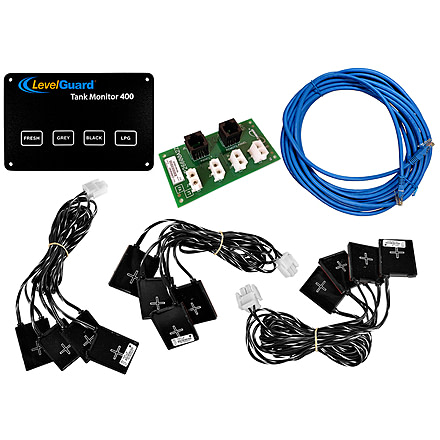

• Sensor draws Kit Contents:LevelGuard Tank Monitor display panel with LEDs
• Tank Monitor interface module for modular connection to sensors
• Wiring harness with 4 daisy-chained adhesive-backed "field effect" sensors and 15" (4.6 meter) wire leads (can be extended by customer)
• 8-pin CAT-5 Ethernet cable 20' (6 meters)

Package Contents:

• LevelGuard Tank Monitor 400 Kit
