Levenhuk 40-1000x 400T Trinocular Microscope 75421,

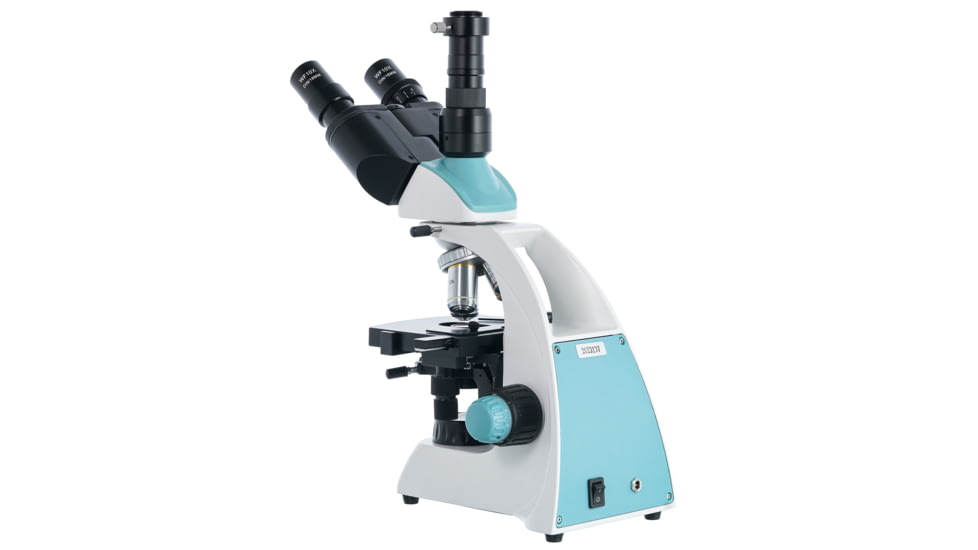

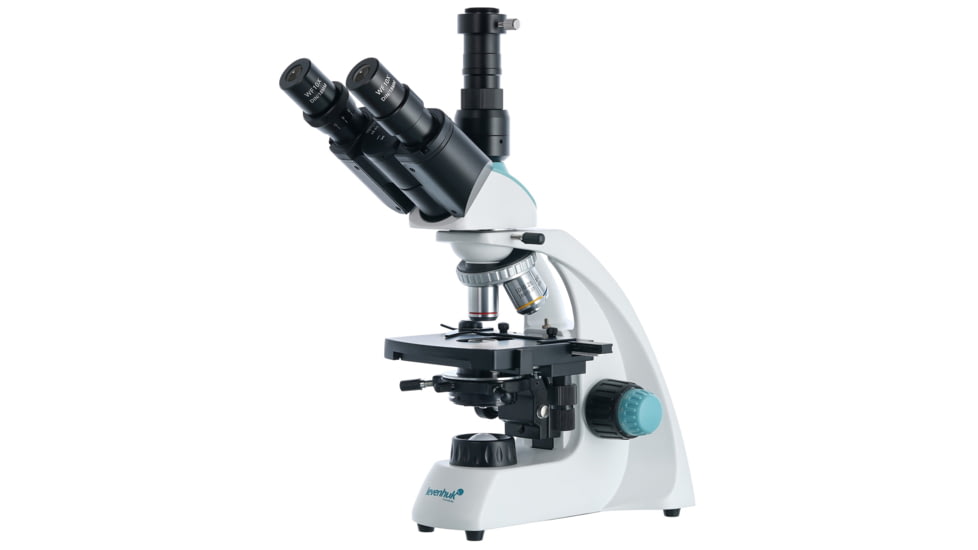

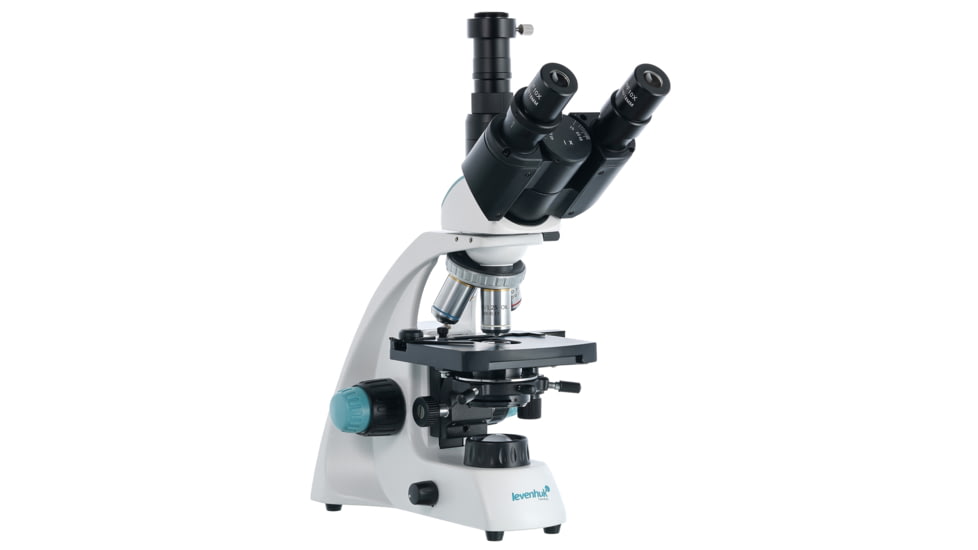

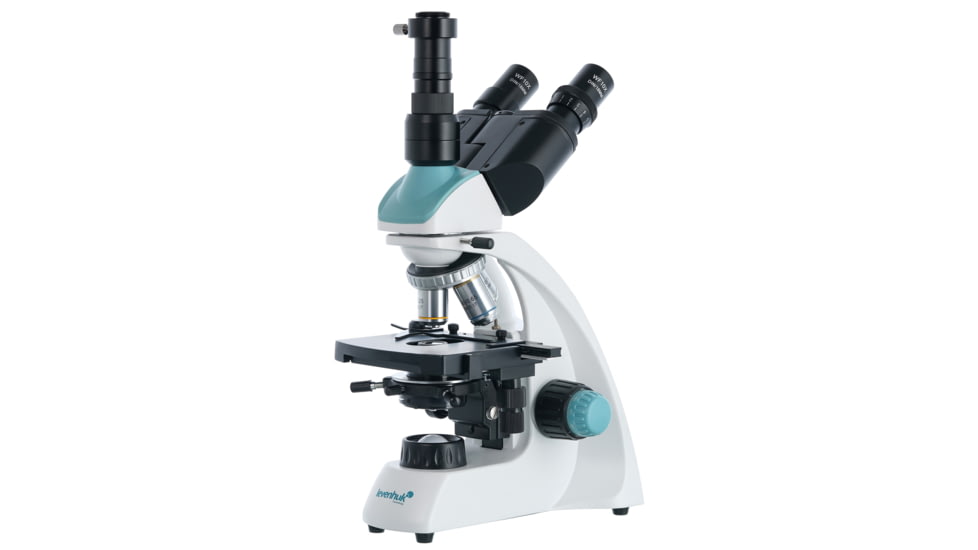

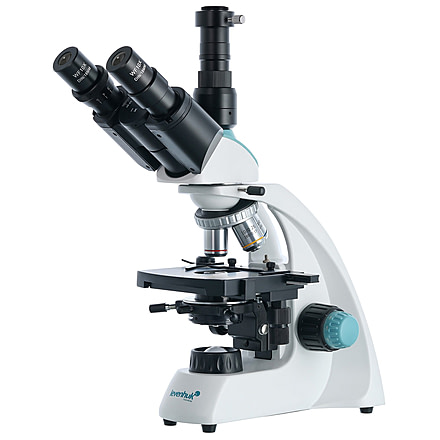

The Levenhuk 400T is a classic trinocular microscope with a binocular visual part and a vertical tube for installing a digital camera in it. This microscope is an excellent choice for a laboratory. It will help a medical worker, microbiologist, biochemist, or any other specialist who studies biological samples. The microscope uses the achromatic optics and comes with an LED light. A bright field method and oil immersion can be used for research.

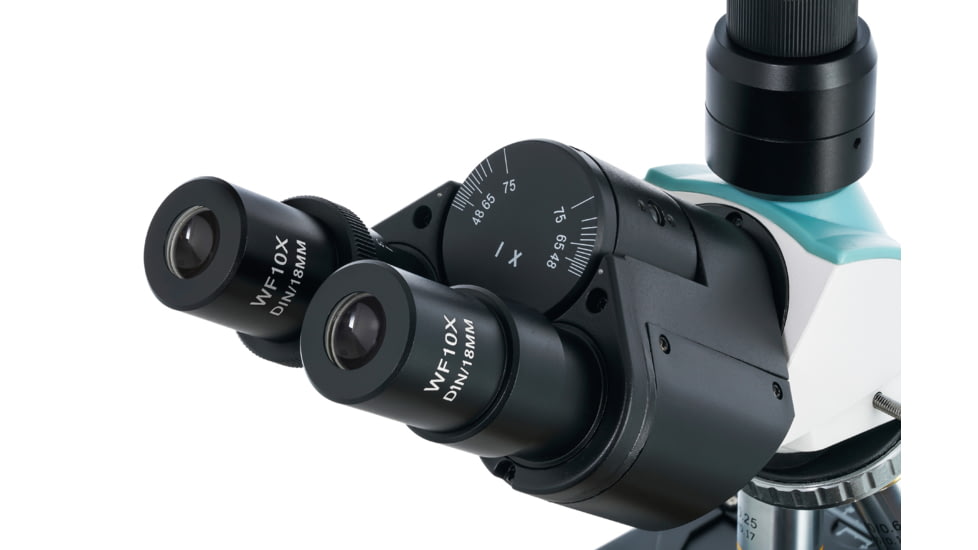

A microscope head is rotatable, which is practical for group work. A visual part is inclined at 30: that makes lengthy work with a microscope more comfortable. The 10x eyepieces provide a wide field of view, while achromatic optics deliver details of small structures clearly and sharply. The objectives with 4x, 10x, 40x, and 100x magnification are installed in a revolving nosepiece. Overall microscope magnification varies from 40x to 1000x. Please note that this microscope allows for applying oil immersion research method using a 100x objective. What is more, 40x and 100x objectives feature protective spring-loaded frames.

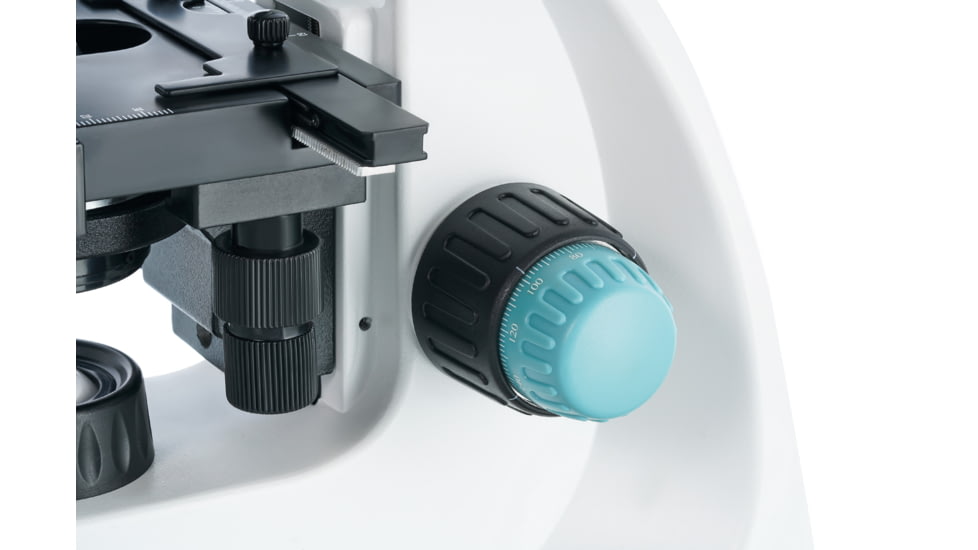

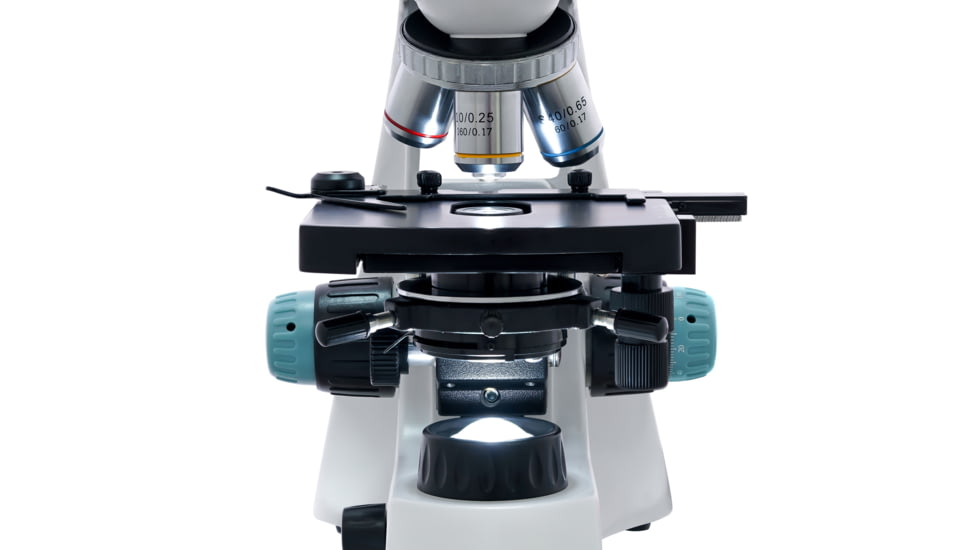

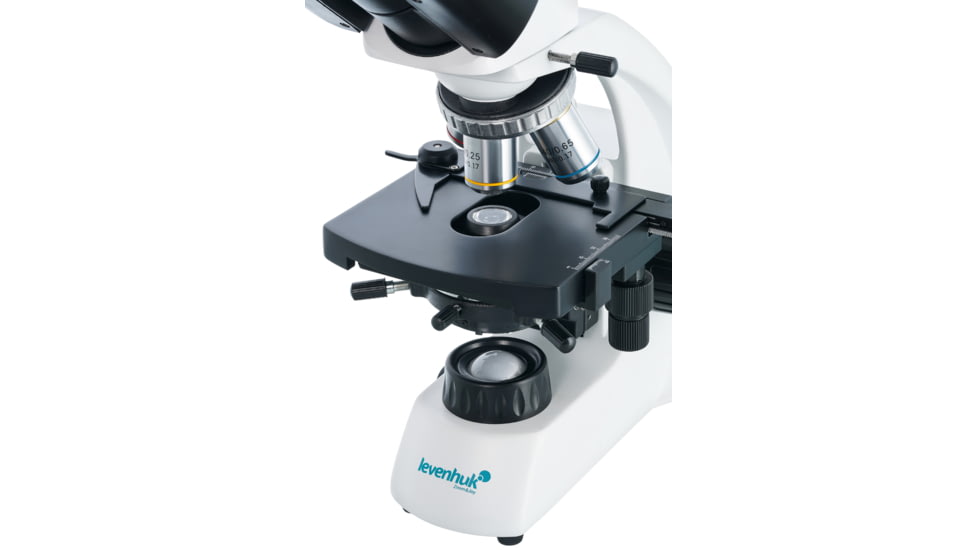

The stage is equipped with a mechanical scale. Next to the stage, there are fine and coarse focusing knobs. Right underneath, there is a bright field Abbe condenser with an iris diaphragm and a filter holder. The lighting system consisting of an LED light and collector is located even lower. The lighting features brightness adjustment and is powered by rechargeable batteries (included in the kit) or an AC power supply. The microscope body is made of metal.

Features of Levenhuk 40-1000x 400T Trinocular Microscope

• Trinocular rotatable head with a tube for installing a digital camera
• Power supply is variable: 110-220V via an AC power supply or 3 rechargeable AA batteries, 1300mAh, 1.2V
• Eyepiece tube diameter, mm: 23.2
• Eyepieces: WF10x/18mm (2 pcs)
• Objectives: Achromatic 4x, 10x, 40xs, 100xs (oil)
• Revolving nosepiece: 4 objectives
• Interpupillary distance, mm: 48-75
• Stage, mm: Mechanical double-layer, 115x110mm, with a mechanical scale
• Stage moving range, using focusing mechanism, mm: 55/20
• Eyepiece diopter adjustment, diopters: ±5
• Condenser: Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder
• Diaphragm: Iris
• Focus: Coaxial, coarse (12mm) and fine (0.002mm)
• Brightness adjustment: Yes
• Work time: 4 hours
• Charging time: 3 hours
• Light source type: With a collector, 1W LED
• Filters: Blue, green, yellow
• General use product. May be used by kids over 3 years old

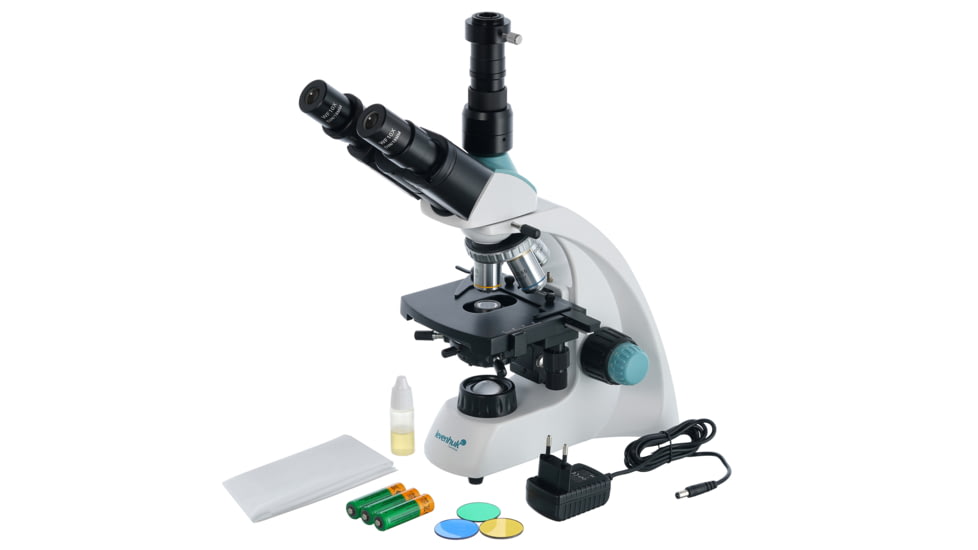

Package Contents:

• Levenhuk 40-1000x 400T Trinocular Microscope
• 4x 10x 40xs 100xs (oil) achromatic objectives
• WF10x/18mm eyepieces (2 pcs)
• Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder
• Rechargeable AA batteries (3 pcs)
• Charging power cord
• C-mount
• Vial of immersion oil
• Filters: Blue, green, yellow
• Dust cover
• User manual and lifetime warranty
