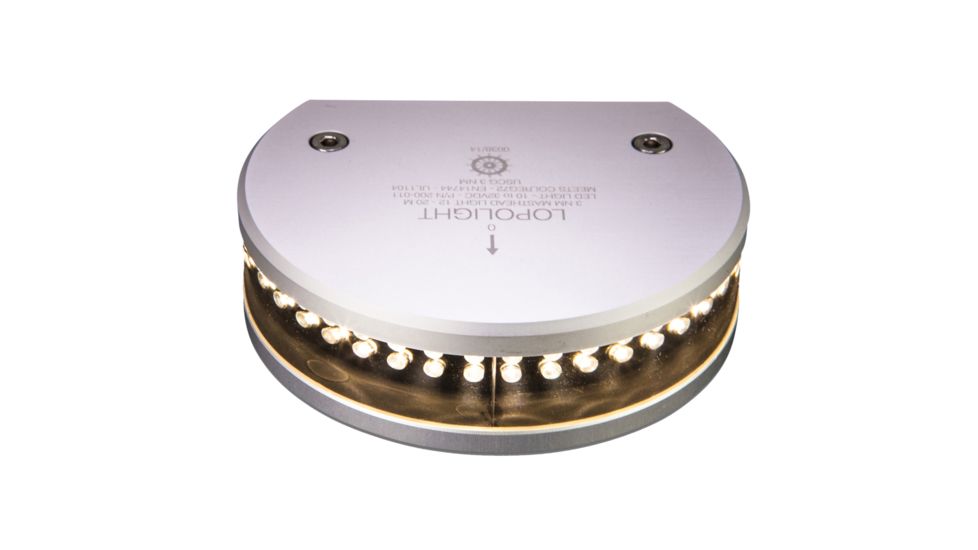

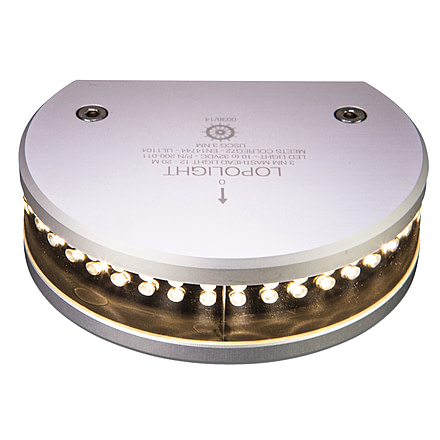

Lopolight Masthead Light 200-011,

Masthead Light - 3nm f/Vessels 39'(12M) to 65'(20M) - Vertical Mounting

Features of Lopolight Masthead Light

• LED (Light Emitting Diode) navigation light
• Unique and precise definition of light angles
• Rugged and unbreakable: Precision machined anodised aluminium housing protects the LED's and electronics
• Completely waterproof and vibrationproof: Interior is fully filled and sealed with special potting resin
• Waterproof to IP 68+ (submersible)
• Lifetime over 50000 hours or 4200 nights
• Low power consumption - 70 to 90% less than traditional navigation lights
• Full brightness with input voltages ranging from 10 to 32 Volts
• All Lopolights have been tested several times during production a total of more than 24 hours
• Easy to install adaptor and screws included (when applicable)
• :
• USCG Approved
• Light Measurements: 3.64"(92.5mm) x 2.95"(75mm) x 1.1"(28mm)
• Weight: 8.2oz(230g)
• Materials: Anodised Aluminum 25 PMMA lens A4 Stainless Steel screws Epoxy Polyurethane
• Supply Voltage: 10-32VDC
• Power Consumption: 1.8W
• Current @ 12VDC: 0.15A
• Current @ 24VDC: 0.08A
• Intensity: >15cd
• Visibility (@K+0.8): 3nm
• Number of LEDs: 42
• Included in Package:
• (1) Navigation light pre-cabled with 2.5M shielded marine gradecable
• (2) Mounting Screws (M68mm)
• Installation Guide

Package Contents:

• Lopolight Masthead Light
