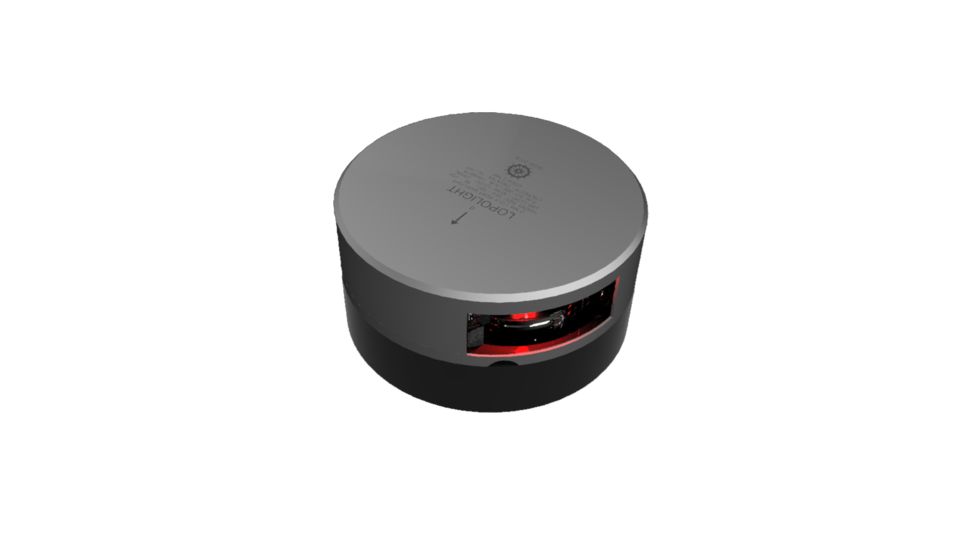

Lopolight Red Port Sidelight 301-009,

Red Port Sidelight - 2nm/112.5 - Silver Housing - Single - Horizontal MountThis LED navigation light consists of a single high-power LED that produces light in the specified angle utilizing a special designed PMMA light guide.The precision machined 6082 aluminium housing with an anodized surface makes the light a rugged and durable housing for the LEDs and electronics contained within.The interior is completely filled with a special potting resin making it water- and vibration proof. Produced in our in-house manufacturing facility to meet and exceed exacting standards such as EN14744 and UL1104 under a quality management system continuously surveyed by Lloyds Register Quality Assurance.Each light is subjected to final testing for a minimum of 16 hours of continuous operation bringing the total test time beyond 24 hours. This navigation light is in compliance with the following standards:COLREG72

EN14744

IEC 60945

USCG (UL1104)Together with an appropriate Control & Monitoring System such as Lopolights own NLC this navigation light can form part of an IMO MSC 253(83) LY3 and LY4 compliant system.

Features of Lopolight Red Port Sidelight

• Vessel size: 12m 50m (39.4 - 164)
• Visibility: >2 nautical miles
• Intensity: >54cd
• Power consumption: 25 Watt; Current: 021A @ 12 VDC 01A @ 24 VDC
• Operating voltage: 10 - 32 VDC
• Number of LEDs: 1
• Light colour: Red
• Operating temperature: -25C to +55C
• IP rating: IP68
• Mounting: Horizontal

Package Contents:

• Lopolight Red Port Sidelight
