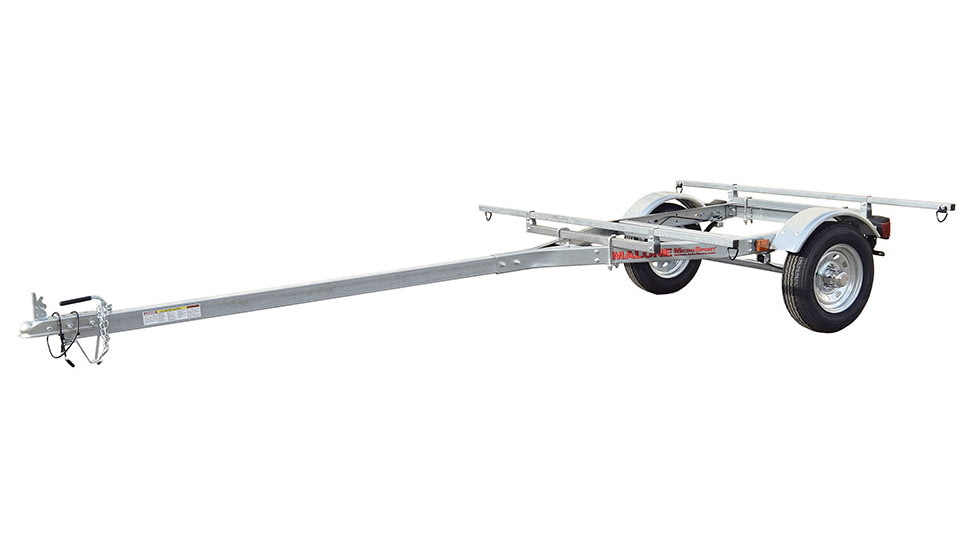

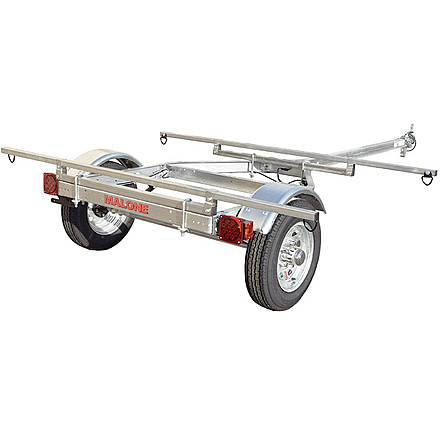

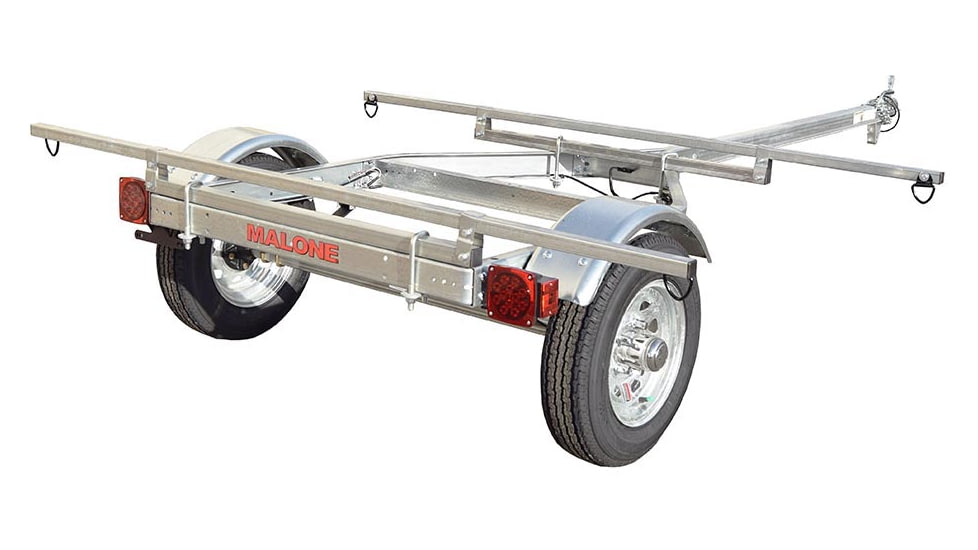

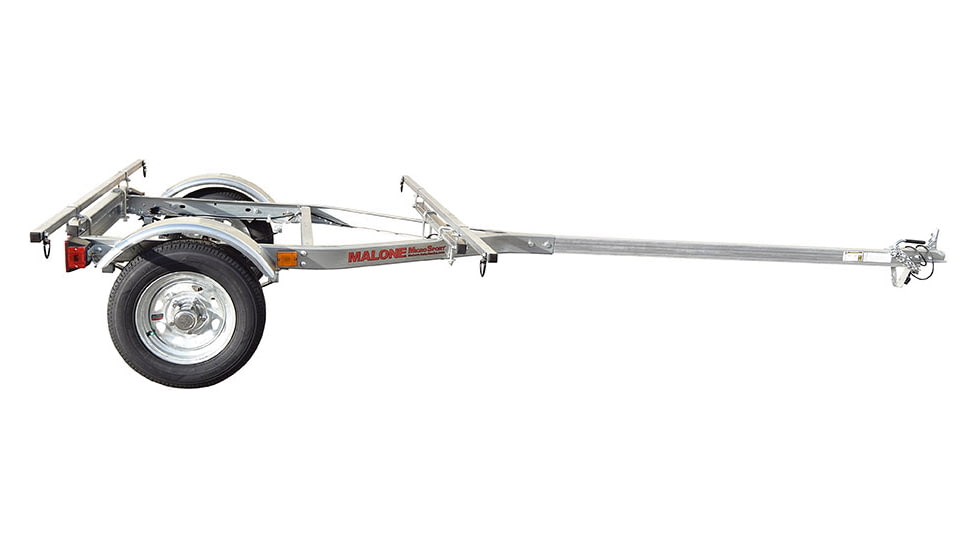

Malone Auto Racks MicroSport Low Bed Trailer MPG464-LB,

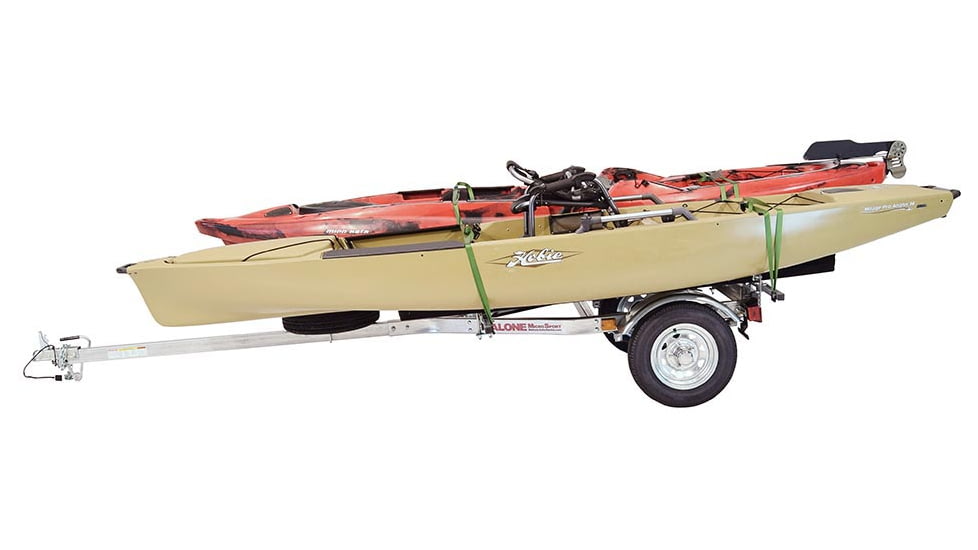

The MPG464-LB MicroSport LowBed is a modified Base Trailer. The load bar support system has been redesigned to extensively lower the overall bar height.

Now just 22in from the ground, loading and unloading heavy kayaks is simplified and made much safer. These galvanized marine grade trailers can be backed down a boat ramp in order to launch directly into the water. Featuring submersible LED lighting and 78in load bars for up to six kayaks.

This 800 lb. load rated trailer is DOT and Transport Canada approved. Assembles in approximately three to four hours with standard tools. Five Year Warranty.

Features of Malone Auto Racks MicroSport Low Bed Trailer

• Pre-assembled hubs for a clean and simple installation

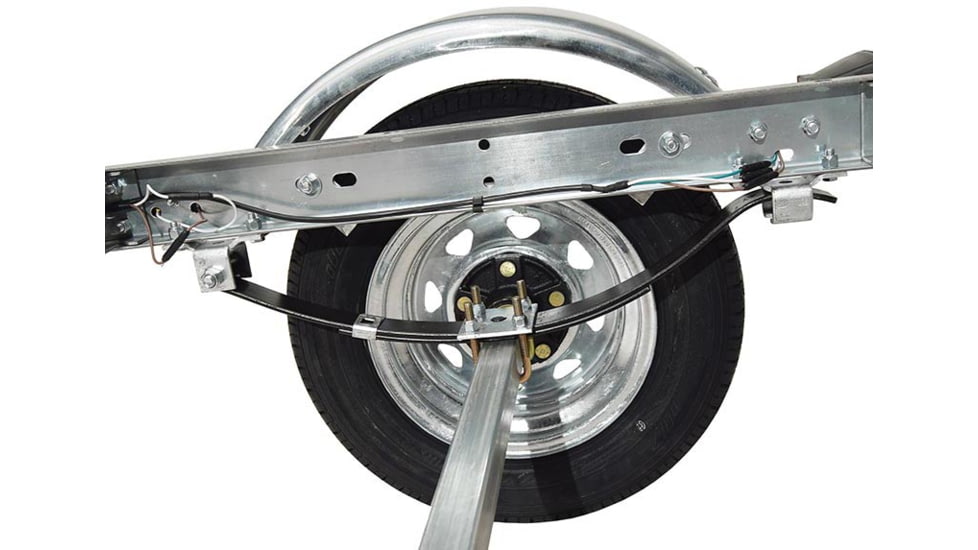

• 12in galvanized wheels with marine grade sealed bearings

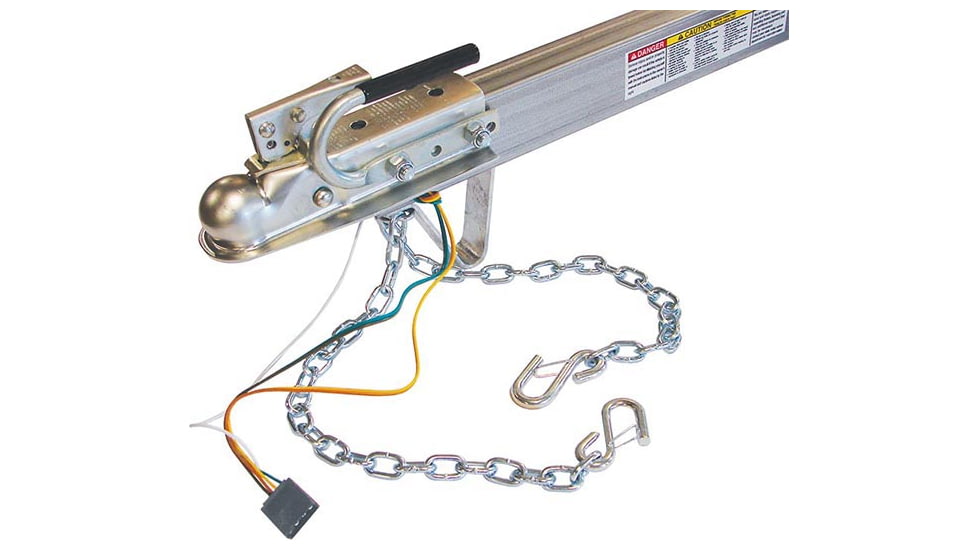

• Reinforced steel tongue can transport boats up to 20ft in length
• 78in steel, 1 1/4in square load bars featuring d-ring tie-downs
• 11 gauge pre-galvanized steel construction for years of service
• Five Year Limited Warranty
• Load Capacity: 20ft canoe or kayak
• Dimensions: 13ft 3in (length)
• Width (Without crossbars): 55in
• Frame Width Assembled (Width within Fenders): 40in
• Weight (Without accessories): 197 lb
• Frame: Marine grade galvanized steel
• Required Ball Size for Vehicle Attachment: 2in
• Mounting Height for Ball from Ground: 18in
• Recommended Tire Pressure: 35 to 40 PSI
• Tongue Weight (Unloaded): 25 lb
• Cross Bar Spread (Adjustable): 44in - 63in
• Height of Cross Bars from Ground: 22in

Package Contents:

• Malone Auto Racks MicroSport Low Bed Trailer
• 2 12in High Speed Wheels
• Reinforced Steel Tongue

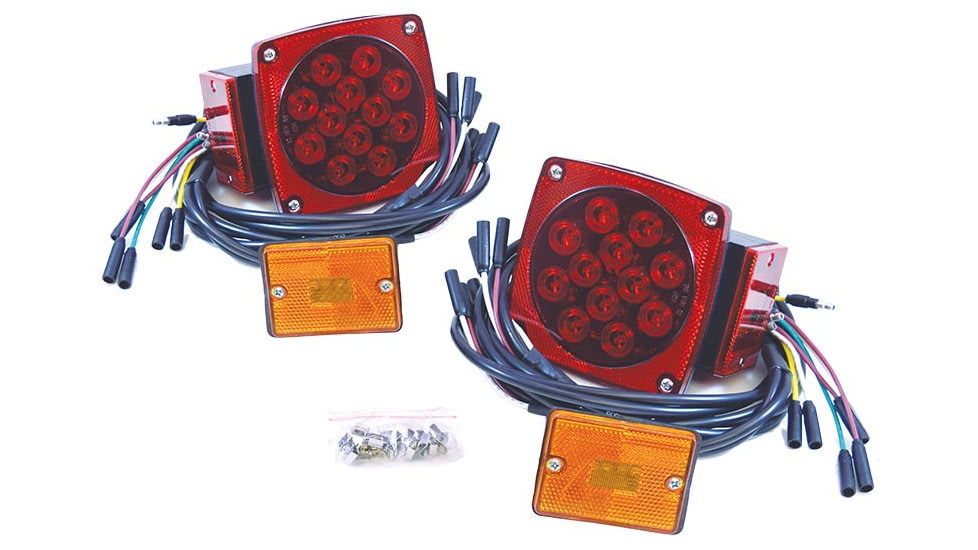

• DOT Approved LED Lighting
• Pre-Tested Electrical System
• Pre-Fitted Chassis Components
• Instruction Manual & Registration Documentation

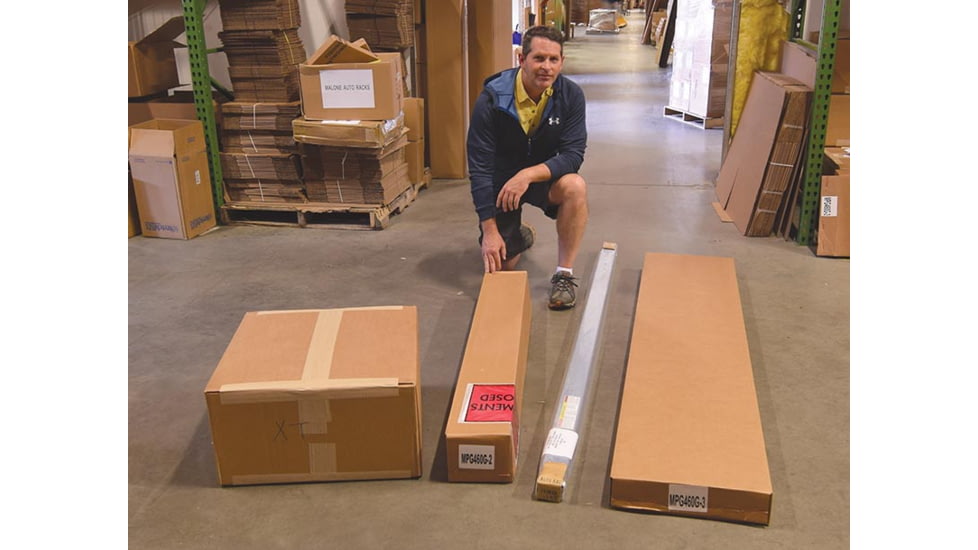

• Total Shipment: 4 Cartons
