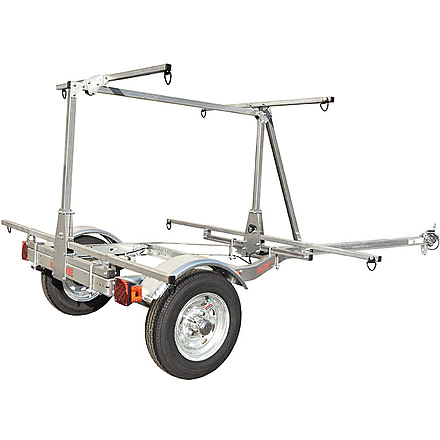

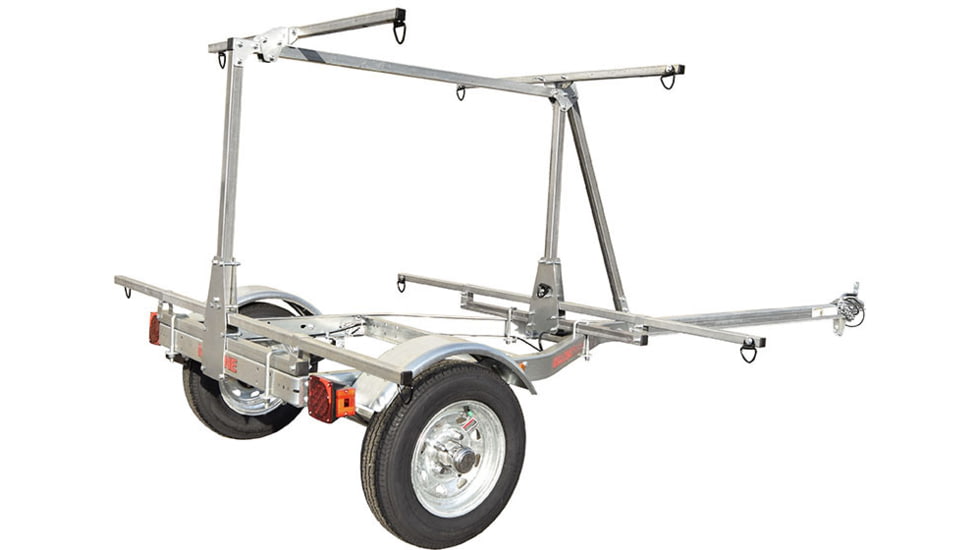

Malone Auto Racks MicroSport LowBed 2 Boat Trailer w/2nd Tier MPG464-LBT,

The MPG464-LBT MicroSport LowBed is a modified Base Trailer fitted with a LB 2nd Tier Kit. The trailerfts bottom load bar supports have been redesigned to extensively lower the bar height.

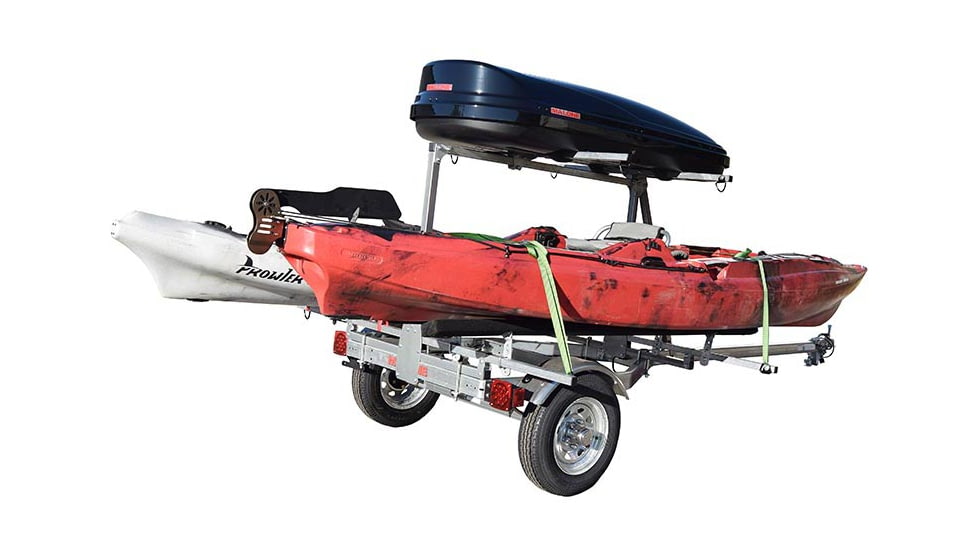

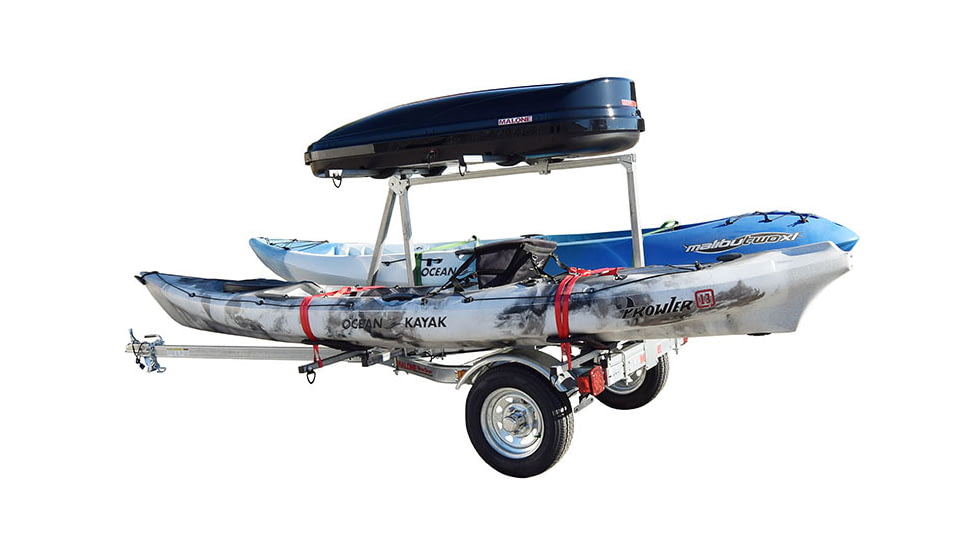

Now just 22in from the ground, the lower bars make loading and unloading heavy kayaks easier and much safer. These galvanized marine grade trailers can be backed down a boat ramp in order to launch directly into the water. Featuring submersible LED lighting and 78in lower load bars for up to six kayaks.

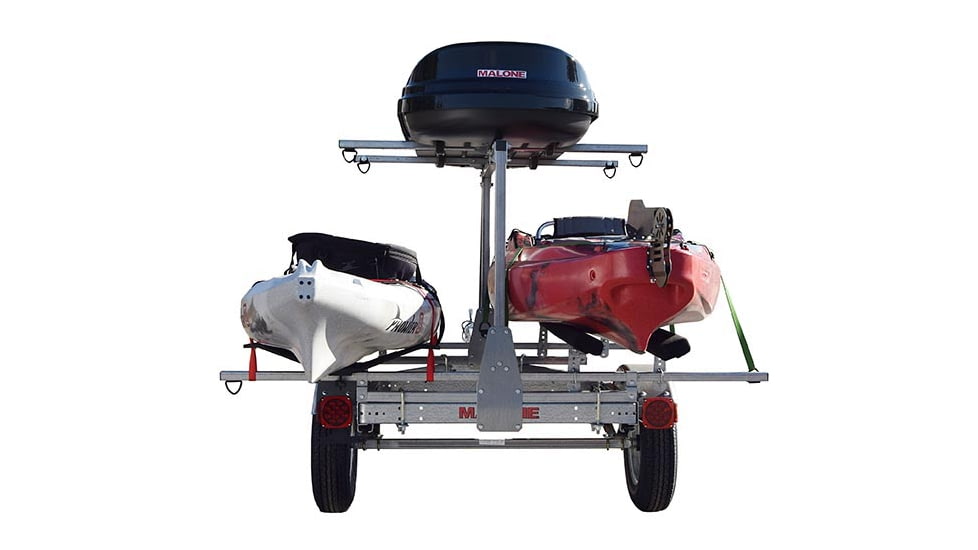

The 2nd Tier has a 100 lb. load rating and provides transport for additional gear. The 50in upper load bars provide a comfortable height (58in) to access a cargo box, bike or boat.

This 800 lb. load rated trailer is DOT and Transport Canada approved. Assembles in approximately three to four hours with standard tools. Five Year Warranty

Features of Malone Auto Racks MicroSport LowBed 2 Boat Trailer w/2nd Tier

• Pre-assembled hubs for a clean and simple installation
• 12in galvanized wheels with marine grade sealed bearings

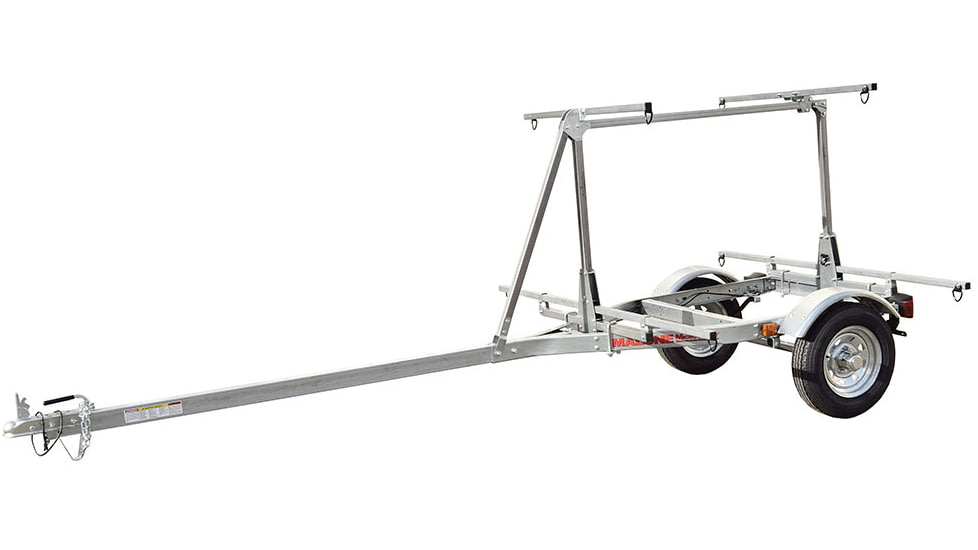

• Reinforced steel tongue can transport boats up to 20ft in length
• 78in steel, 1 1/4in square load bars featuring d-ring tie-downs
• 11 gauge pre-galvanized steel construction for years of service
• Five Year Limited Warranty
• Load Capacity: 20ft canoe or kayak
• Dimensions: 13ft 3in (length)
• Width (Without crossbars): 55in
• Frame Width Assembled (Width within Fenders): 40in
• Weight (Without accessories): 197 lb
• Frame: Marine grade galvanized steel

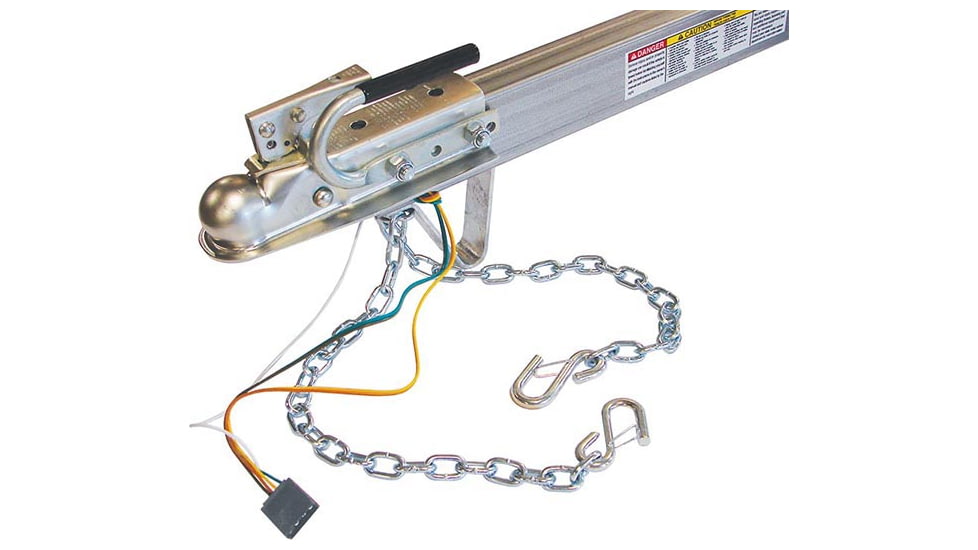

• Required Ball Size for Vehicle Attachment: 2in
• Mounting Height for Ball from Ground: 18in
• Recommended Tire Pressure: 35 to 40 PSI
• Tongue Weight (Unloaded): 25 lb
• Cross Bar Spread (Adjustable): 44in - 63in
• Height of Cross Bars from Ground: 22in

Package Contents:

• Malone Auto Racks MicroSport LowBed 2 Boat Trailer w/2nd Tier
• LB 2nd Tier w/ Load Bars
• 2 12in High Speed Wheels
• Reinforced Steel Tongue

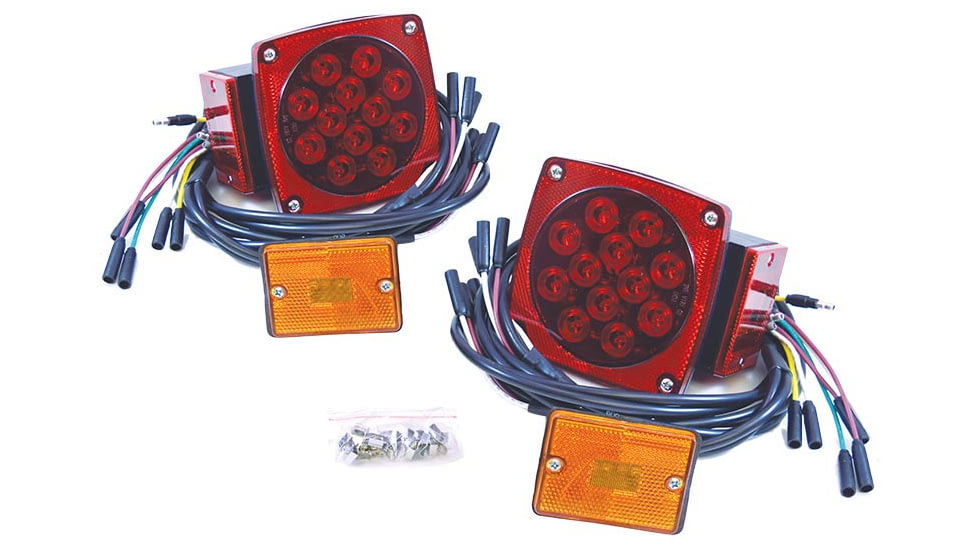

• DOT Approved LED Lighting
• Pre-Tested Electrical System
• Pre-Fitted Chassis Components
• Instruction Manual & Registration Documentation
