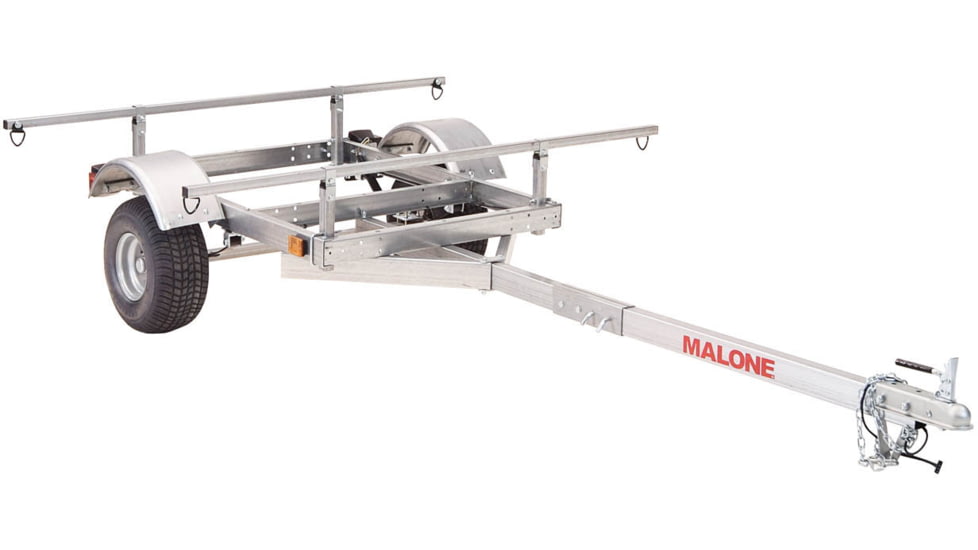

Malone Auto Racks XtraLight LowMax Sport Trailer, 78in MPG595,

The LowMax has a 600 lb capacity leaf spring suspension that delivers a smooth stable ride under full load. The 78in wide cross bars provide plenty of space for carriers & gear. With the bars positioned only 24in from the ground, loading and unloading heavy boats has never been easier. The 20in diameter by 8in wide pontoon-style tires have a maximum speed rating of 70 MPH which is perfect for most roadways.

The detachable tongue and rubber bumpers mounted to the rear cross member allow this trailer to be stored upright when not in use. Features include LED plug & play lights, D-Ring tie-downs, tongue lift handle and 2in receiver. Proudly built from high grade galvanized steel for years of dependable service. All workmanship & parts guaranteed with a Five-Year Limited Warranty. Assembles in 4-5 hours with normal shop tools.

Features of Malone Auto Racks XtraLight LowMax Sport Trailer, 78in

• Marine grade galvanized steel frame
• DOT & Transport Canada approved
• L.E.D. plug & play lights
• Galvanized steel fenders
• 78in steel, 1 1/4in square load bars featuring d-ring tie-downs
• Detachable tongue to lower storage space requirements
• Tongue lift handle
• Rubber bumpers for vertical storage
• Five Year Limited Warranty
• Load Capacity: 17ft canoe or kayak
• Wheels & Tires: Powder coated 5-lug wheels with 20in diameter x 8in wide pontoon-style tires
• Maximum Speed Rating: 70 MPH
• Length: 11ft 3in
• Length (Tongue Detached): 7ft 4in
• Width (Without Crossbars): 60in
• Frame Width Assembled (Width within Fenders): 40in
• Weight (Without accessories): 206 lb
• Frame: Marine grade galvanized steel
• Required Ball Size for Vehicle Attachment: 2in
• Mounting Height for Ball from Ground: 16in
• Recommended Tire Pressure: 40 PSI
• Tongue Weight (Unloaded): 37 lb
• Cross Bar Spread (Adjustable): 36in - 49in
• Height of Cross Bars from Ground: 24in

Package Contents:

• Malone Auto Racks XtraLight LowMax Sport Trailer, 78in
• 2 20in Diameter 8in Wide Pontoon-Style Tires & Wheels
• Reinforced 2pc Steel Tongue
• Lift Handle
• 2 78in Load Bars with Frame Brackets & Supports
• DOT & Transport Canada Approved L.E.D. Lighting
• Pre-Tested Electrical System
• Pre-Fitted Chassis Components
• Instruction Manual & Registration Documentation
