Ocean Signal SafeSea E100 EPIRB 700S-00766,

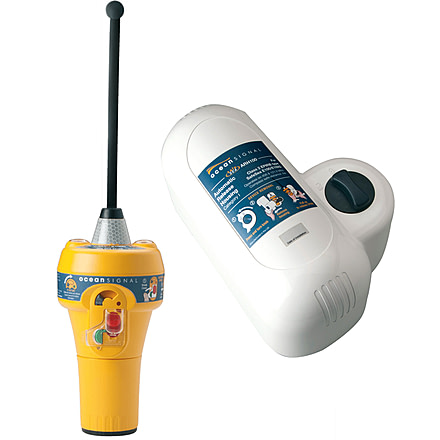

SafeSea E100 EPIRB - Cat1 w/Auto-Release Housing

Features of Ocean Signal SafeSea E100 EPIRB

• Manual bracket manual release housing and float free housing options
• Extreme battery life even at low temperatures
• In excess of 96 hours operation
• User replaceable batteries with five year replacement interval
• Intuitive operating controls protected from accidental activation
• Meets or exceeds all International standards
• Class 2 EPIRB (-20C +55C) for general use
• Non hazardous battery
• SafeSea EPIRBs operate in the 406MHz satellite band monitored by Cospas-Sarsat the international satellite operator ensuring a signal can be located wherever it is activated around the globe.SafeSea EPIRBs are also fitted with a 121.5MHz homing beacon and a high brightness LED strobe light for fast on-scene location.With the SafeSea EPIRB battery operating life being the highest in the industry an Ocean Signal EPIRB keeps rescue services updated with your location for longer.406MHz Satellite TransmitterFrequency: 406.037MHz
• Tolerance: +/-1kHz
• Stability: 2ppb/100ms
• Output Power: 5W (nominal)
• Modulation: Phase +/-1.1radians (peak)
• Emission Designator: 16K0G1D
• Encoding: Bi-phase L
• Data Rate: 400bps
• Duration: 520ms
• Low Duty Cycle Strobe LightLight Type: Dual high intensity LEDs
• Light Color: White
• Output Power: >0.75candela
• Flash Rate: 20-30 flashes per minute
• Battery Type Lithium PrimaryChemistry: Manganese Dioxide (LiMnO2)
• Operational Life (E100G Class 2 with LB2E): typically 96hours
• Replacement Interval: 5years
• 121.5MHz Homing BeaconFrequency: 121.5MHz
• Stability: +/-50ppm
• Output Power: 25-100mW PERP
• Modulation: Swept Tone AM
• Emission Designator: 3K20A3X
• Modulation Depth: 85-100%
• Sweep Range: 400Hz 1300Hz
• Duty Cycle: 35-55%
• EnvironmentalOperating Temperature Range: -20C to +55C
• Storage Temperature Range: -30C to +70C
• Automatic release depth: 4M (max)
• Waterproof: >10M at +20C
• Drop into water: 20M
• Standards and ApprovalsCospas-Sarsat: T.001 / T.007
• IMO regulations: A.662(16); A.694(17); A.810(19)1; A.814(19)
• International Standards Radio: IEC61097-2
• International Standards EMC: IEC60945
• European approval GMDSS: Marine Equipment Directive A.1/5.6
• USA Standards RTCM: SC110
• USA Standards FCC: CFR47 part 80.1101

Package Contents:

• Ocean Signal SafeSea E100 EPIRB
