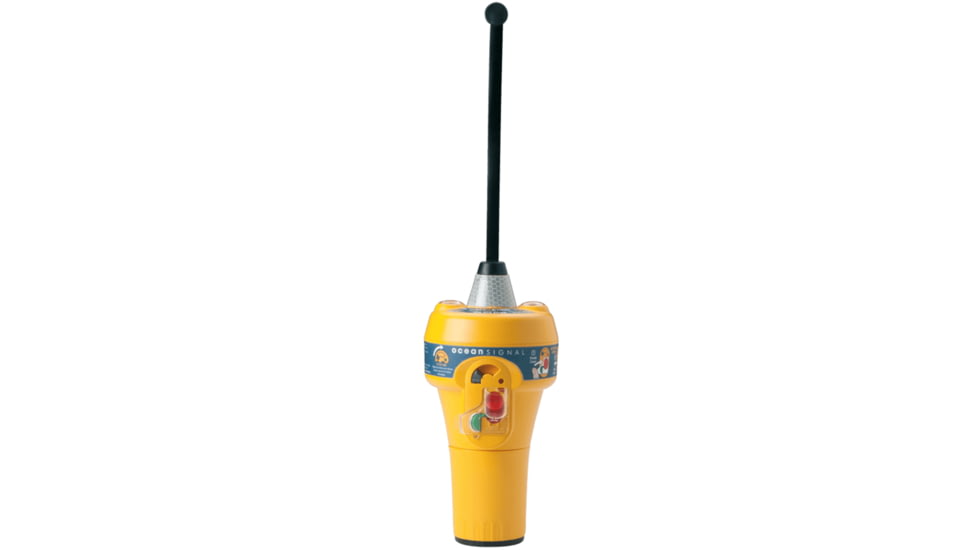

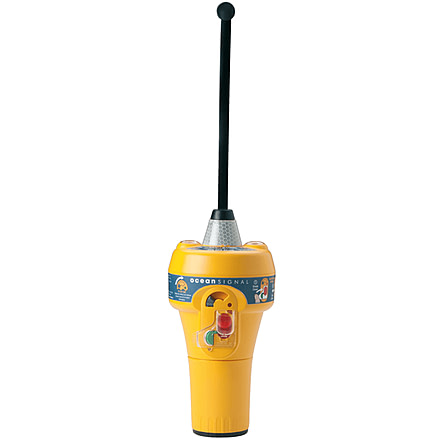

Ocean Signal SafeSea E100G GPS EPIRB 700S-00610,

SafeSea E100G GPS EPIRB

Features of Ocean Signal SafeSea E100G GPS EPIRB

• E100G EPIRB incorporates a state of the art 50 channel GPS receiver for fast and accurate position acquisition
• Manual bracket manual release housing and float free housing options
• Extreme battery life even at low temperatures
• In excess of 96 hours operation
• User replaceable batteries with five year replacement interval
• Intuitive operating controls protected from accidental activation
• Meets or exceeds all International standards
• Class 2 EPIRB (-20C +55C) for general use
• Non hazardous battery
• SafeSea EPIRBs operate in the 406MHz satellite band monitored by Cospas-Sarsat the international satellite operator ensuring a signal can be located wherever it is activated around the globe.SafeSea EPIRBs are also fitted with a 121.5MHz homing beacon and a high brightness LED strobe light for fast on-scene location.The SafeSea E100G EPIRB benefits from a dedicated built-in GPS which sends a highly accurate position greatly reducing search time.With the SafeSea EPIRB battery operating life being the highest in the industry an Ocean Signal EPIRB keeps rescue services updated with your location for longer.406MHz Satellite TransmitterFrequency: 406.037MHz
• Tolerance: +/-1kHz
• Stability: 2ppb/100ms
• Output Power: 5W (nominal)
• Modulation: Phase +/-1.1radians (peak)
• Emission Designator: 16K0G1D
• Encoding: Bi-phase L
• Data Rate: 400bps
• Duration: 520ms
• Low Duty Cycle Strobe LightLight Type: Dual high intensity LEDs
• Light Color: White
• Output Power: >0.75candela
• Flash Rate: 20-30 flashes per minute
• Battery Type Lithium PrimaryChemistry: Manganese Dioxide (LiMnO2)
• Operational Life (E100G Class 2 with LB2E): typically 96hours
• Replacement Interval: 5years
• 121.5MHz Homing BeaconFrequency: 121.5MHz
• Stability: +/-50ppm
• Output Power: 25-100mW PERP
• Modulation: Swept Tone AM
• Emission Designator: 3K20A3X
• Modulation Depth: 85-100%
• Sweep Range: 400Hz 1300Hz
• Duty Cycle: 35-55%
• GPS Receiver (E100G only)Sensitivity Cold Start: -146dBm
• Sensitivity Re-acquisition: -162dBm
• Satellites channels tracked: 50
• GPS Antenna: Microstrip patch
• EnvironmentalOperating Temperature Range: -20C to +55C
• Storage Temperature Range: -30C to +70C
• Automatic release depth: 4M (max)
• Waterproof: >10M at +20C
• Drop into water: 20M
• Standards and ApprovalsCospas-Sarsat: T.001 / T.007
• IMO regulations: A.662(16); A.694(17); A.810(19)1; A.814(19)
• International Standards Radio: IEC61097-2
• International Standards EMC: IEC60945
• European approval GMDSS: Marine Equipment Directive A.1/5.6
• USA Standards RTCM: SC110
• USA Standards FCC: CFR47 part 80.1101

Package Contents:

• Ocean Signal SafeSea E100G GPS EPIRB
