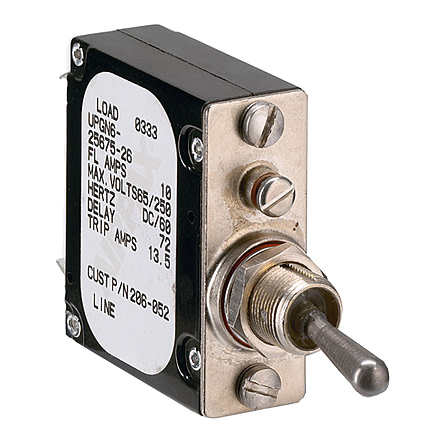

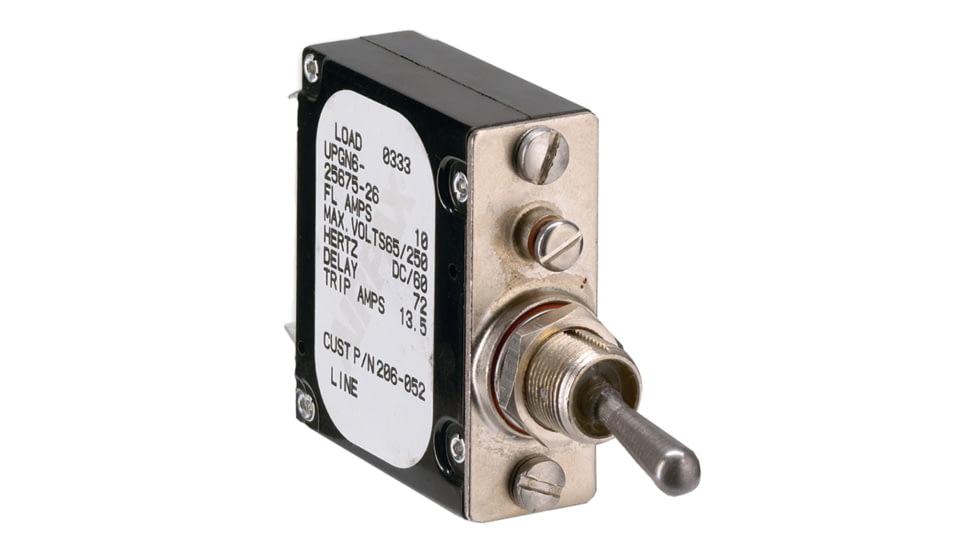

Paneltronics Breaker 20 Amps A-Frame Magnetic Waterproof 206-054S,

Panel Seal/Waterproof "A" Frame Magnetic Circuit Breakers

Branch AC or DC circuit breaker for Paneltronics electrical distribution panels

Meets all American Boat and Yacht Council (ABYC) Standards for non ignition protected circuit breakers

UL Recognized (UL 1077) for use in the USA and CSA Certified for use in Canada

Trip free (ABYC E-11.10.1.5.4 and E-11.10.2.1.1)

Manual reset (ABYC E-11.10.1.5.6. and E-11.10.2.1.1)

Speficiations:

Handle Color: Metal with Silicon rubber seal

Maximum Amperage: 50 Amps

Maximum Voltage/AIC: 32 VDC/2500 Amps with no Back-up fuse (ABYC E-11.10.1.5.5)

Rated Switch Cycles: Rated Switch Cycles 10000 actuations at rated current and voltage

Electrical Hardware: Screw 10-32 x 3/8" pan combo head (P/N 197-188)

Mounting Hardware: Hex nut 1/2-32 (supplied with circuit breaker) Lockwasher 1/2" internal tooth (supplied with circuit breaker)

Optional Boot: Black silicone rubber (P/N 048-015)

Package Contents:

• Paneltronics Breaker 20 Amps A-Frame Magnetic Waterproof
