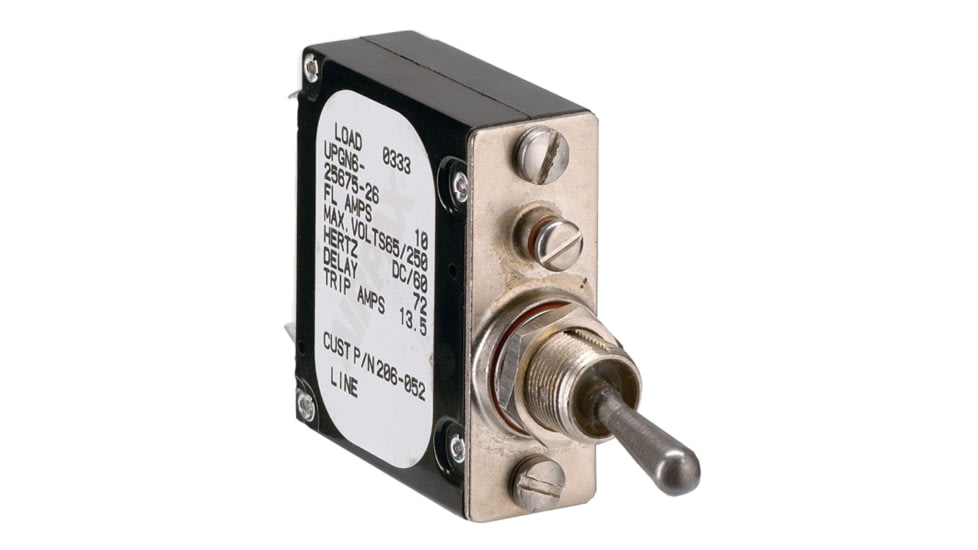

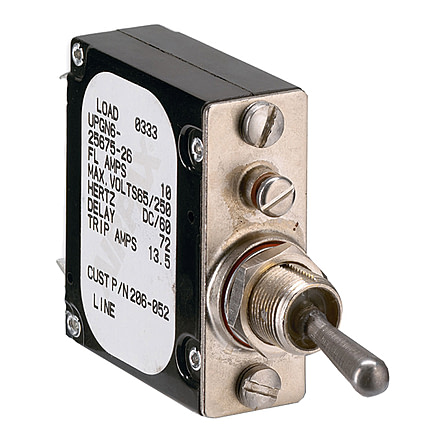

Paneltronics Breaker 5 Amps A-Frame Magnetic Waterproof 206-051S,

Panel Seal/Waterproof "A" Frame Magnetic Circuit Breakers

Branch AC or DC circuit breaker for Paneltronics electrical distribution panels

Meets all American Boat and Yacht Council (ABYC) Standards for non-ignition protected circuit breakers

UL Recognized (UL 1077) for use in th USA and CSA Certified for use in Canada

Trip free (ABYC E-11.10.1.5.4 and E-11.10.2.1.1)

Manual reset (ABYC E-11.10.1.5.6 and E-11.10.2.1.1)

Handle Color - Metal with silicon rubber seal

Maximum Aperage - 50 Amps

Maximum Voltage/AIC - 32 VDC/2500 amps with no back-up fuse (ABYC E-11.10.1.5.5)

Rated Switch Cycles - 10000 actuations at rated current and voltage

Electrical Hardware - Hex nut 1/2-32 (supplied with circuit breaker); Lockwasher 1/2" internal tooth (supplied with circuit breaker)

Optional Boot - Black silicone rubber (P/N 048-015)

Package Contents:

• Paneltronics Breaker 5 Amps A-Frame Magnetic Waterproof
