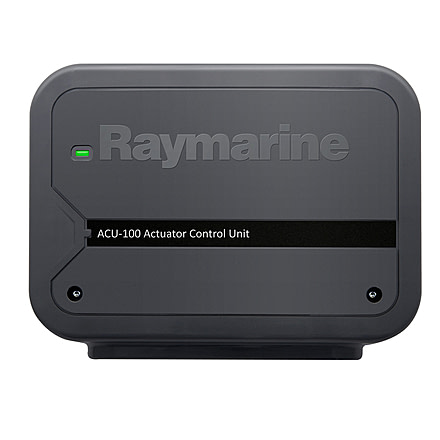

Raymarine ACU-100 Actuator Control Unit E70098, Color: Black, w/ Free S&H

Autopilot Control Unit (ACU)

The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Choose the ACU that fits your steering system type.

Drive Current Output

Maximum continuous 7 Amps at supply voltage

Drive Clutch Output

No clutch connection

Connections

Rudder reference sensor

Power

Drive motor

Ground

Nominal supply voltage

12 V

Operating voltage range

10.8V to 15.6V dc

Power Consumption (standby) - Main Power Supply

300 mA (12V)

Power Consumption (standby) - SeaTalkng Power Supply

No power supply to SeaTalkng

SeaTalkng LEN (Load Equivalency Number)

1

SeaTalkng Power Out

No power supply to SeaTalkng

Data Connections

SeaTalkng

Installation Environment

Operating Temperature: -20C to +55C (-4F to +131F)

Storage Temperature: -30C to +70C (-22F to +158F)

Relative Humidity: MAX 93%

Waterproof rating

Connector Panel: IPX2

Drive Electronics: IPX6

Dimensions (W x H x D)

180mm x 140mm x 52mm (7.1 in x 5.5 in x 2.0 in)

Weight

0.6 kg (1.32lbs)

Conformance

Europe: 2004/108/EC

Australia and New Zealand: C-Tick Compliance Level 2

Specifications for Raymarine ACU-100 Actuator Control Unit:

Package Contents:

• Raymarine ACU-100 Actuator Control Unit
